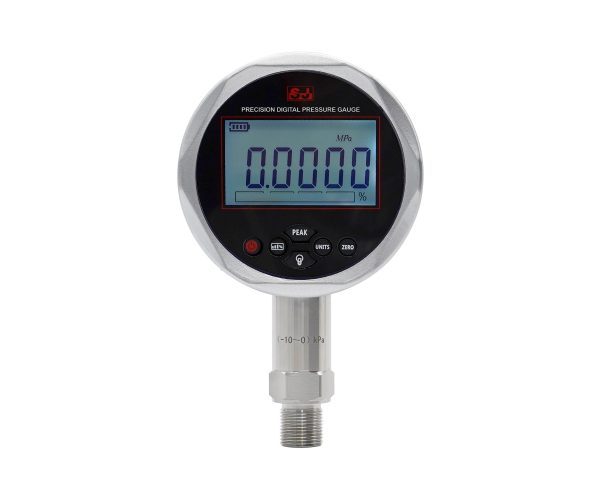

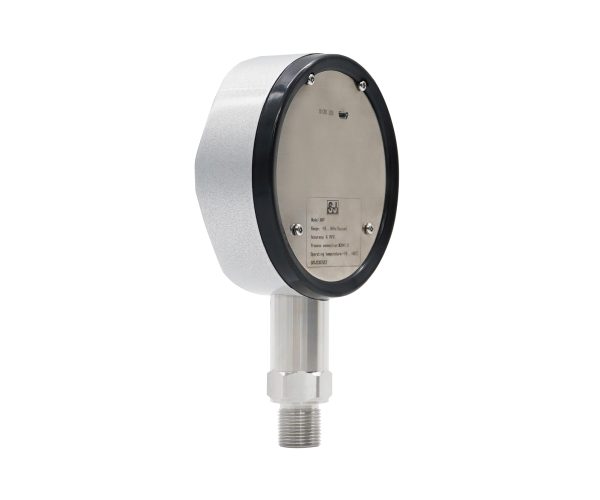

Digital Pressure Gauge, High Precision
- Accuracy up to 0.025% F.S., ideal for instrument calibration
- Regulated by the equipment from international, industry-leading calibration companies: Mensor and GE
- Built-in lithium battery, which allows charging during use (Micro-B)
- Responsive after-sales service / Customizable /
- High quality / One-year warranty
- The image is for reference; the actual product willbe based on your custom specifications.
Description

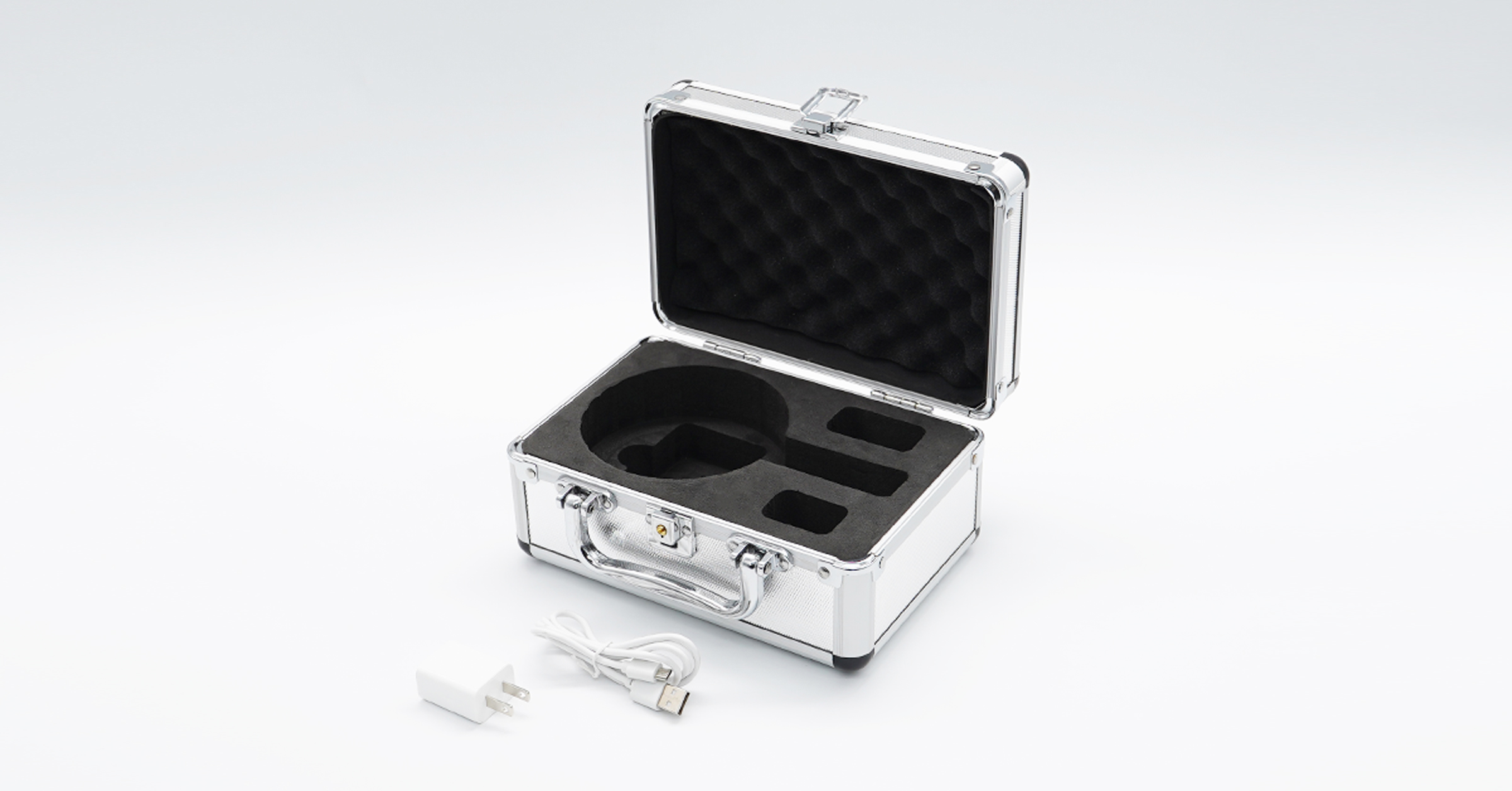

The MXP high-precision digital pressure gauge is designed for professional calibration and industrial measurement, offering accuracy levels up to ±0.025% F.S. and a fast response rate of 20–25 readings per second. It supports up to eight selectable pressure units and features a 5.5-digit LCD display with a backlight, peak reading function, bar-graph mode, and zeroing capability. Built with a 316L stainless-steel diaphragm, 304 SS process connection, and a durable nickel-plated aluminum housing, it ensures stable performance across a wide range of pressure scales—from 40 kPa to 100 MPa. Powered by a rechargeable 14500 lithium battery with Micro-B charging, the MXP allows charging during use and comes with a shock-proof carrying case and accessory kit, making it ideal for equipment calibration, pneumatic and hydraulic testing, and precision instrumentation work
Specifications
| Nominal size | 4" |
|---|---|
| Scale ranges | 0 ... 40 kPa to 0 ... 100 MPa, or other equivalent units of pressure, vacuum or compound |
| Pressure units | kg/cm2, mH2O, kPa, mmHg, psi, bar, pa, MPa (Up to 8 units can be switched, if not specified, the engineer will select it according to the pressure range) |
| Accuracy | ±0.1% F.S. ±0.05% F.S. ±0.025% F.S. |
| Process connection | 304 SS 1/2, 1/8, 1/4, 3/8, 1/2 NPT, G |
| Case/Ring | Aluminum alloy nickel plating |
| Panel | PVC |
| Diaphragm | 316L SS |
| Medium temperature | -20℃ ... 60℃ |

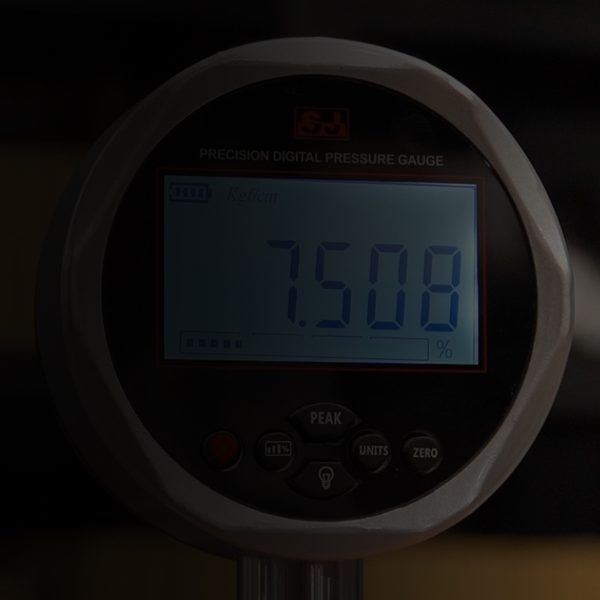

| Display | 5.5 digits LCD, switchable backlight button |
| Response time | 20 ... 25 times/sec |
| Power supply | 14500 rechargeable lithium battery, Micro-B charging port |
| Weight | 1.5 kg (including the box and accessories) |
Product Images
