Mechanical Pressure Wwitch, Compact
Model: MPS
- Automatically resetting switch design
- Wide pressure range, apply to multi work situation
- Application to air、water pressure control, Indoor air conditioner system or more…
- Responsive after-sales service / Customizable /
- High quality / One-year warranty
- The image is for reference; the actual product willbe based on your custom specifications.
Description
The MPS is a compact pressure switch-type controller featuring an automatic reset design and multiple switch options including SPST (NO/NC) and SPDT. Designed for broad applications such as air systems, water pressure control, and HVAC units, it offers a pressure range of 0.2–45 bar with a 5000 psi overpressure rating. The unit supports various process connections (1/8, 1/4 PT/PF/NPT/UNF) with brass or stainless-steel thread options, and is available in insert-pin or cable-out styles with customizable cable length and terminals. Compatible with AC120/240V and DC36V electrical loads, the MPS is ideal for compact installations requiring automatic pressure regulation.
Specifications
| Pressure range | 0.2 ... 45 bar |
|---|---|
| Overpressure | 5000 psi |
| Process connection | Brass, stainless steel 1/8, 1/4 PT, PF, NPT, UNF |
| Connector | 6.35×0.8・4.8×0.8 Wire terminal (customizable length & terminal) |
| Switch type | SPST(NO/NC)、SPDT |
| Reset pattern | Automatic/manual |
| Electronic parameter | 120VAC 6FLA, 34.8LRA 240VAC 3FLA, 15LRA 120/240VAC 375VA 36VDC 3A |
| Connection type | Insert / cable out |
| Ambient Temperature | Low Pressure: -30°C - 65°C High Pressure: -35°C - 120°C |

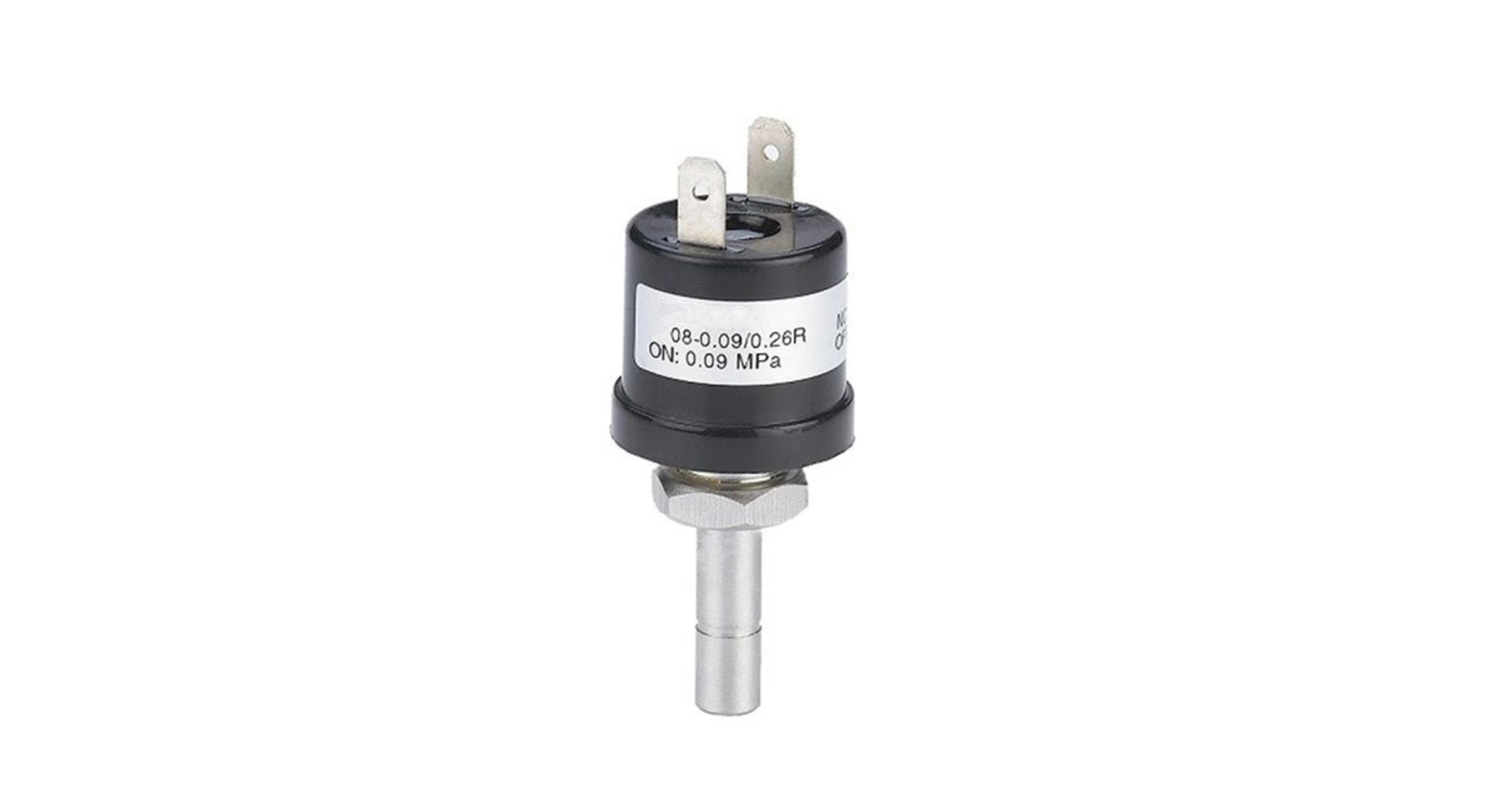

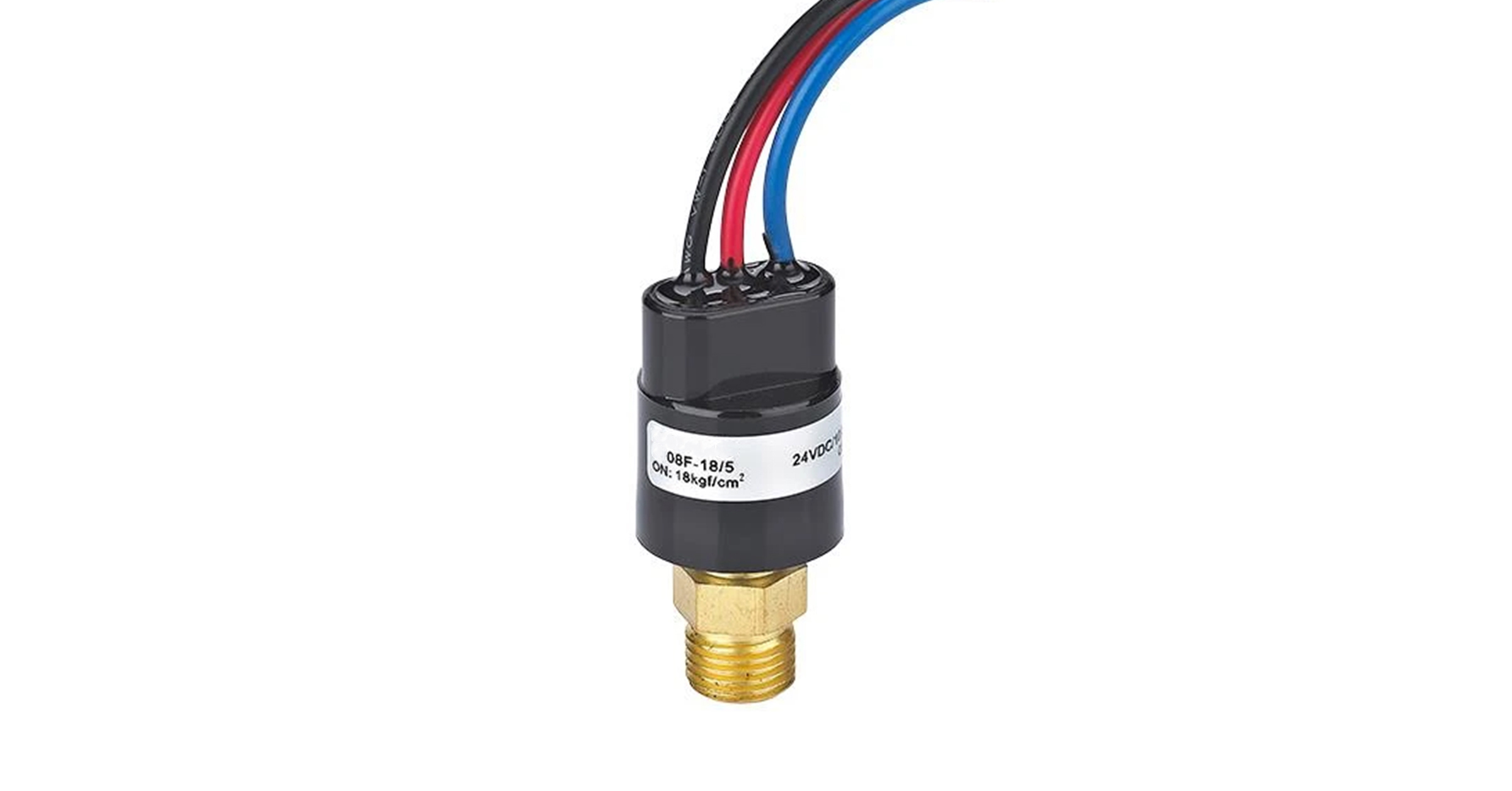

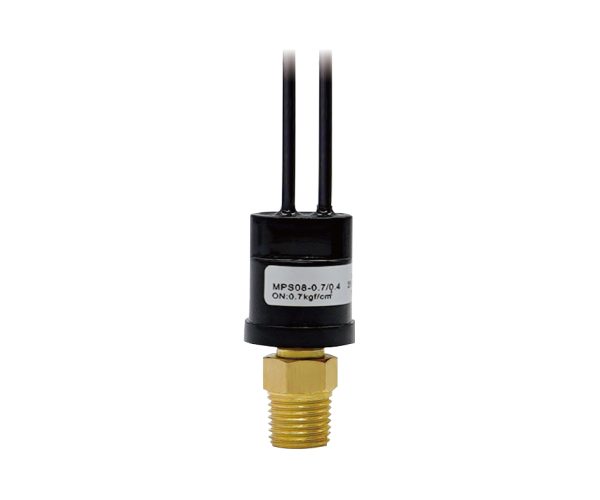

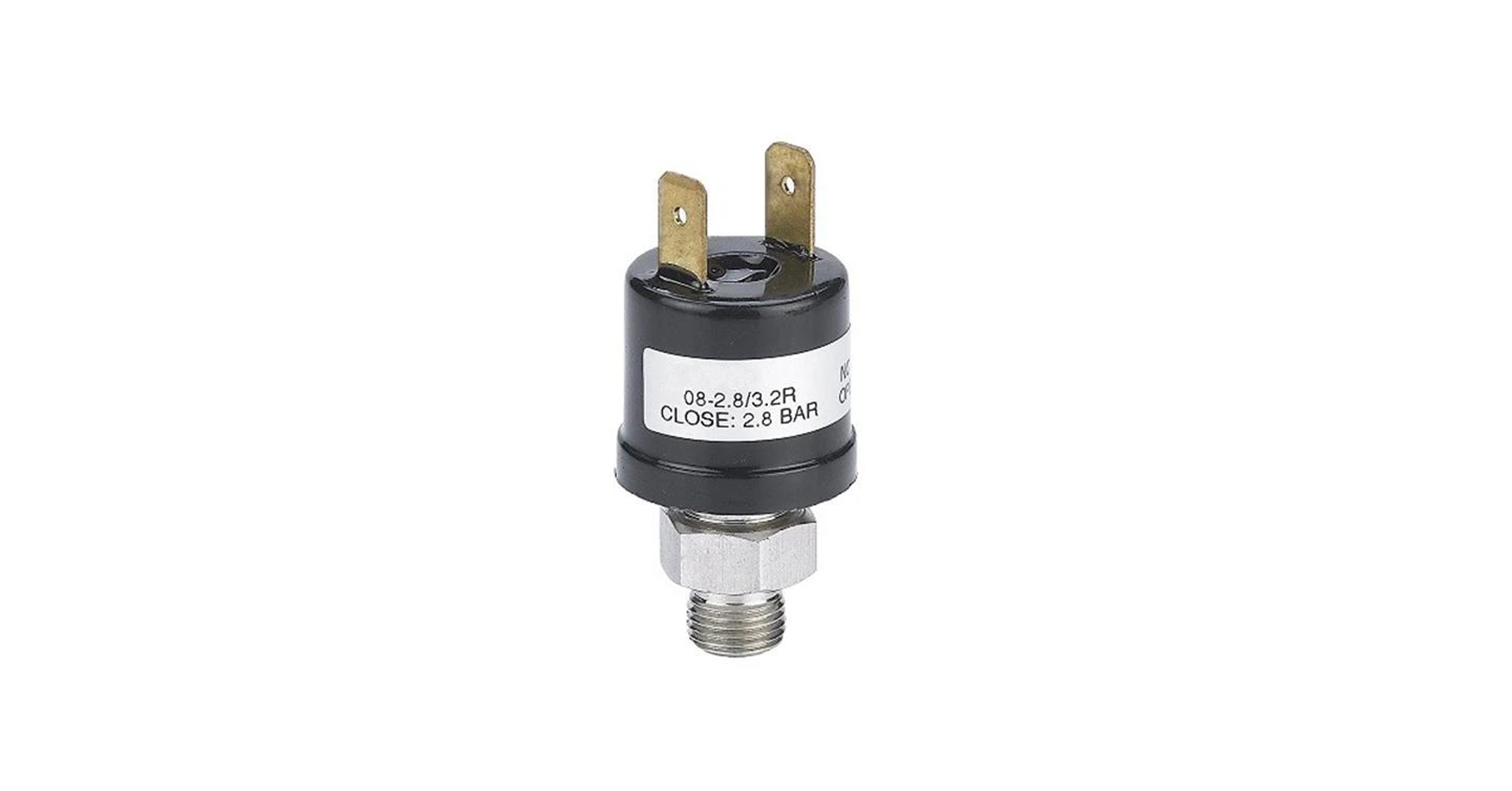

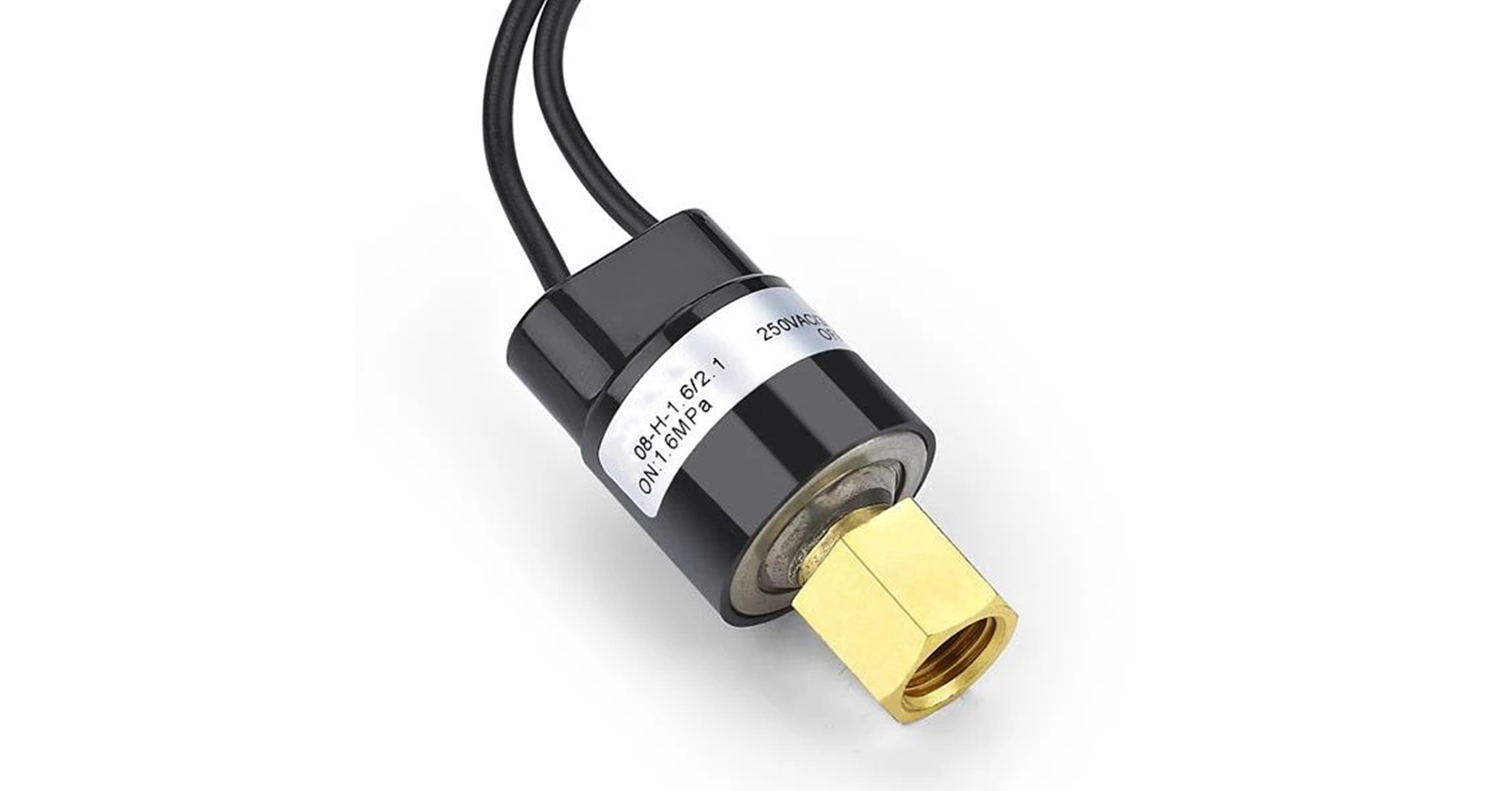

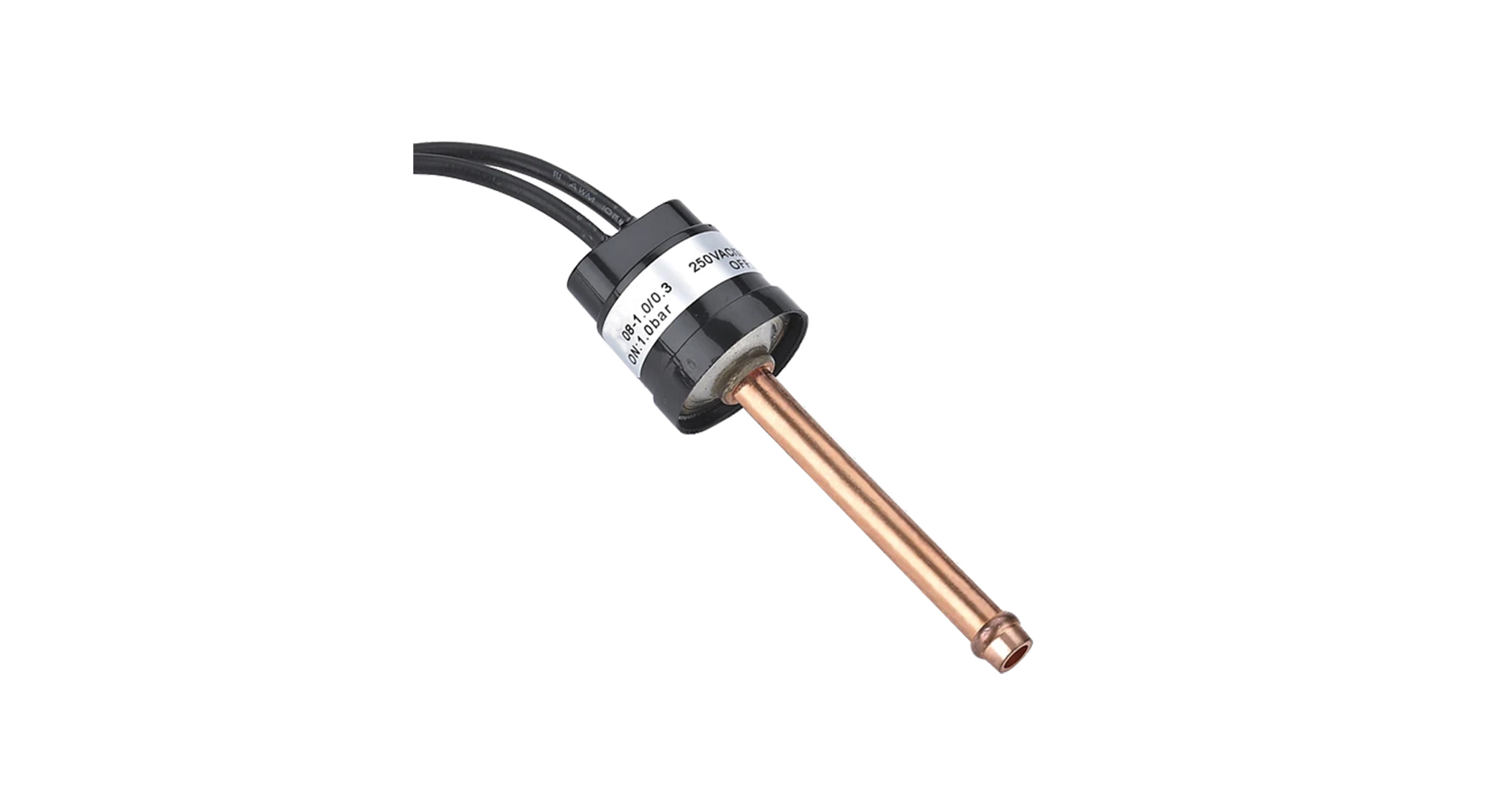

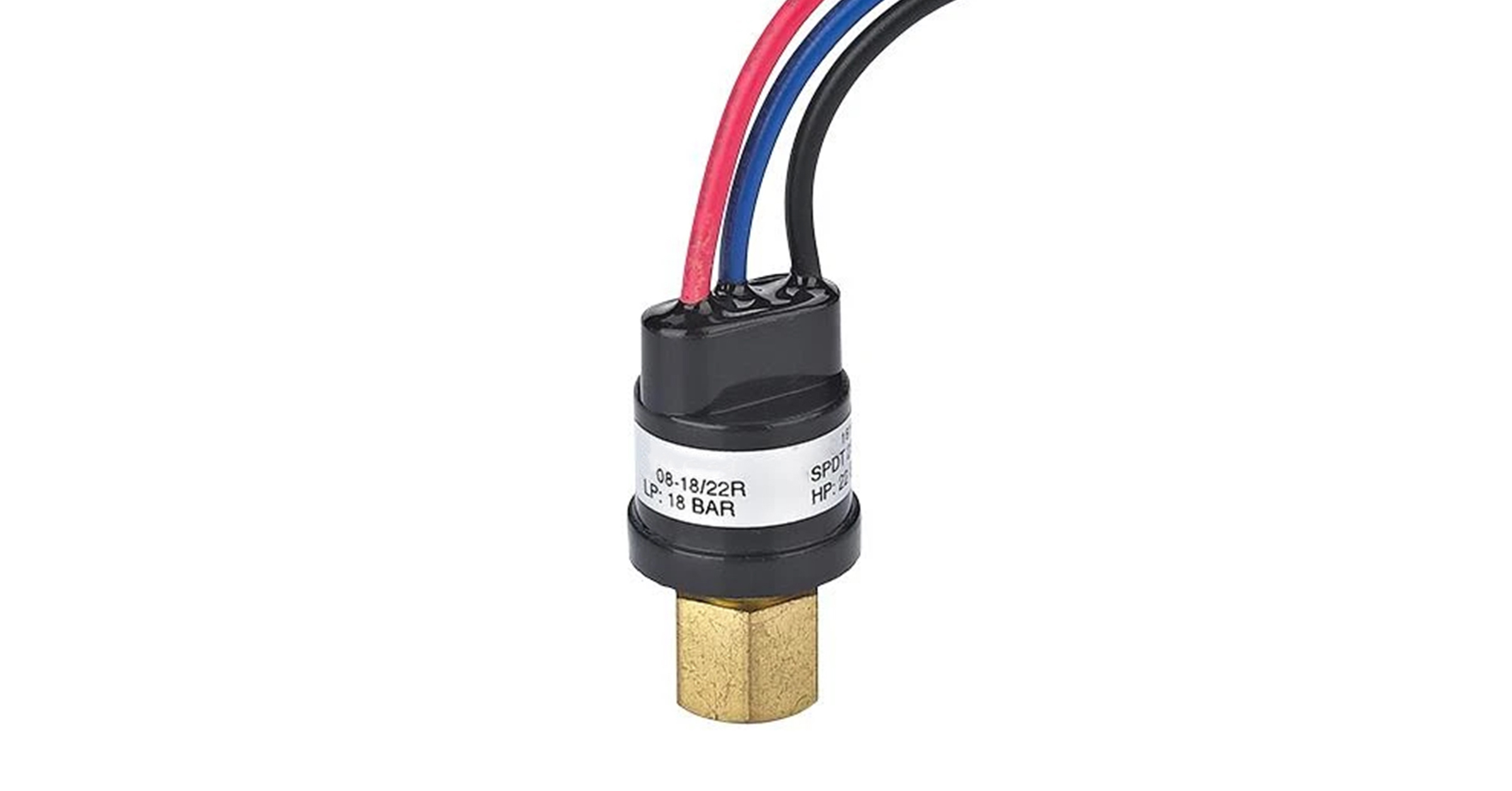

Product Images
