Twin-Temperature Thermometer
Model: DTHIT
- K-TYPE, PT100Ω or 4~20mA signal output for remote observation
- Made of stainless steel, resistant to high temperatures up to 600°C
- Suitable for remote monitoring and automatic control
- Responsive after-sales service / Customizable /
- High quality / One-year warranty
- The image is for reference; the actual product willbe based on your custom specifications.
Description
The DTHIT twin-temperature thermometer combines local analog indication with remote signal output, allowing real-time temperature reading and signal transmission at the same time. It supports K-type, PT100Ω, or 4–20 mA output signals and withstands temperatures up to 600°C. Constructed entirely of stainless steel, it offers excellent durability and heat resistance. With bottom mount, back mount, and adjustable angle options, DTHIT is well suited for process monitoring and automatic control in energy, chemical, equipment manufacturing, and high-temperature industrial applications.
Specifications
| Type | Bimetal, expansion |
|---|---|
| Connection location | Bottom mount, back mount, adjustable angle |
| Electrical connections | Cable outlet, Cable terminal box |
| Nominal size | 3", 4", 6" |
| Scale ranges | -50℃ ... 600℃ |
| Accuracy | CL 1.0 |
| Process connection | 304 SS, 316 SS 1/4, 3/8, 1/2, 3/4 PT, G, NPT, M |
| Sanitary end cap | 1", 1 1/2", 2", 2 1/2", 3", 4" |
| Connection designs | Union nut and loose threaded connection, compression fitting (sliding on stem), male thread, plain stem, male nut, union nut, sanitary end cap, flange on stem |
| Stem | 304 SS, 316 SS Length: Above 40 mm (without thread) can be customized Diameter: 8, 10, 12 mm |
| Case/Ring | 304 SS |
| Window | Glass |
| Dial | Aluminum alloy Black scale on white |
| Pointer | Black aluminum alloy |
| Accessories (options) | Thermowell, adjustable set pointer |
| Output signal | K-TYPE, PT100Ω, 4-20mA |
| Cable outlet length | 0.5 ... 3 M |
| Protection level | IP67 |

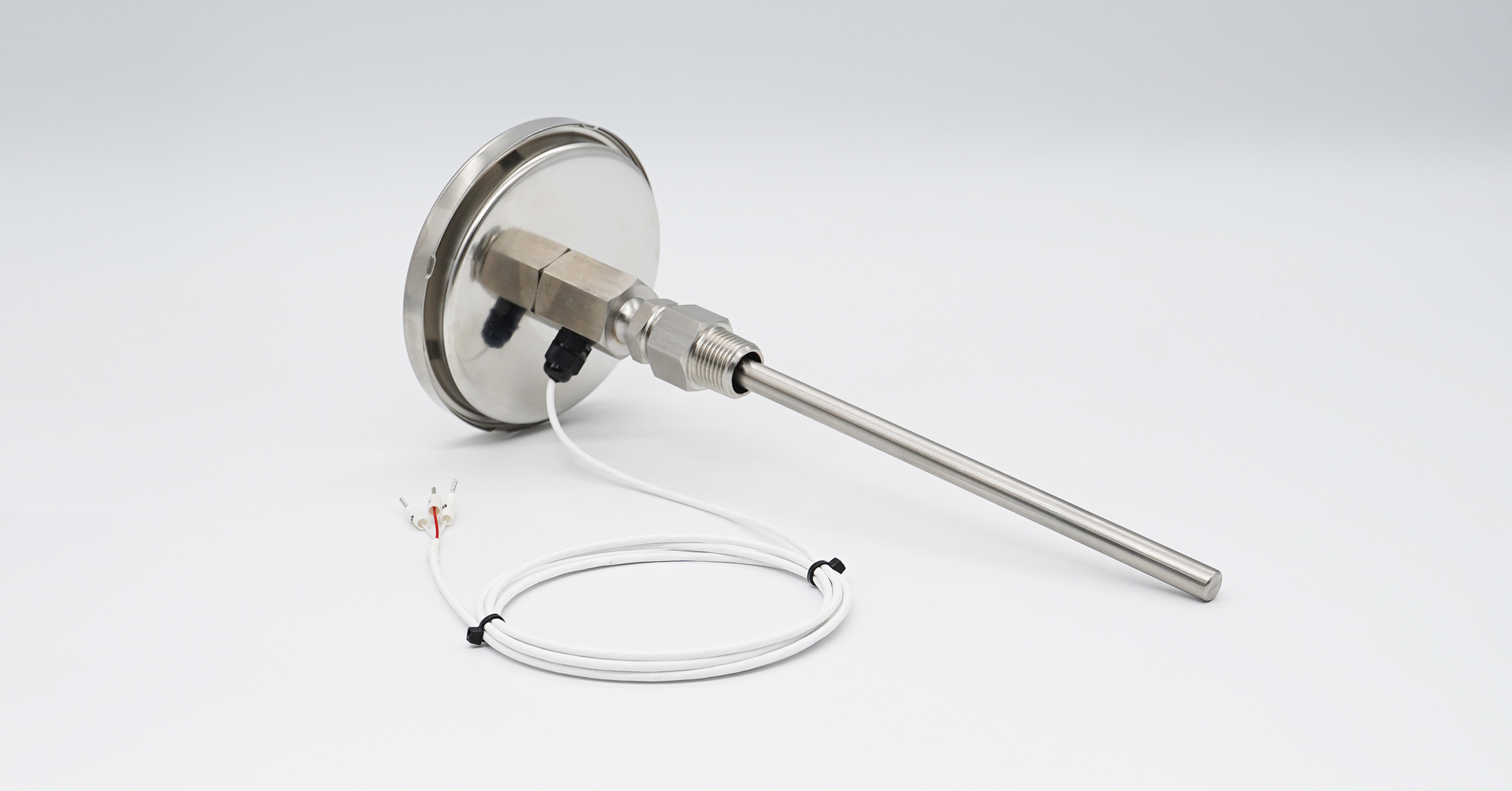

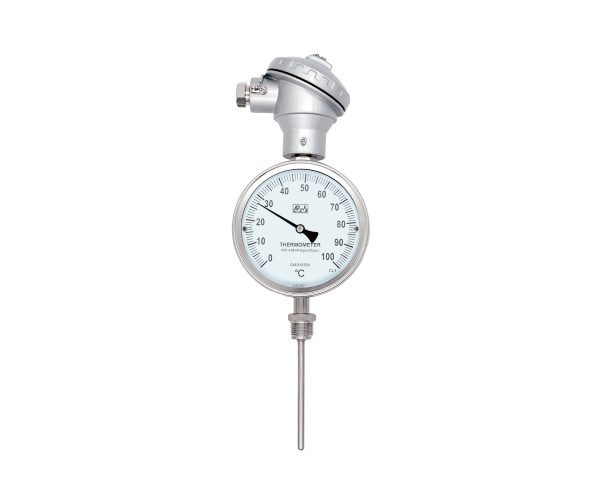

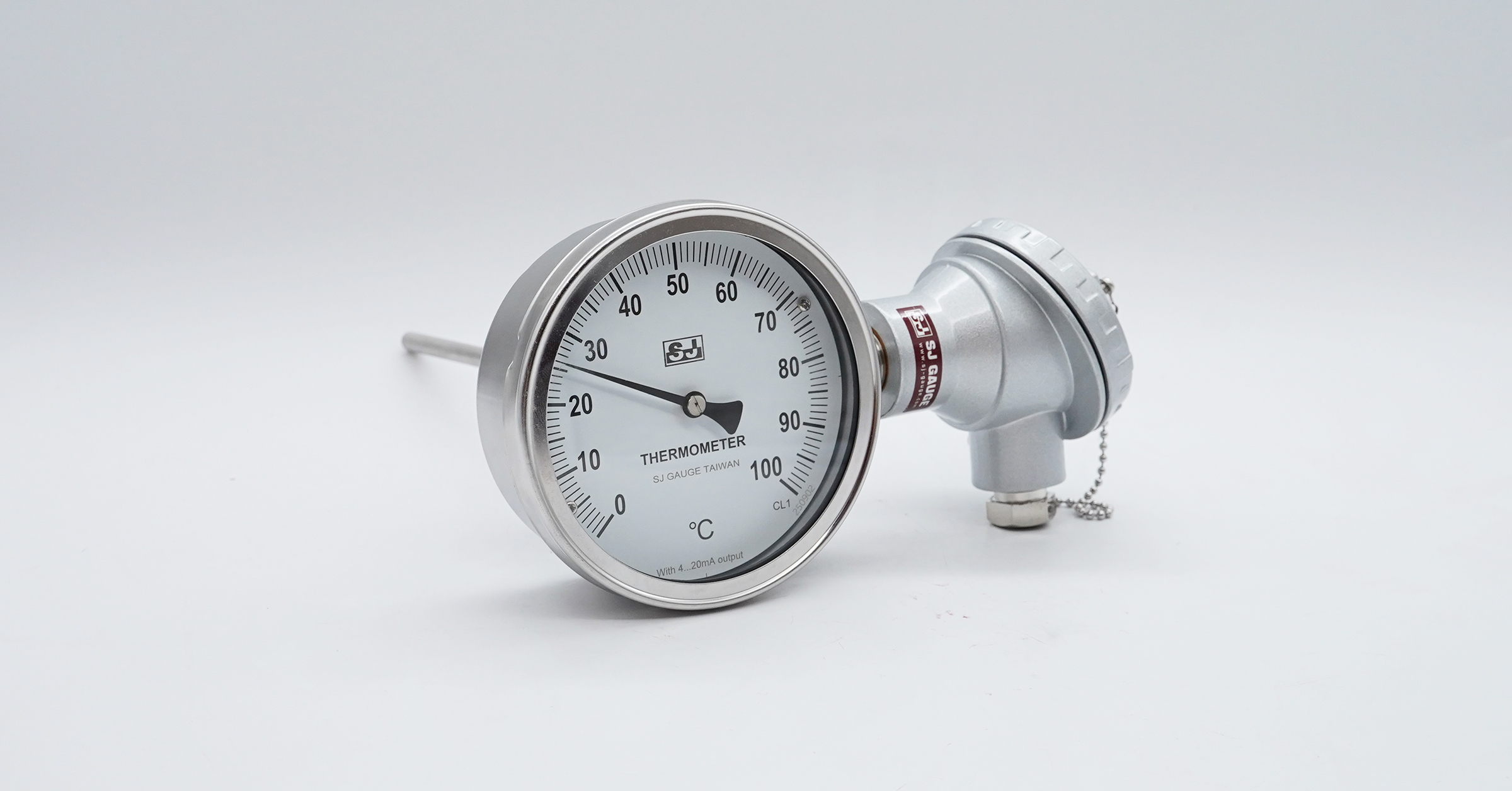

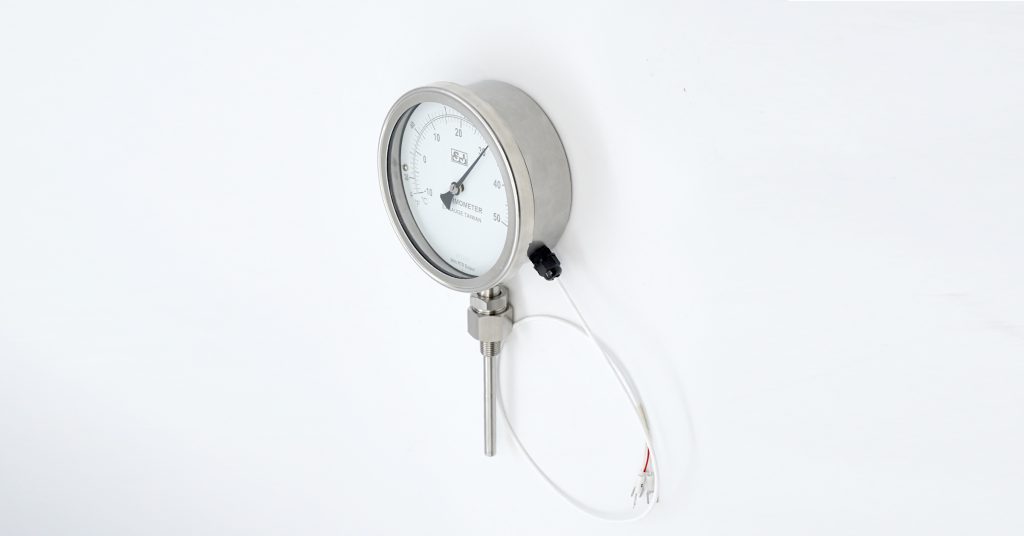

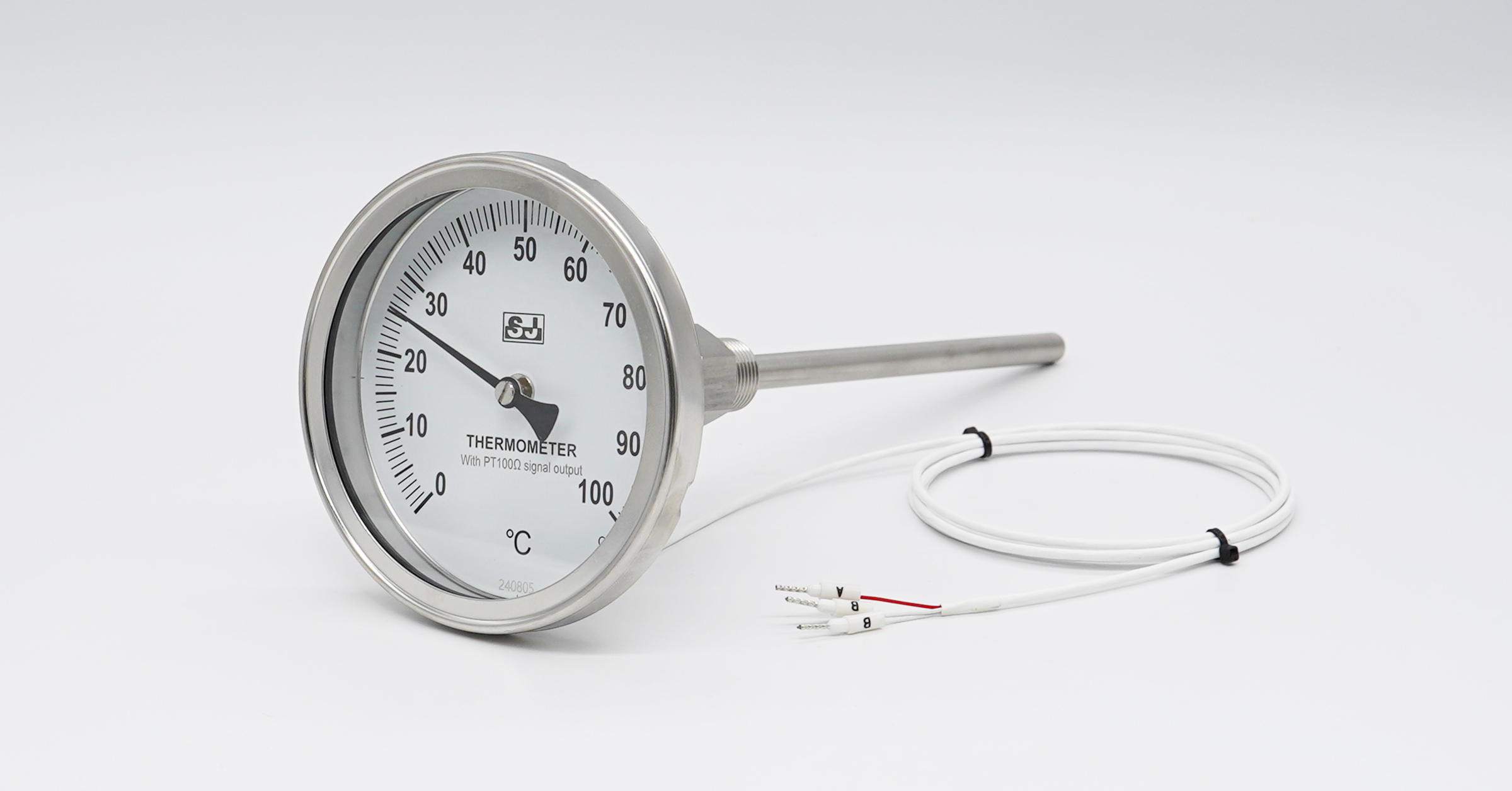

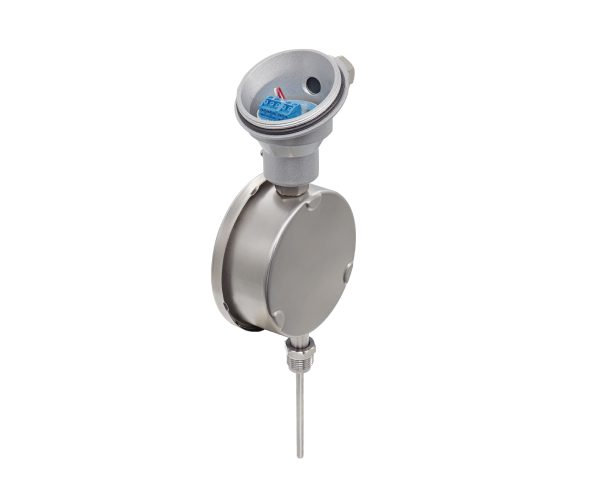

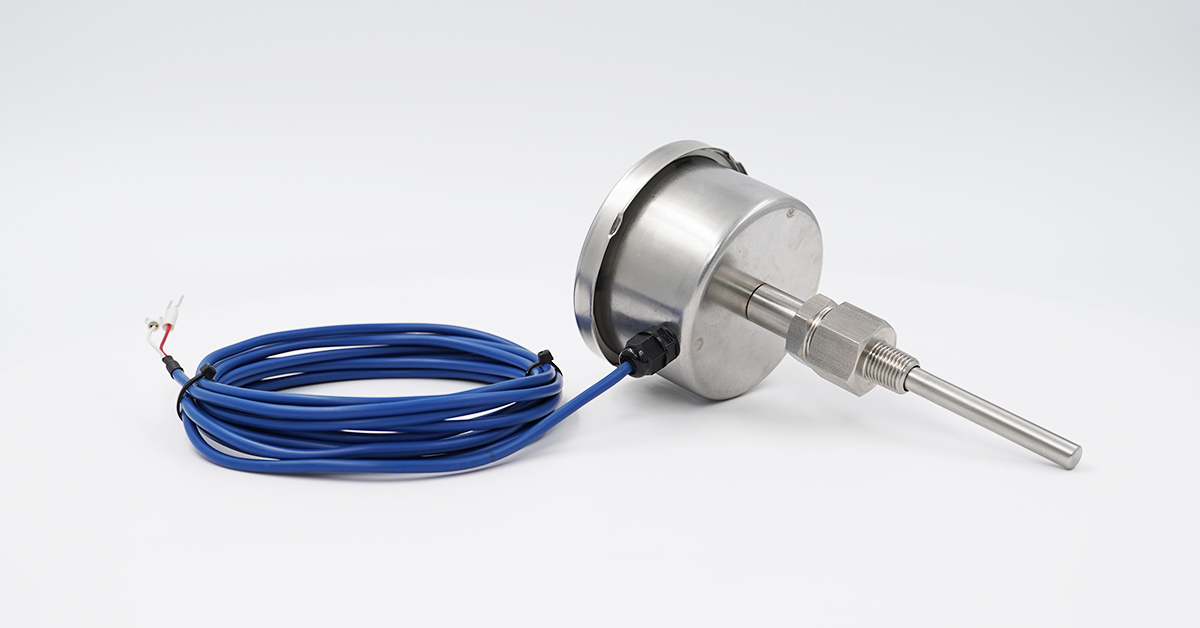

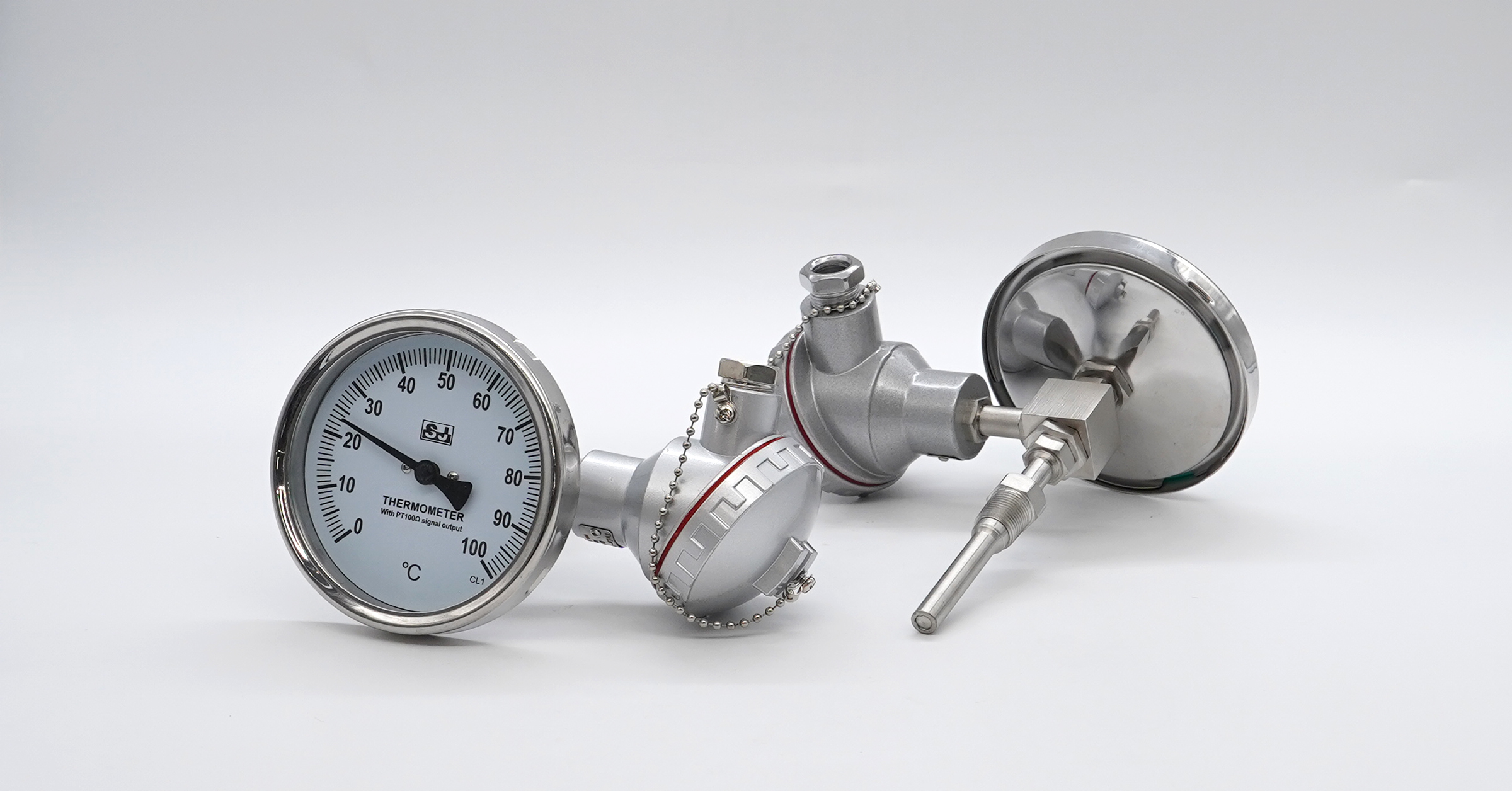

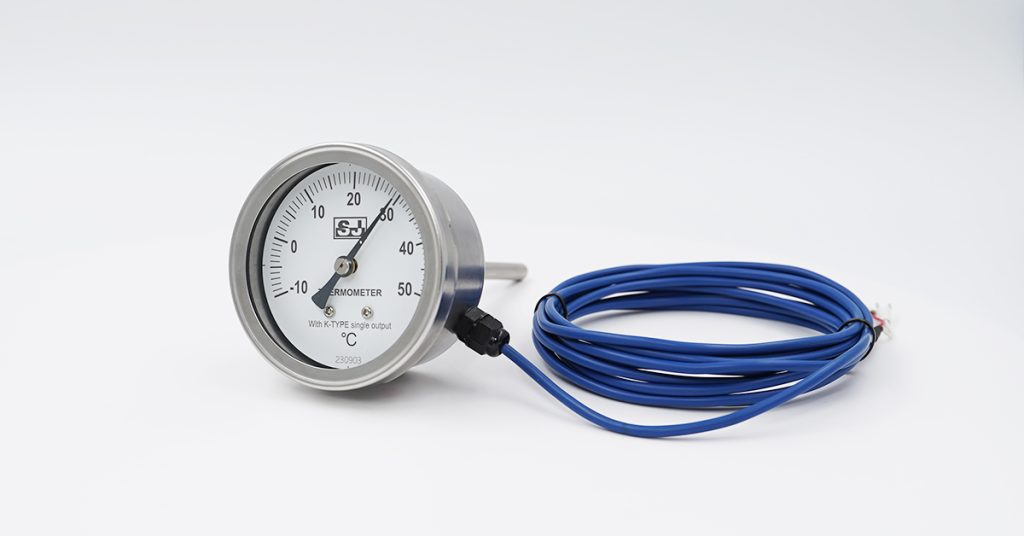

Product Images
