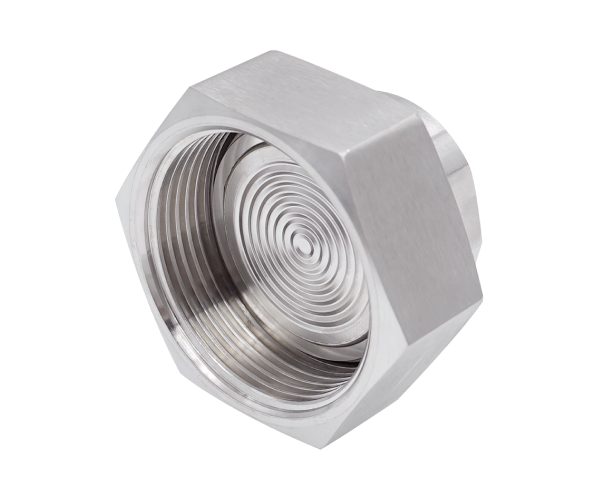

Sanitary Diaphragm Seals, IDF Standard
Model: DIS-IDF
- Clamp connections are fast and easy to open for cleaning and seal replacement
- Grooved union nut and thread coupling can be selected
- Suitable for Sterilization in Place (SIP) and Clean in Place (CIP)
- Responsive after-sales service / Customizable /
- High quality / One-year warranty
- The image is for reference; the actual product willbe based on your custom specifications.
Description
The DIS-IDF is a sanitary diaphragm seal designed according to IDF standards, featuring a quick-release clamp connection that allows fast disassembly, cleaning, and gasket replacement. It offers options for grooved union nuts and threaded couplings, and is fully compatible with CIP and SIP processes, making it ideal for dairy, beverage, food, and pharmaceutical applications. Available in sizes from 1.5″ to 4″, it supports pressure ranges from vacuum up to 40 bar. Wetted materials include 304/316L stainless steel, Hastelloy C276, Tantalum, Titanium, Monel 400, and Nickel 200, with operating temperatures up to 400°C. The DIS-IDF can be paired with pressure gauges or transmitters for hygienic process measurement.
Specifications
| Scale ranges | Pressure gauge: 1.5": -1 ... 5 bar, 0 ... 6 bar to 0 ... 40 bar 2"、2.5": -1 ... 3 bar, 0 ... 4 bar to 0 ... 25 bar 3"、4": -1 ... 1.5 bar, 0 ... 1.6 bar to 0 ... 16 bar Transmitter: 1.5": -1 ... 0 bar, 0 ... 0.3 bar to 0 ... 40 bar 2"、2.5": -1 ... 0.6 bar, 0 ... 0.1 bar to 0 ... 25 bar 3"、4": -1 ... 0.6 bar, 0 ... 0.1 bar to 0 ... 16 bar or all other equivalent vacuum or combined pressure and vacuum ranges |
|---|---|
| Process connection | Female, male 1.5", 2", 2.5", 3", 4" |
| Instrument connection | 1/4, 3/8, 1/2 PT, G, NPT, M |
| Material | Body: 304 SS, 316L SS, Hastelloy C276, Tantalum, Titanium, Monel 400, Nickel 200 Diaphragm: 316L SS, Hastelloy C276, Tantalum, Titanium, Monel 400, Nickel 200 |
| Medium temperature | 0℃ ... 80℃, 81℃ ... 200℃, 201℃ ... 400℃ |
| Others | Welded with instrument, coating (PTFE or PFA) |
