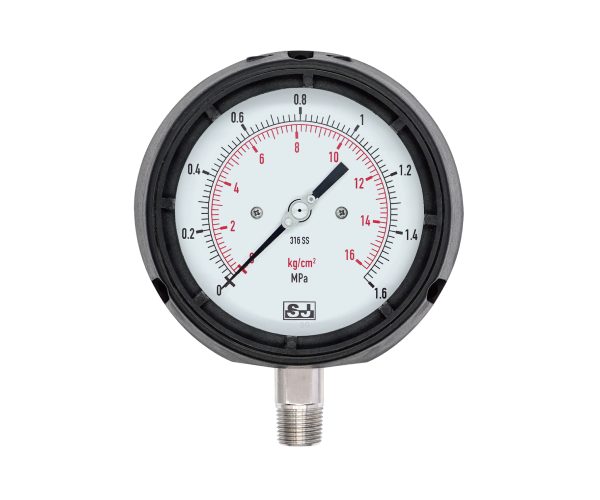

Stainless Steel Pressure Gauge with Phenolic Case, Process Industry
Model: PRPC
- The phenolic case is resistant to heat and high acid and also provides good insulation
- Solid barrier on the front and pressure relief system on the back for safer measuring
- Responsive after-sales service / Customizable /
- High quality / One-year warranty
- The image is for reference; the actual product willbe based on your custom specifications.
Description
The PRPC is a stainless steel pressure gauge built with a phenolic case that provides excellent heat resistance, acid resistance, and electrical insulation. It features a solid-front safety design with a blow-out back for enhanced protection. Equipped with 316L stainless steel wetted parts, the gauge supports pressure ranges from 0–6 kPa up to 0–100 MPa, with accuracy options of ±1.0%, ±1.6%, or ±2.5% F.S. The 4.5-inch dial makes it suitable for chemical processing, industrial plants, and applications requiring high safety. An optional silicone-dampened movement is available for improved vibration resistance.
Specifications
| Connection location | Bottom mount, back mount |
|---|---|
| Nominal size | 4.5" |
| Scale ranges | 0 ... 6 kPa to 0 ... 100 MPa, or other equivalent units of pressure, vacuum or compound |
| Accuracy | ±1.0% F.S. , ±1.6% F.S. , ±2.5% F.S. |
| Process connection | 316L SS 1/4, 3/8, 1/2 PT, G, NPT |
| Case | Phenol, with a solid baffle wall (solid front) and blow-out back |
| Window | Safety glass |
| Dial | Aluminum alloy, black scale on white |
| Pointer | Black aluminum alloy |
| Movement | 304 SS |
| Bourdon tube | 316L SS |
| Accessories (options) | Silicone dampened movement |
| Ambient temperature | -20 ℃ ... 60 °C |
| Medium temperature | -20 ℃ ... 100 °C |
