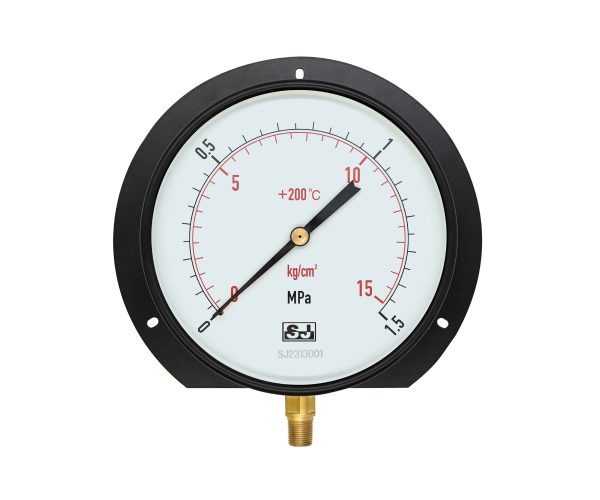

Stainless Steel Pressure Gauge, High Temperature / Boiler
Model: PRST
- Use copper alloy (or 304 SS) wetted parts for high-temperature applications
- Design for plants and equipment where measured values must be read from a distance
- Referred to as” Boiler Gauge ” or” Steam Gauge” in the industry
- Responsive after-sales service / Customizable /
- High quality / One-year warranty
- The image is for reference; the actual product willbe based on your custom specifications.
Description
The PRST is a high-temperature pressure gauge designed for boilers, steam systems, and industrial installations where readings must be visible from a distance. Often referred to as a “Boiler Gauge” or “Steam Gauge,” it offers copper alloy or 304 stainless-steel wetted parts and withstands medium temperatures up to 200°C. Available in 8-inch and 10-inch dial sizes, the PRST supports pressure ranges from 0–1 bar to 0–1000 bar with ±1.6% F.S. accuracy. Its iron case with black anti-corrosion coating ensures durability, making it ideal for harsh high-temperature, high-pressure environments.
Specifications
| Nominal size | 8", 10" |
|---|---|
| Scale ranges | 0 ... 1 bar to 0 ... 1000 bar, or other equivalent units of pressure, vacuum or compound |
| Accuracy | ±1.6% F.S. |
| Process Connection | 1/4, 3/8, 1/2 PT, G, NPT |
| Case / Ring | Iron: with black anti-corrosion coating |
| Window | Flat instrument glass |
| Dial | Aluminum alloy (single or double scale) |
| Pointer | Black aluminum alloy |
| Bourdon Tube | Copper alloy, 304 SS |
| Movement | Copper alloy |
| Medium temperature | Max. 200℃ |
| Accessories (Options) | Stainless steel rear flange |

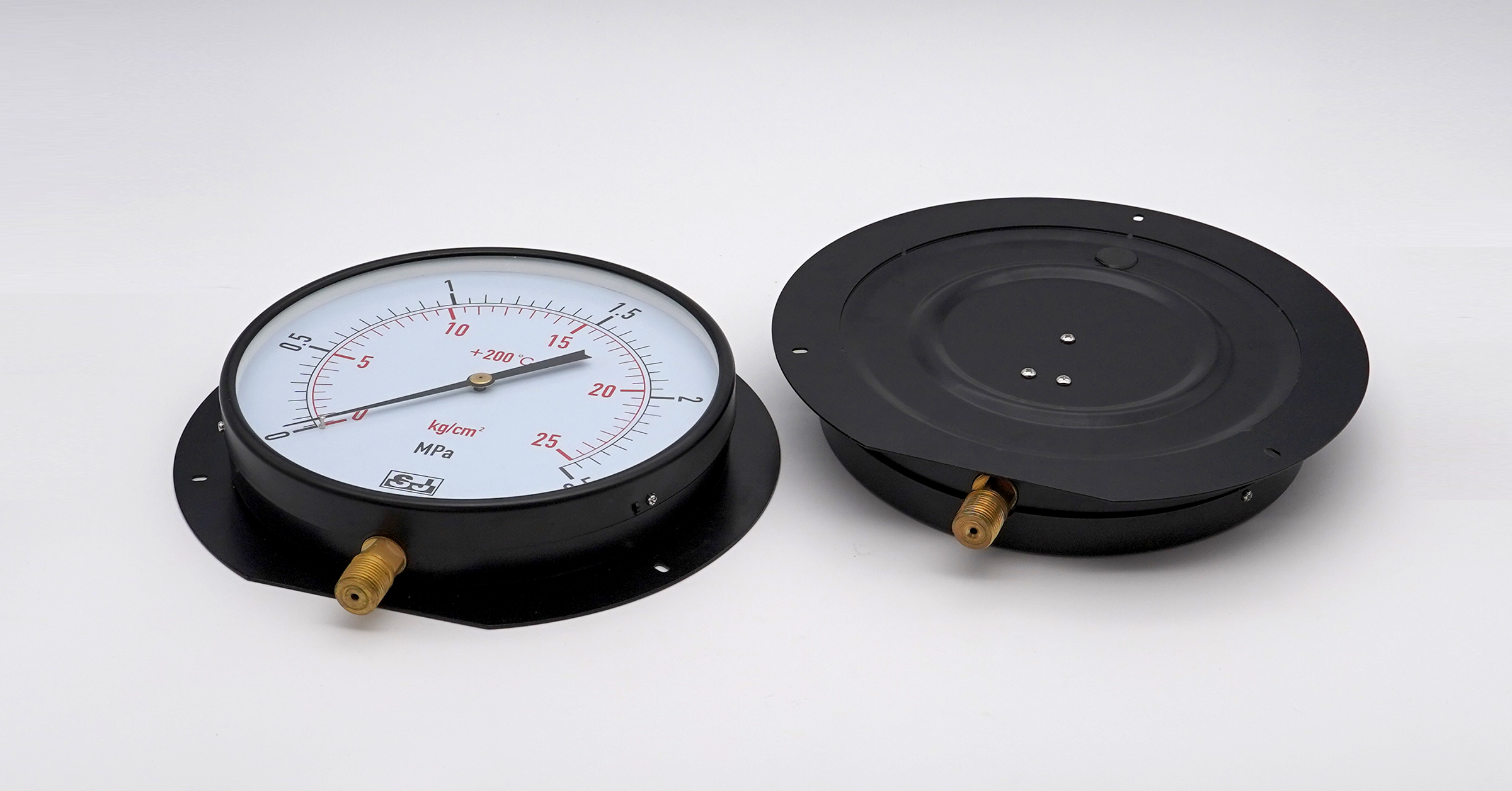

Product Images
