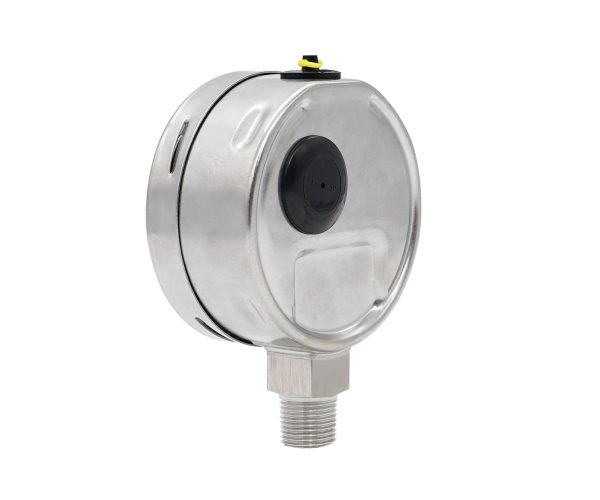

Low Pressure Gauge, Stainless Steel
- Can only be used to measure the pressure of non-liquid media
- For gaseous, dry and aggressive media, as well as adverse environments
- The liquid-filled case design is suitable for highly dynamic pressure loads and vibrations
- Responsive after-sales service / Customizable /
- High quality / One-year warranty
- The image is for reference; the actual product willbe based on your custom specifications.
Description
The PRSSM.TU is a capsule-type low-pressure gauge designed for dry and aggressive gaseous media, featuring 316L stainless-steel wetted parts and a 304/316 stainless-steel case for enhanced durability in harsh environments. It offers extremely low-pressure ranges starting from 0.5 kPa (6″ dial) up to 100 kPa, with accuracy options of ±2.5%, ±1.6%, or ±1.0% F.S. The gauge is available in non-filled or silicone oil–filled versions to improve resistance to vibration and dynamic pressure loads. Additional features include IP65 protection, a front zero adjustment mechanism, and multiple mounting options (bottom, back, flange, or U-clamp). This makes the PRSSM.TU ideal for corrosive gases, laboratories, process monitoring, and HVAC low-pressure applications.

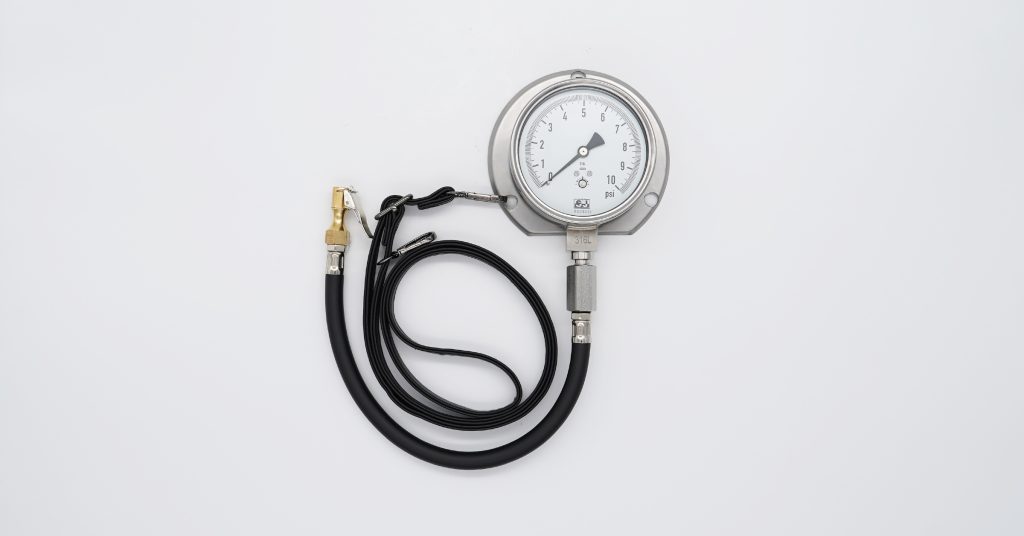

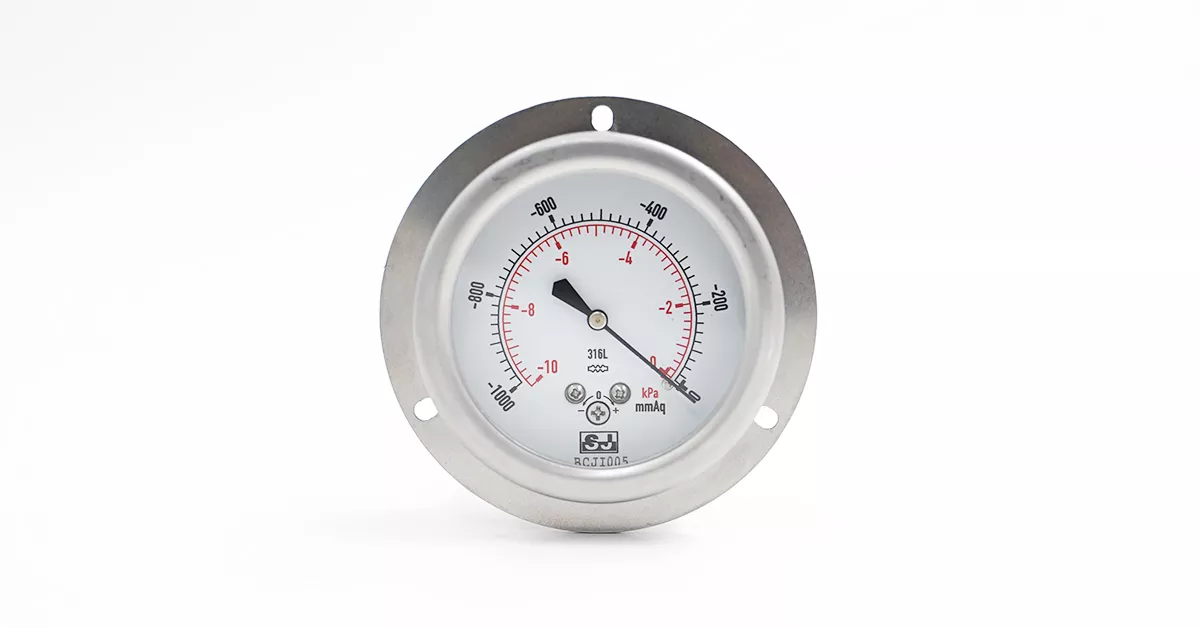

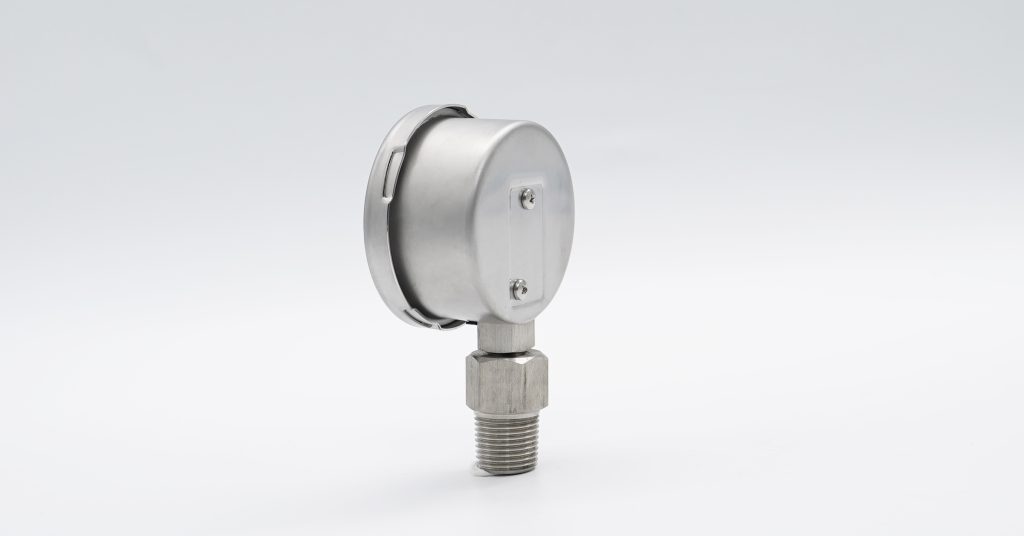

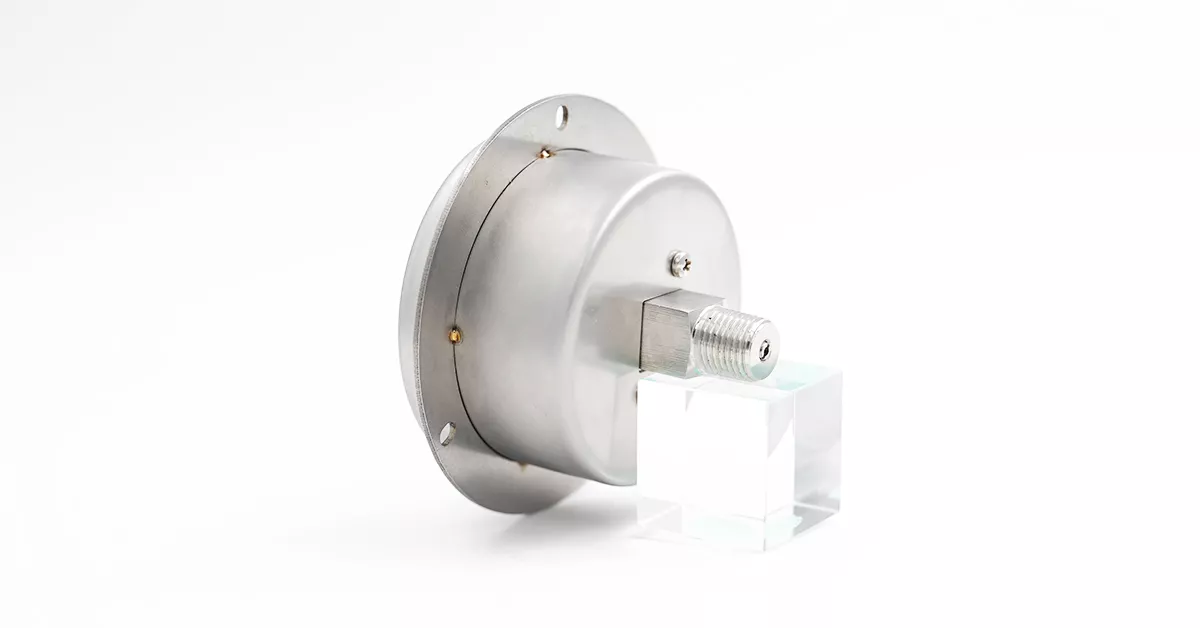

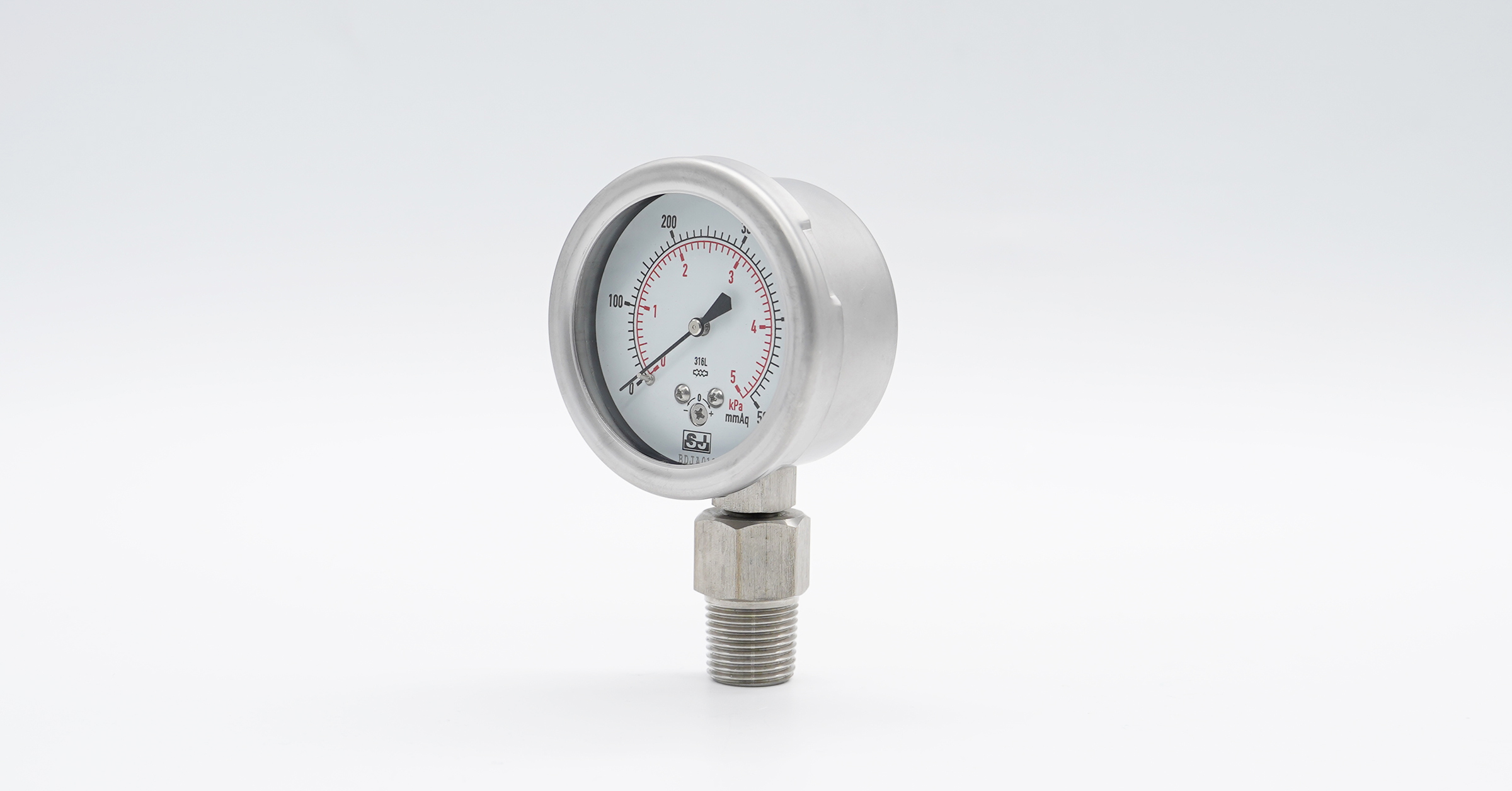

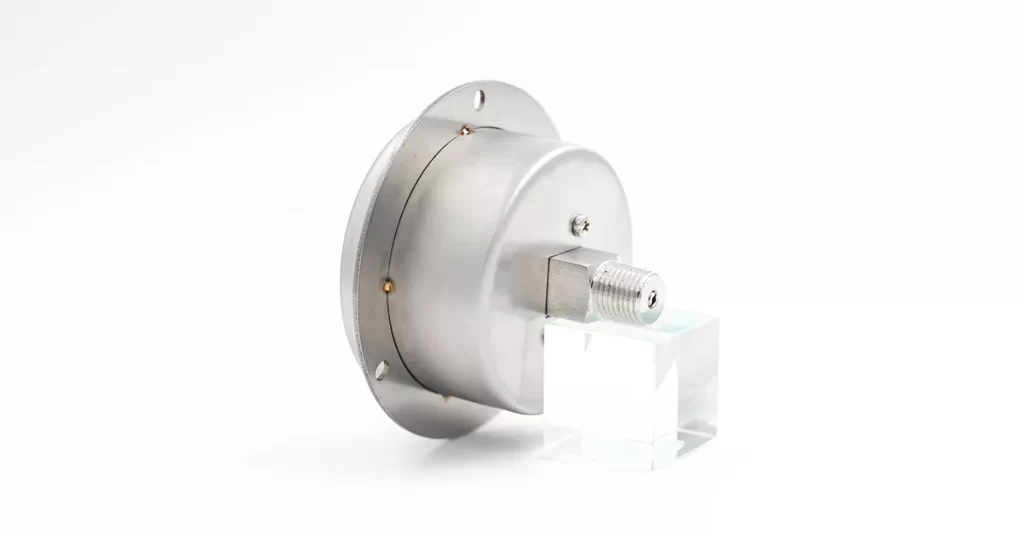

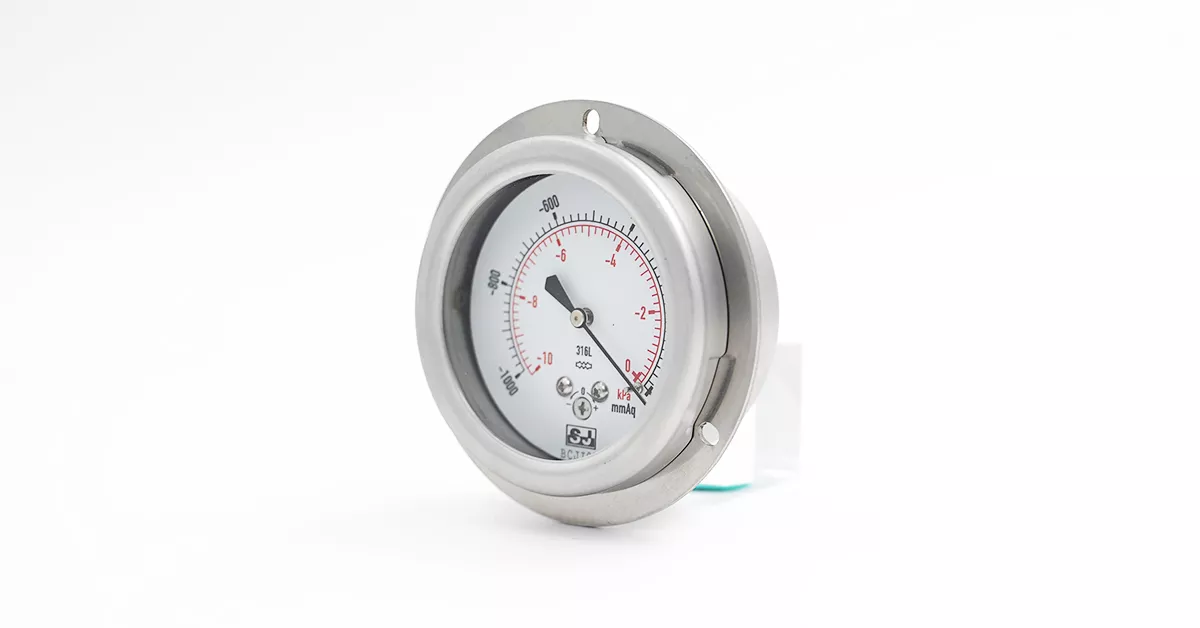

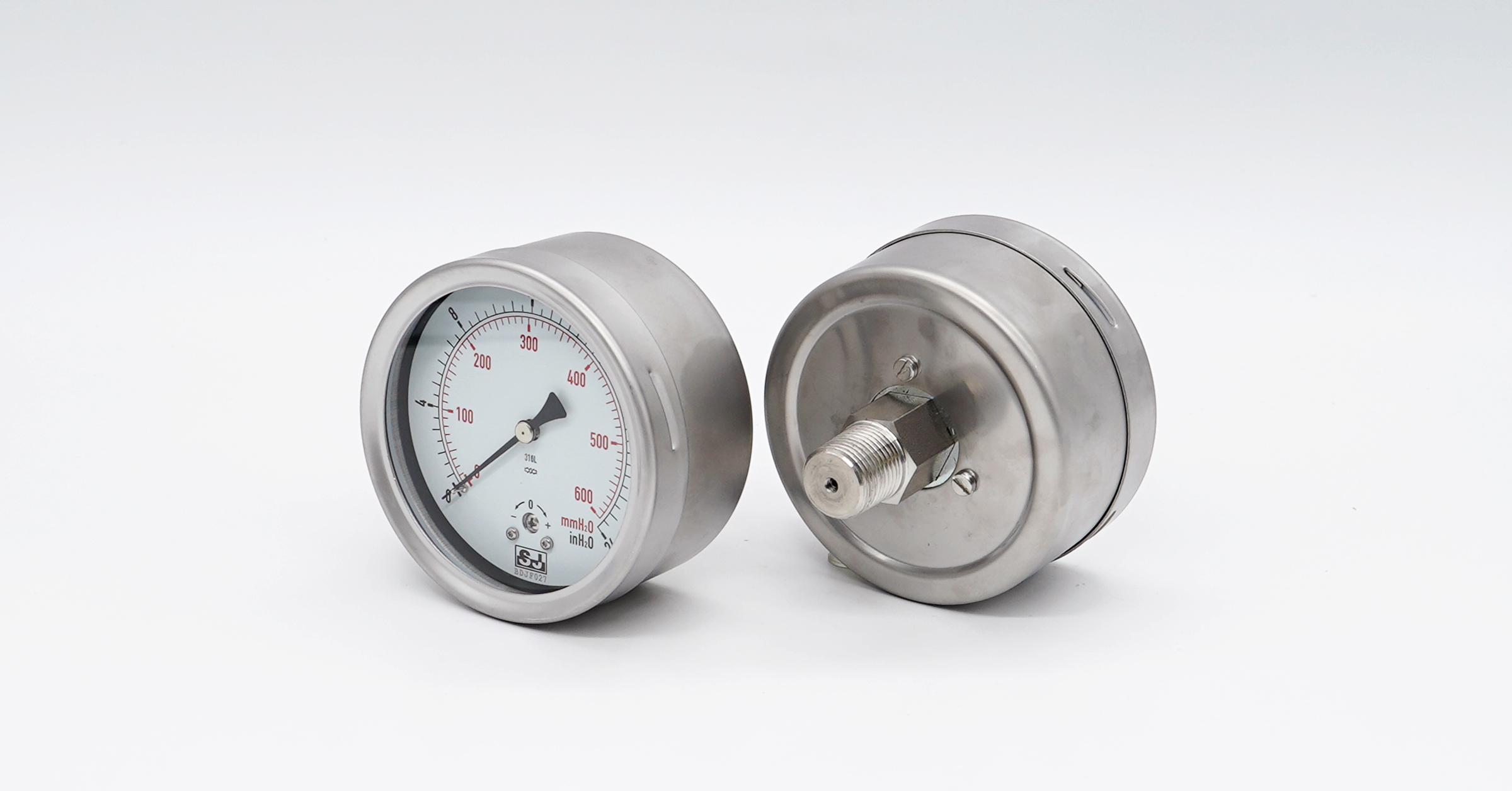

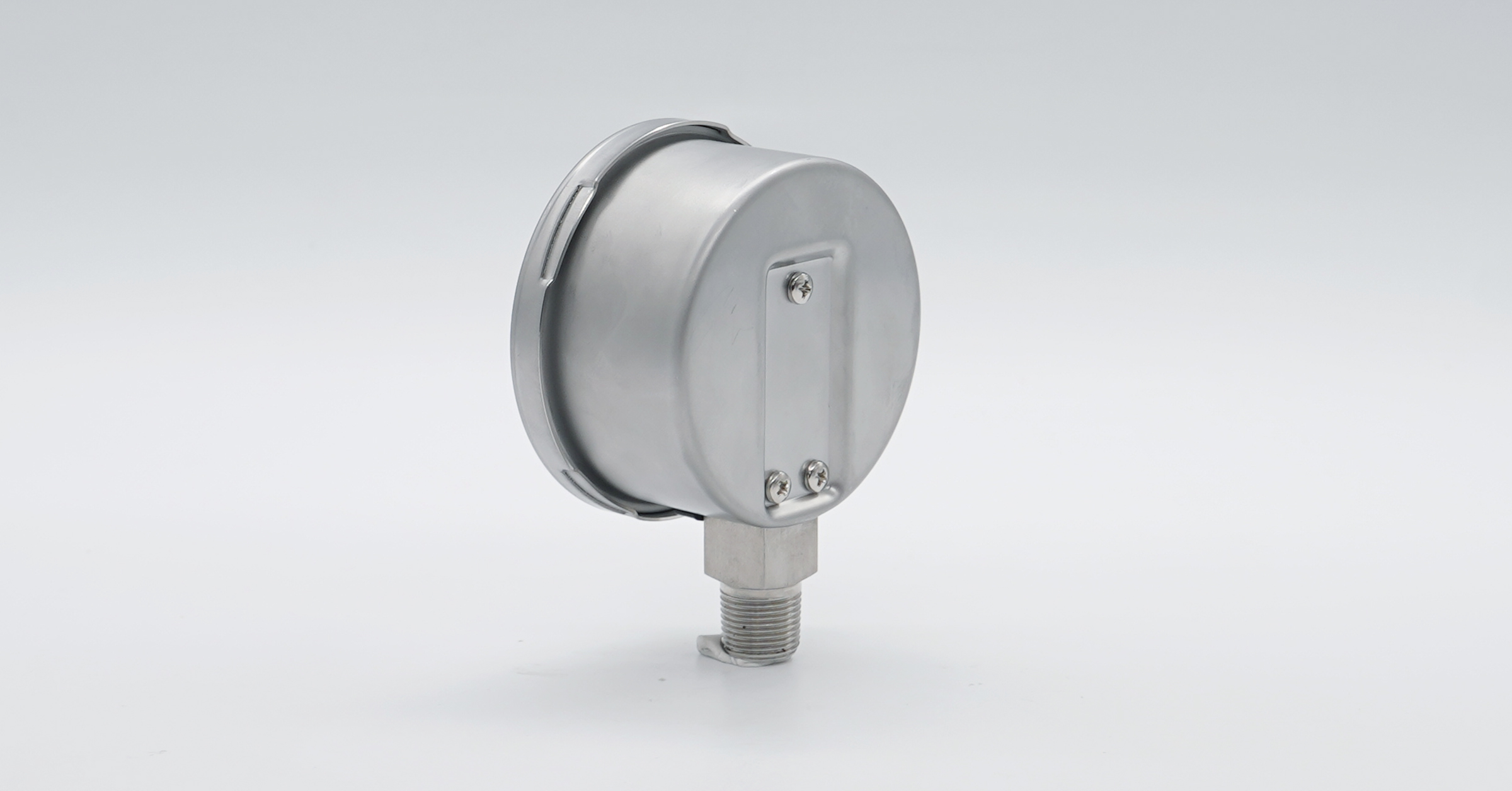

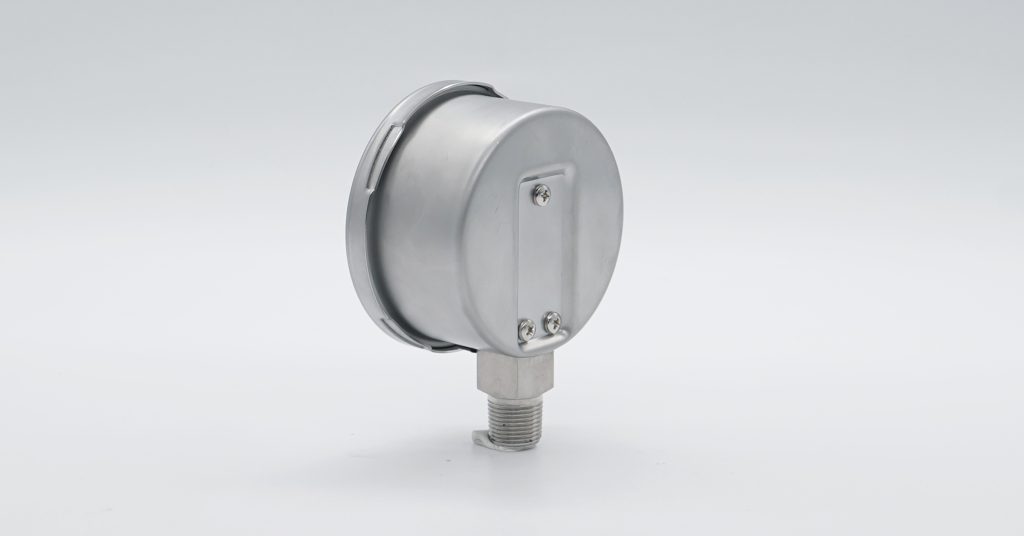

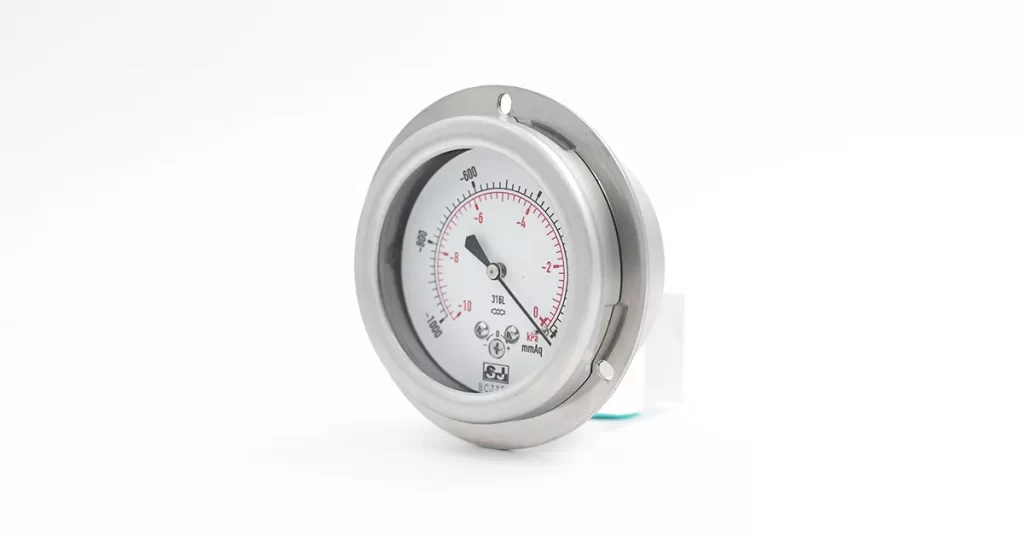

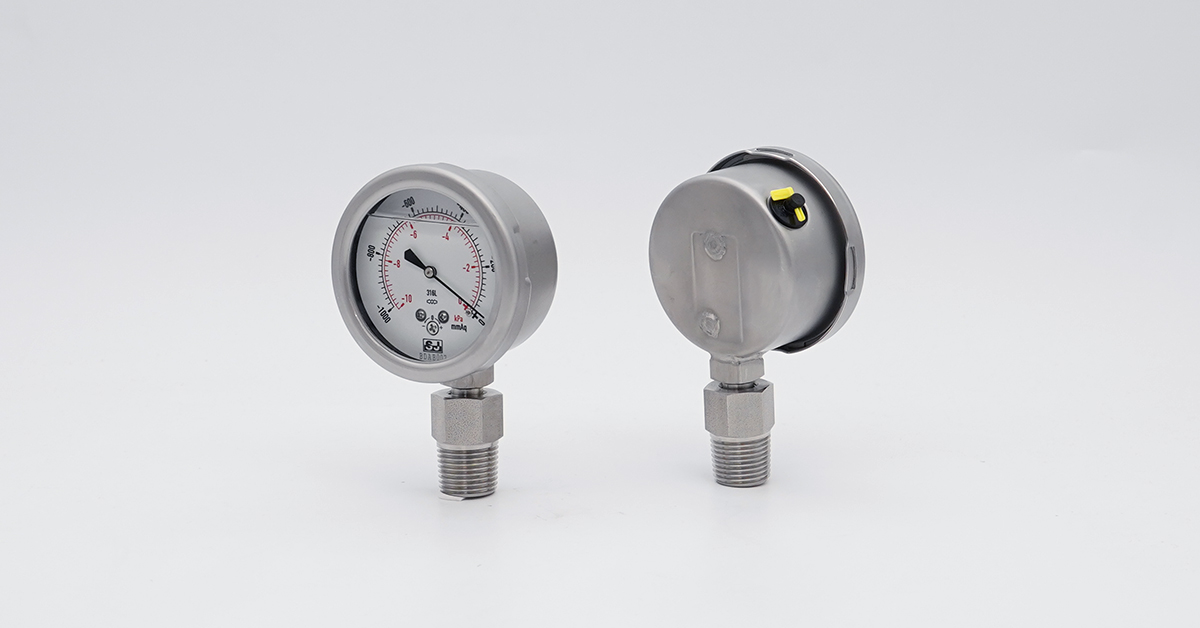

Product Images
