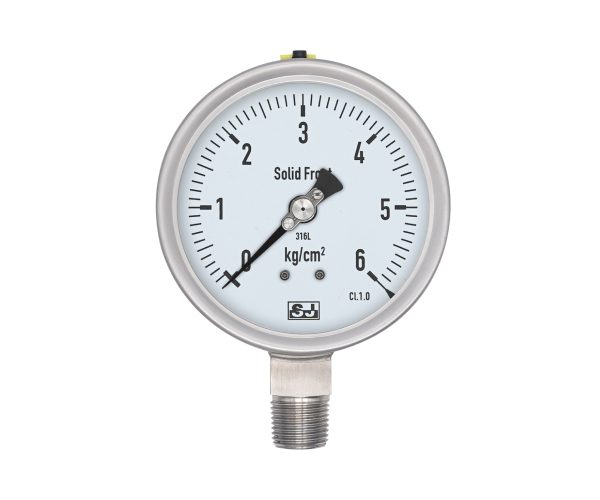

Stainless Steel Pressure Gauge with Solid Baffle Wall, Safety
Model: PRSF
- A solid baffle wall between the measuring system and front dial to protect the operator

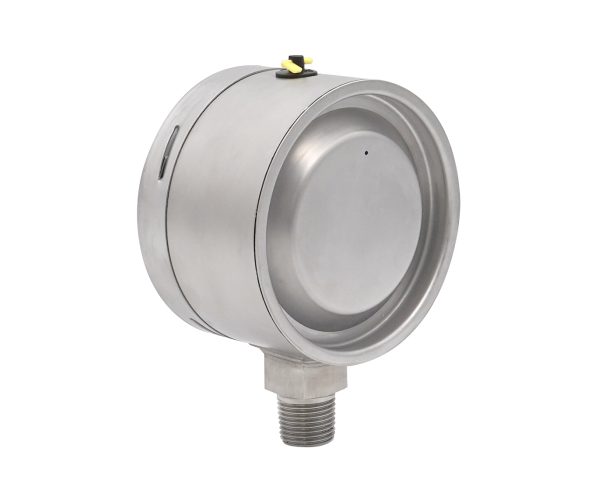

- When experiencing failure, the case is equipped with a blow-out back to eject dangerous media out the back of the case safely
- Responsive after-sales service / Customizable /
- High quality / One-year warranty
- The image is for reference; the actual product willbe based on your custom specifications.
Description
The PRSF is a stainless-steel pressure gauge engineered for enhanced operator safety, featuring a solid baffle wall that isolates the measuring system from the front dial. In case of failure, a blow-out back safely vents hazardous media away from the user. Built with 304 or 316 stainless steel housing and 316L wetted parts, the PRSF offers pressure ranges from 0–0.6 bar to 0–1000 bar with ±1.0% F.S. accuracy. It can be supplied dry, glycerine-filled, or silicone-filled for improved vibration resistance and withstands medium temperatures up to 200°C (unfilled). This model is ideal for chemical plants, processing equipment, and any industrial environment requiring high safety protection.
Specifications
| Nominal size | 4" |
|---|---|
| Scale ranges | 0 ... 0.6 bar to 0 ... 1000 bar or other equivalent units of pressure, vacuum or compound |
| Accuracy | ±1.0%F.S. |
| Process connection | 316L SS 1/4、3/8、1/2 PT、G、NPT |
| Case | 304 stainless steel, 316 stainless steel, with solid baffle wall and blow-out back |
| Window | Safety glass |
| Dial | Aluminum alloy, black scale on white |
| Pointer | Black aluminum alloy, adjustable pointers |
| Filling liquid | Without, glycerine, silicone oil |
| Ambient temperature | 40℃ ... 60℃ (non-liquid-filled) -20℃ ... 60℃ (liquid-filled) |
| Medium temperature | ≤200℃ (non-liquid-filled) ≤100℃ (liquid-filled) |
