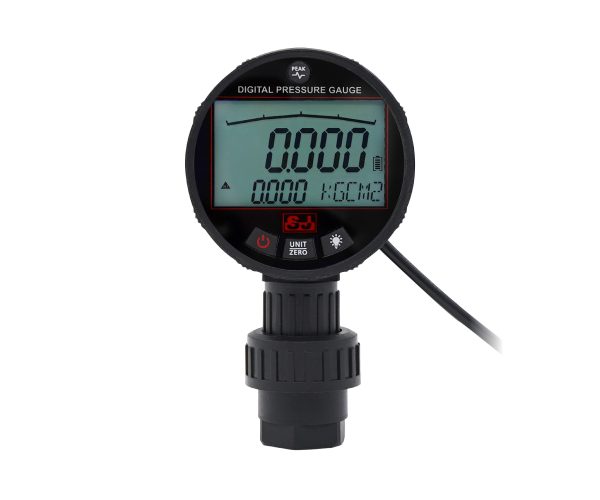

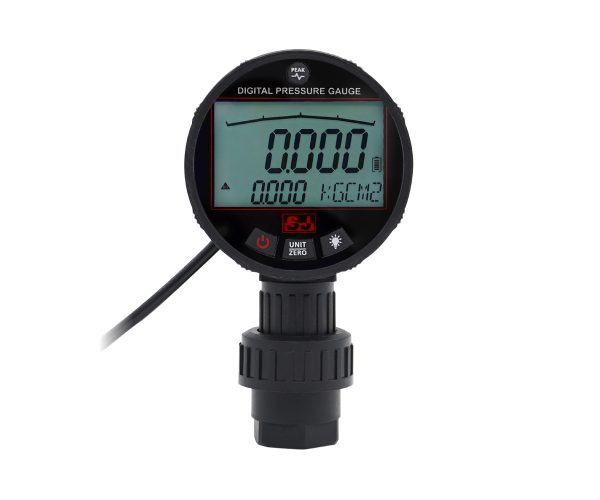

Digital Pressure Gauge, Double-sided LCD Display Screen
Model: PRD-DP
- Double-sided display facilitating observation and operation
- LCD monitor with backlight, beneficial to long-term monitoring
- Corrosion resistance on both case and wetted part, generally used in the PCB industry
- Responsive after-sales service / Customizable /
- High quality / One-year warranty
- The image is for reference; the actual product willbe based on your custom specifications.
Description
The PRD-DP is a digital pressure gauge featuring dual-sided LCD screens, making it ideal for installations where readings are required from both the front and back of the equipment. Built with a corrosion-resistant nylon housing and a zirconia sensing core, it is commonly used in PCB and other harsh industrial environments. The gauge supports ranges up to 2 MPa and offers up to eight selectable pressure units. Its 5.5-digit LCD with backlight refreshes at 18 times per second and operates via an external DC5V power supply, making it suitable for continuous monitoring applications.
Specifications
| Nominal size | 3" |
|---|---|
| Scale ranges | 0 ... 2 MPa or other equivalent units of pressure, vacuum or compound |
| Pressure units | MPa, kg/cm2, bar, psi, mmH2O, kPa,Pa, inWC, mbar, mH2O, inHg, mmHg,Torr (Up to 8 units can be switched,if not specified, the engineer will select it according to the pressure range) |
| Accuracy | ±1.0% F.S. |
| Process connection | Thread: nylon; core: zirconia G1/2 (F) |
| Case/Ring | Nylon |
| Panel | Acrylic |
| Medium temperature | -20℃ ... 60℃ |
| Display | 5.5 digits LCD switchable backlight button |
| Response time | 18 times/sec |
| Voltage supply | External power supply DC5V |
