Bimetallic Thermometer, Magnetic Surface
Model: MTM
- Magnet thermometers are simple to operate and can directly measure the temperature
- Suitable for measuring the temperature of magnetic metal surfaces
- Used in mold, plastic injection, and other industrial applications
- Responsive after-sales service / Customizable /
- High quality / One-year warranty
- The image is for reference; the actual product willbe based on your custom specifications.
Description

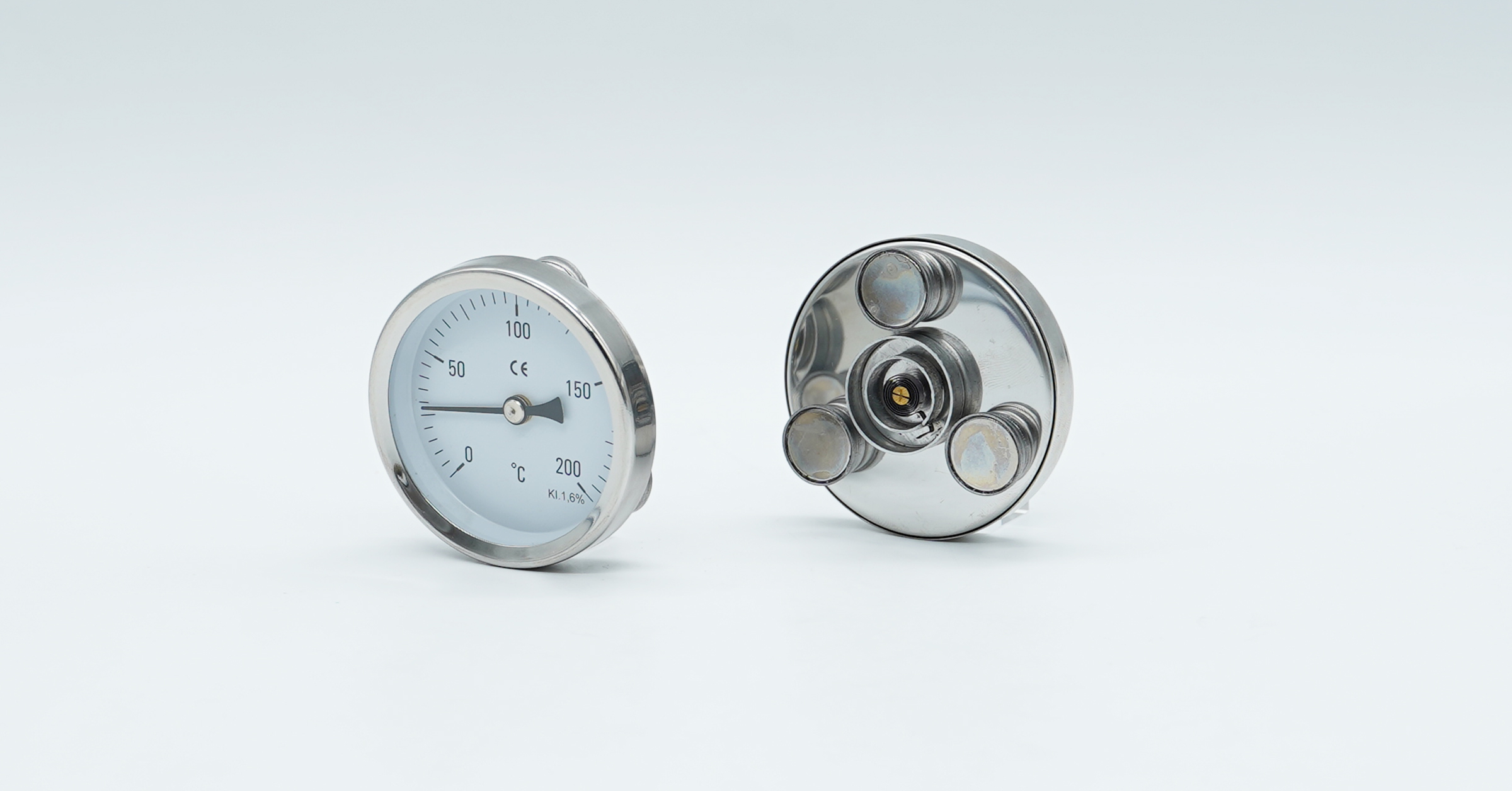

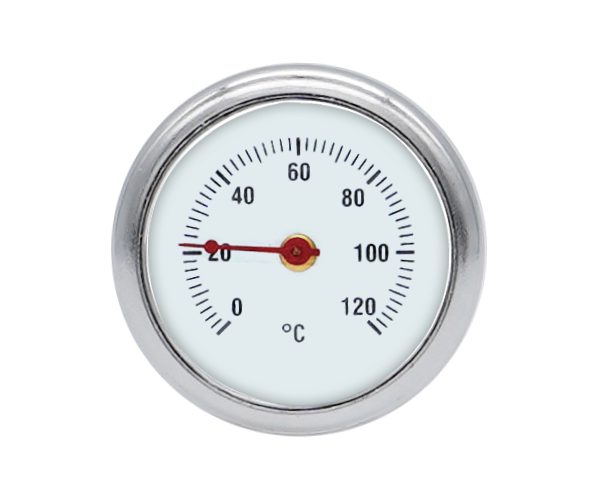

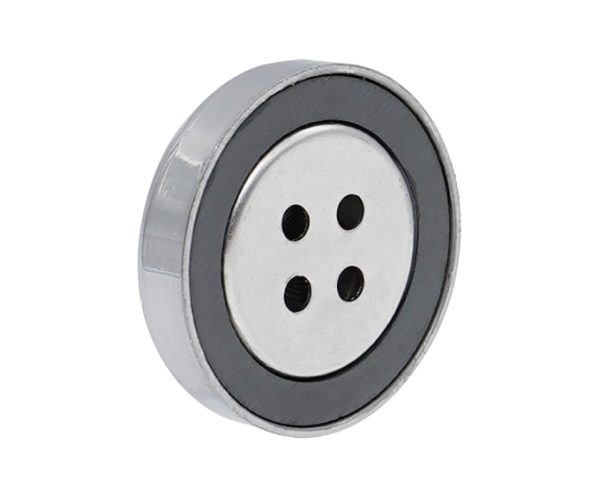

The MTM magnetic bimetallic thermometer features a magnetic mounting design that allows direct attachment to magnetic metal surfaces for quick and easy temperature measurement without the need for drilling or brackets. With a simple structure and fast response, it is ideal for mold applications, plastic injection machines, and general industrial metal surface temperature monitoring. Available in 1.5″ and 2.5″ dial sizes with multiple temperature ranges, the MTM can also be equipped with an optional spring to enhance measurement stability, making it a practical solution for spot checks and on-site temperature indication.
Specifications
| Nominal size | 1.5", 2.5" |
|---|---|
| Scale ranges | 1.5": 0℃ ... 100℃, 0℃ ... 120℃, 0℃ ... 200℃ 2.5": 0℃ ... 200℃, 0℃ ... 300℃ |
| Accessories (option) | With spring |
Product Images
