Expansion Thermometer, Alarm Contact
Model: MTG-E
- Thermometer with magnetic snap-action contact available for automated control
- Used in machine building, factory, and vessel construction
- Responsive after-sales service / Customizable /
- High quality / One-year warranty
- The image is for reference; the actual product willbe based on your custom specifications.
Description
The MTG-E is an expansion thermometer with built-in alarm contacts, featuring a magnetic snap-action switch that provides reliable signal output when the temperature reaches a preset value. Designed for fast response and high-temperature measurement up to 700 °C, it is ideal for process monitoring and automated control applications. With flexible mounting options including bottom mount, back mount, and adjustable angle, as well as selectable single or double contacts (N.O./N.C.), the MTG-E is widely used in machine building, industrial plants, and vessel systems where temperature monitoring and safety interlocking are required.
Specifications
| Connection location | Bottom mount, back mount, adjustable angle |
|---|---|
| Nominal size | 3", 4", 6" |
| Scale ranges | -50°C ... 700°C |
| Accuracy | CL 1.0 |
| Process connection | 304 SS, 316 SS 1/4, 3/8, 1/2, 3/4 PT, G, NPT, M |
| Connection designs | Union nut and loose threaded connection, male thread, plain stem, compression fitting (sliding on stem), male nut, union nut, sanitary end cap, flange on stem |
| Sanitary end cap | 1", 1 1/2", 2", 2 1/2", 3", 4" |
| Stem | 304 SS, 316 SS Length: Above 50 mm (without thread) can be customized Diameter: 6.35, 8, 9.5, 10, 12 mm |
| Case/Ring | 304 SS |
| Window | Glass, acrylic |
| Dial | Aluminum alloy Black scale on white |
| Pointer | Black aluminum alloy |
| Switch contact | Type: Banana connector, rear cable outlet, cable socket Functions: Single contact N.O., single contact N.C., double contacts N.O. + N.C. Version: Reed contact Adjustment knob: None, plastic knob with acrylic window, metal knob with glass window |
| Electrical contact specifications | Rated operating voltage: 250 V (Max.) Switching power max.: 30 W ~ 50 VA (Max.) Switch-on current: 1.0 A (Max.) Switch-off current: 1.0 A (Max.) Continuous current: 0.6 A (Max.) |
| Accessories (option) | Thermowell, drag pointer, spacer, signal output PT100 |
| IP rating | IP65 |

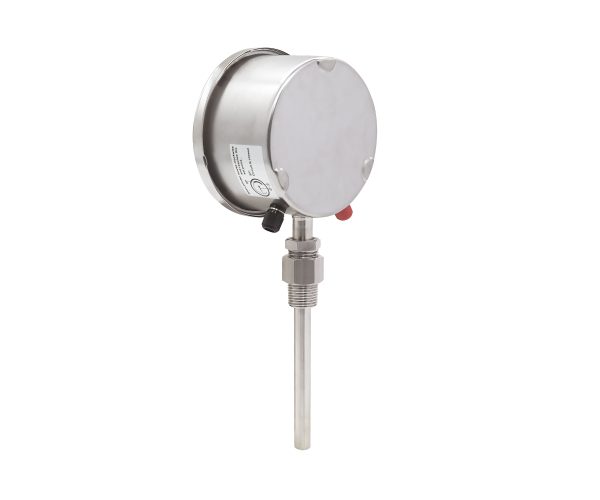

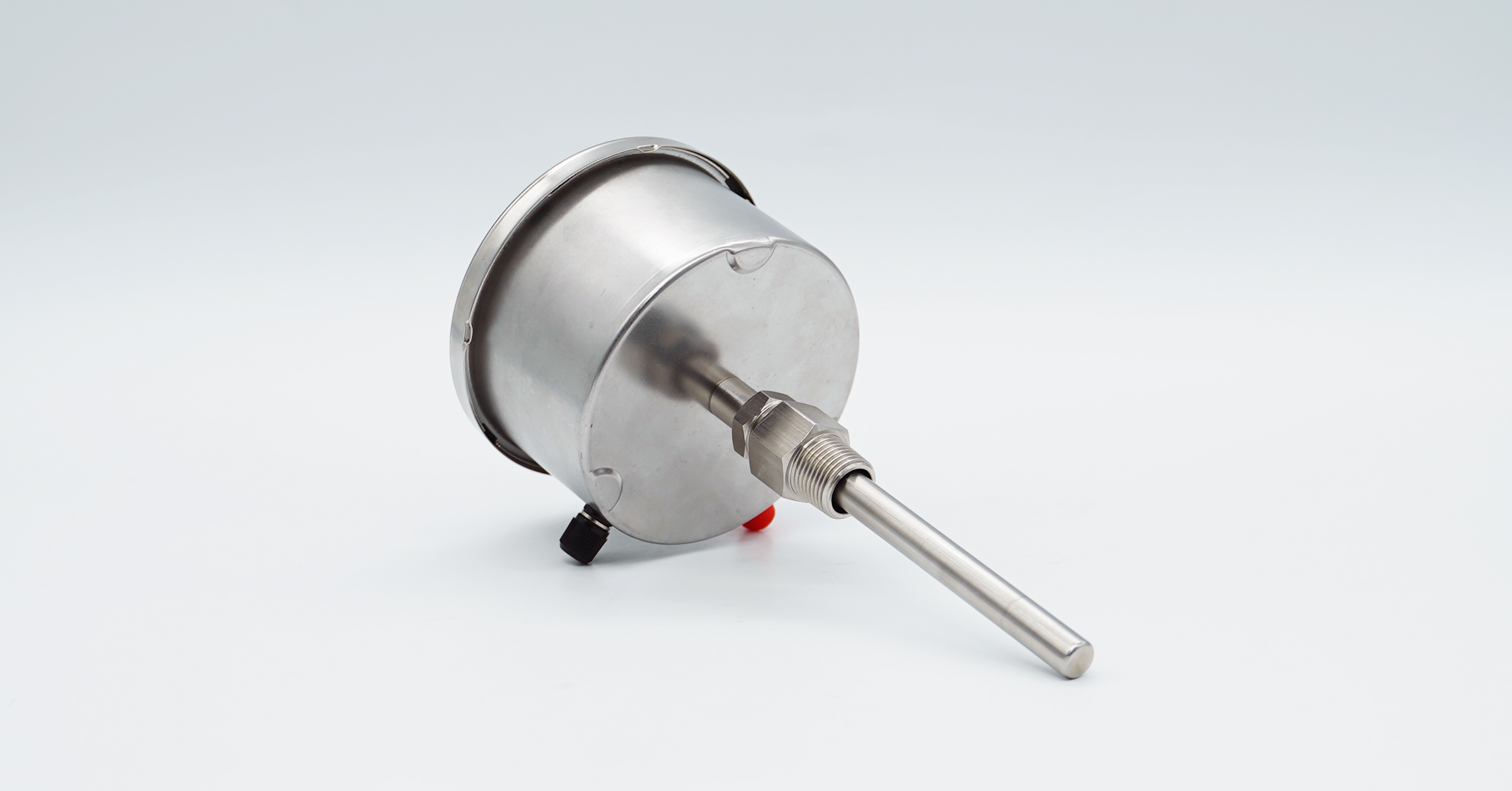

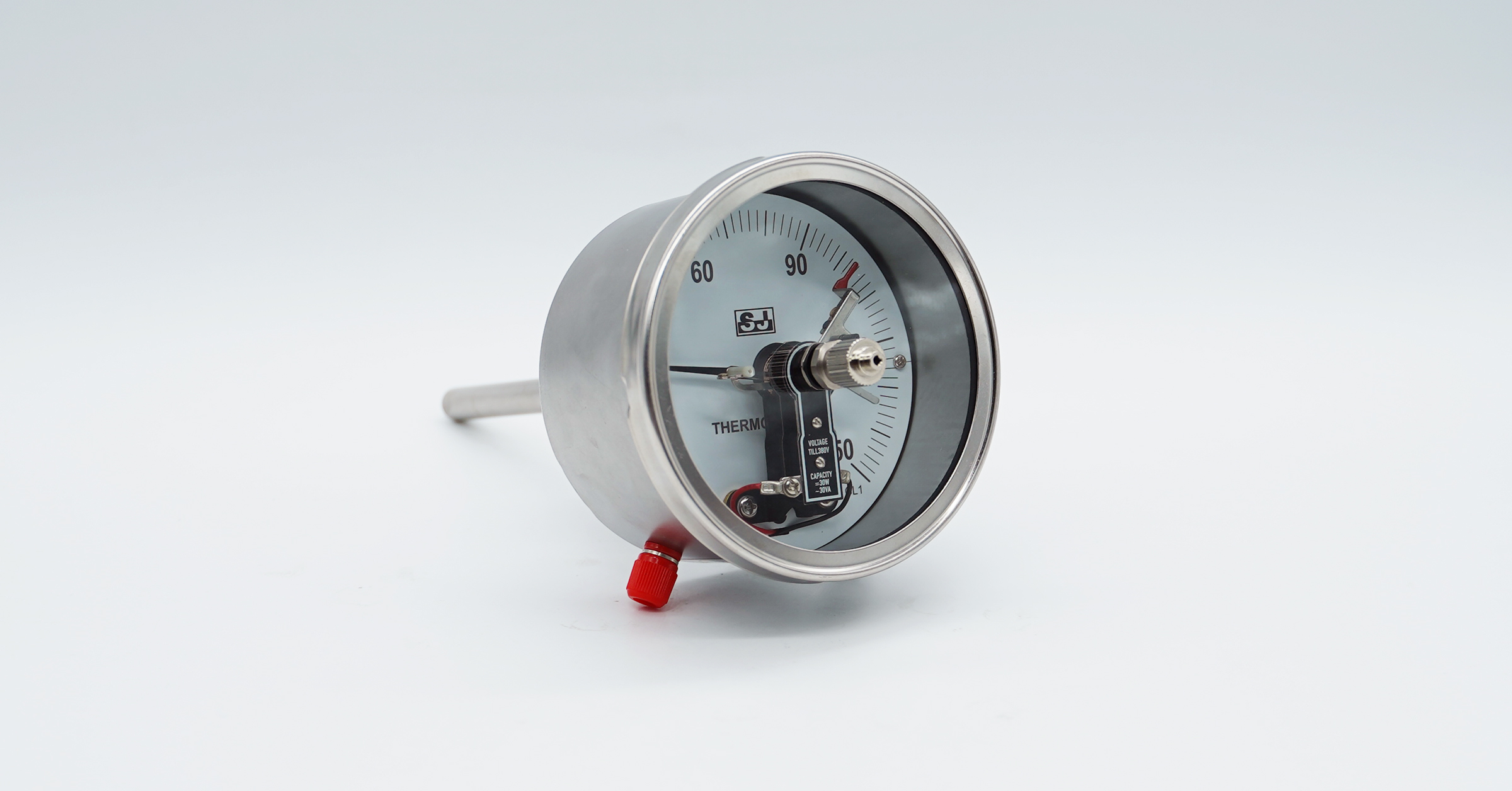

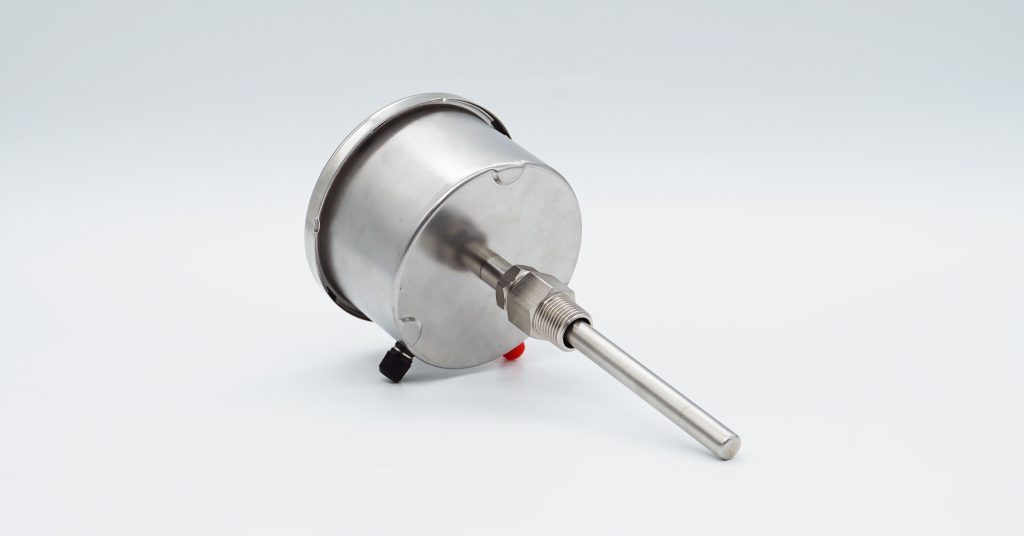

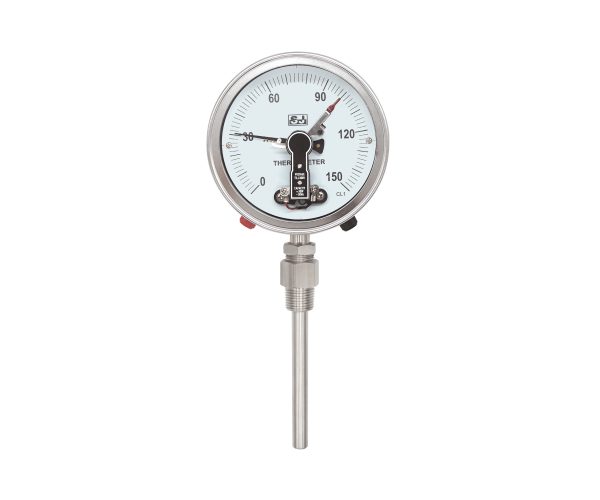

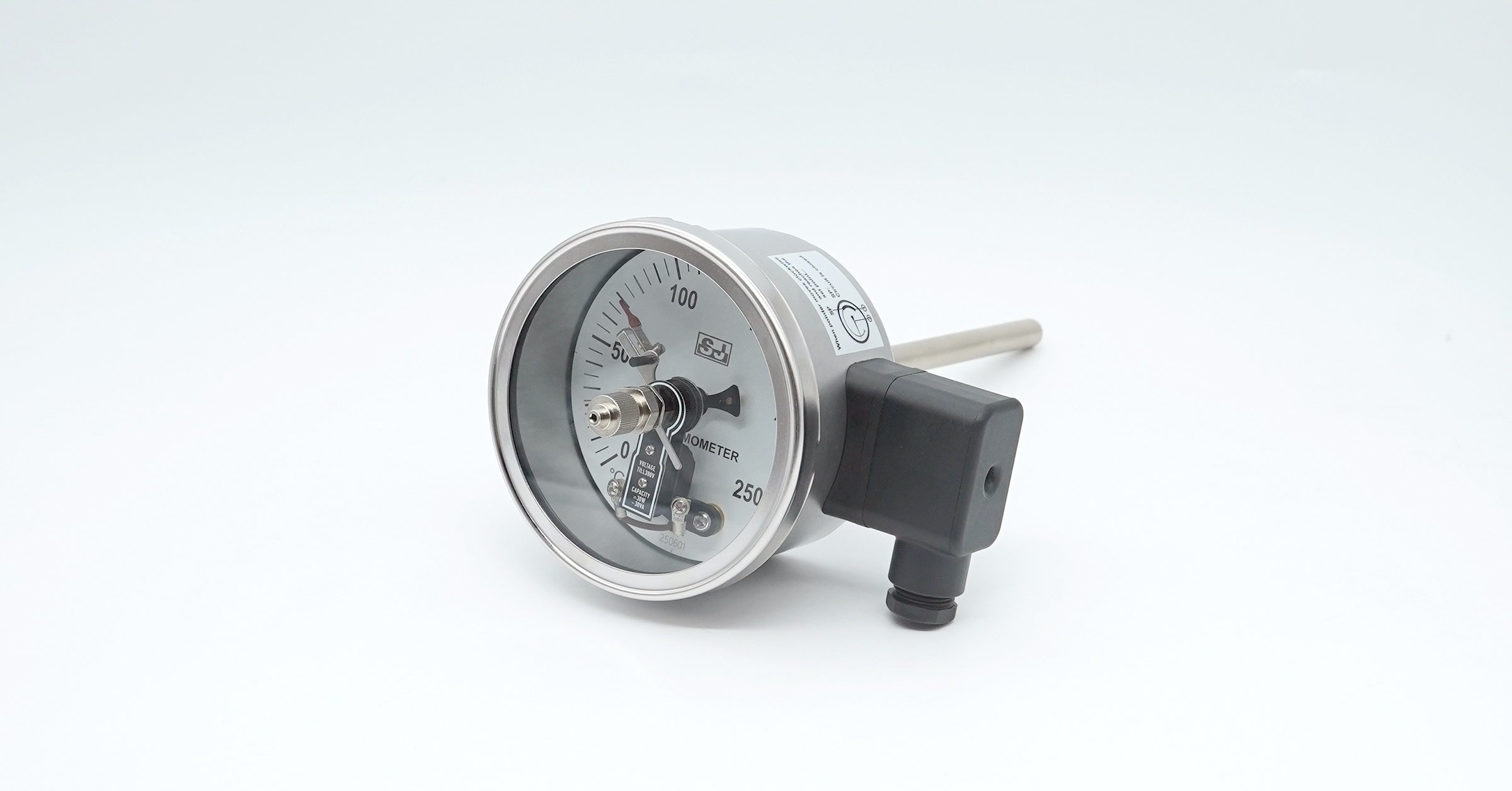

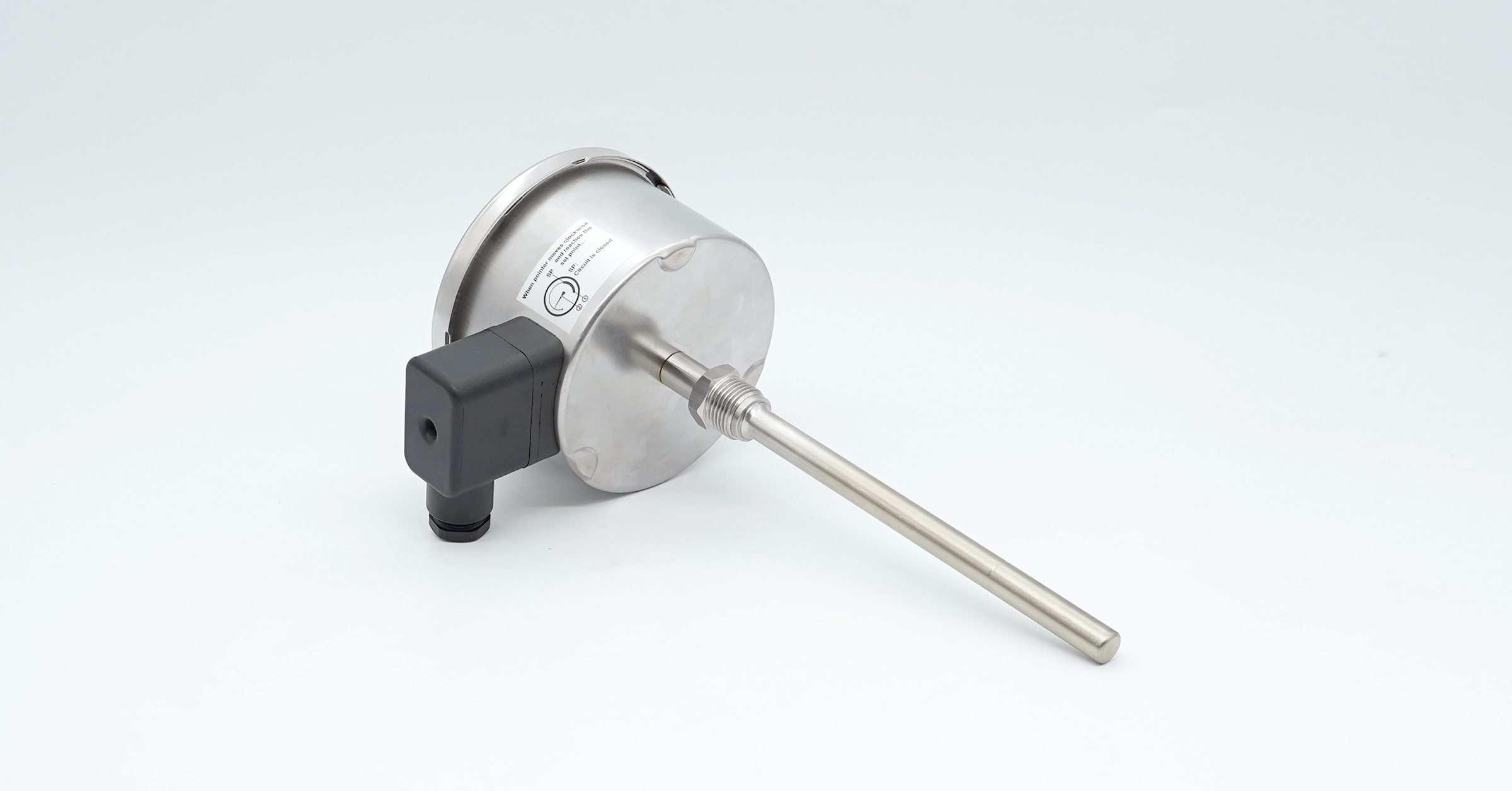

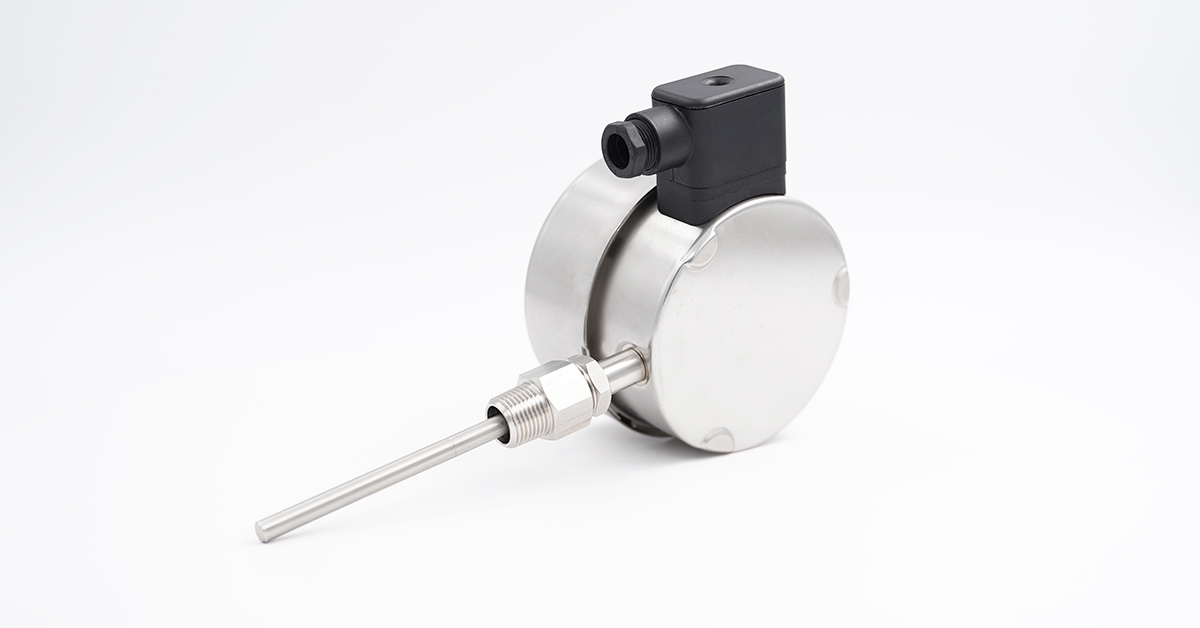

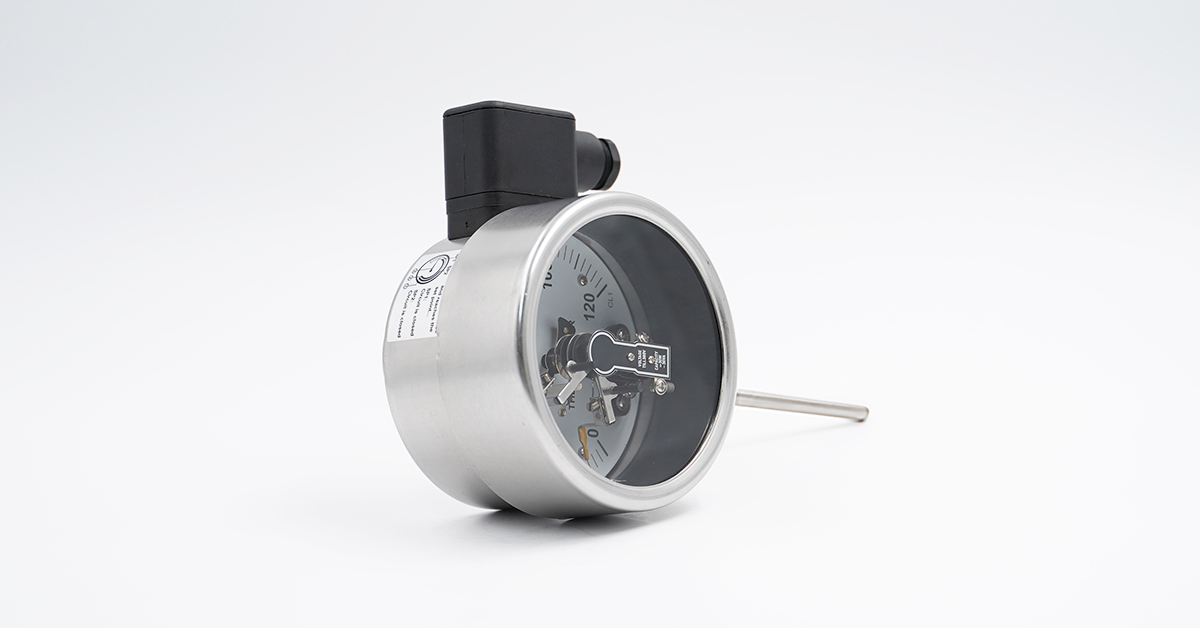

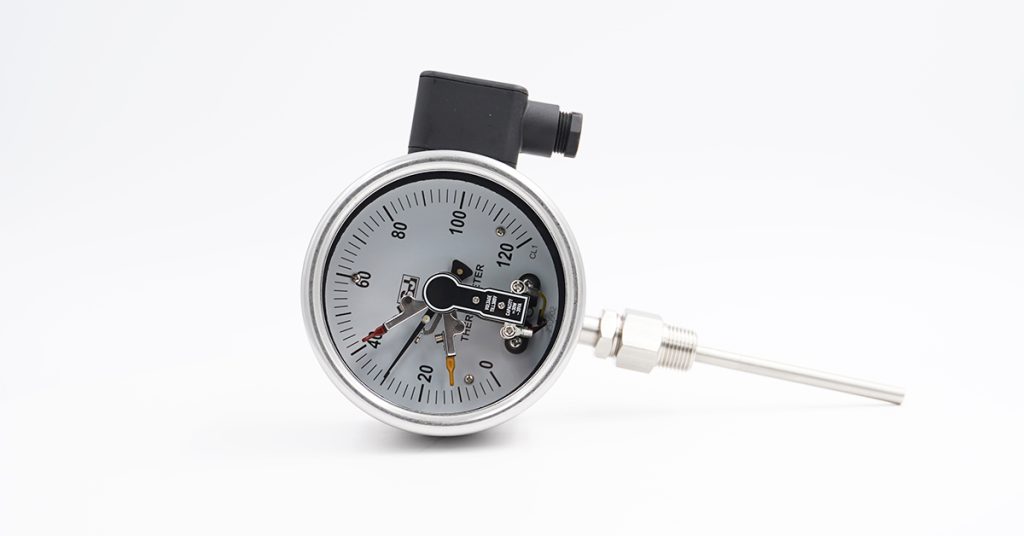

Product Images
