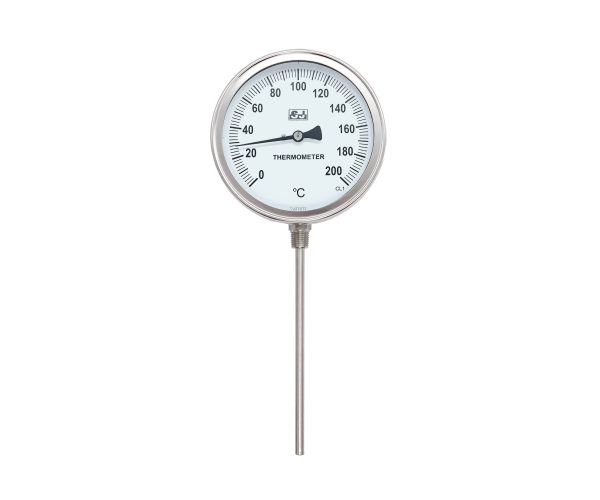

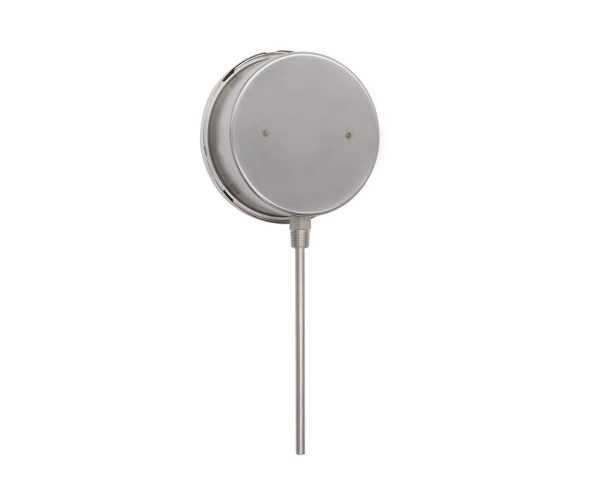

Bimetallic Thermometer, Bottom Mount
Model: MTB.S_BS
- Fixed angle, if you need to adjust the observing angle, you can refer to MTB.S_BA
- Suitable for applications in measuring industry, food industry and sewage treatment
- Responsive after-sales service / Customizable /
- High quality / One-year warranty
- The image is for reference; the actual product willbe based on your custom specifications.
Description
The MTB.S_BS Bimetallic Thermometer features a bottom-mount design with a fixed viewing angle, providing stable and reliable temperature indication in industrial environments. Constructed with a stainless steel case and stem, it offers excellent durability and corrosion resistance. With a wide measuring range of –50°C to 600°C and Class 1.0 accuracy, it is suitable for applications in the measurement industry, food processing, and sewage treatment. The thermometer supports multiple process connections and stem configurations, optional glycerin filling, and IP67 protection, making it a dependable choice for harsh operating conditions where clear, on-site temperature monitoring is required.
Specifications
| Connection location | Bottom mount |
|---|---|
| Nominal size | 3", 4", 5", 6" |
| Scale ranges | -50°C … 600°C |
| Accuracy | CL 1.0 |
| Process connection | 304 SS, 316 SS 1/8, 1/4, 3/8, 1/2, 3/4 PT, G, NPT, M |

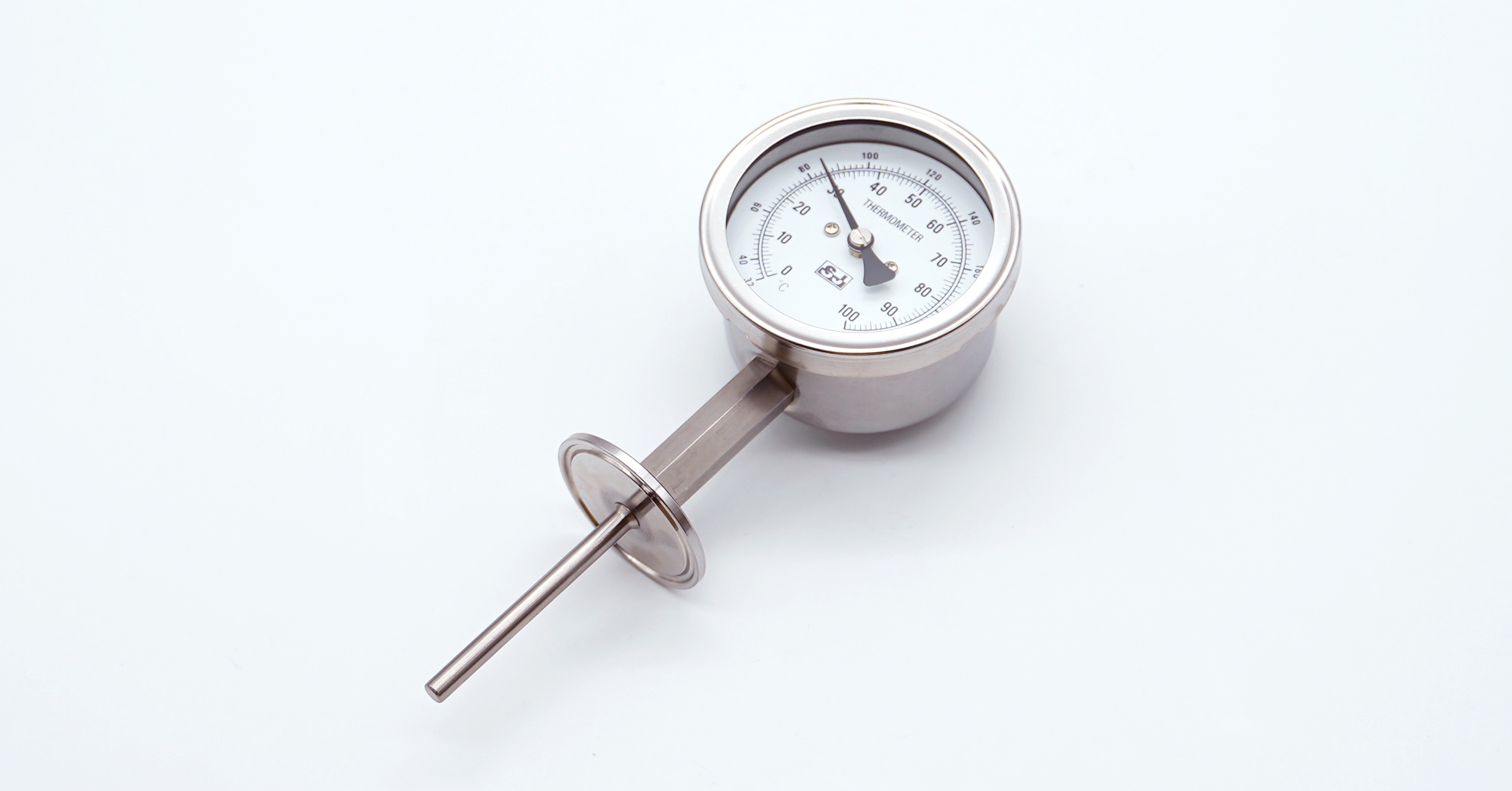

| Sanitary end cap | 1", 1 1/2", 2", 2 1/2", 3", 4" |

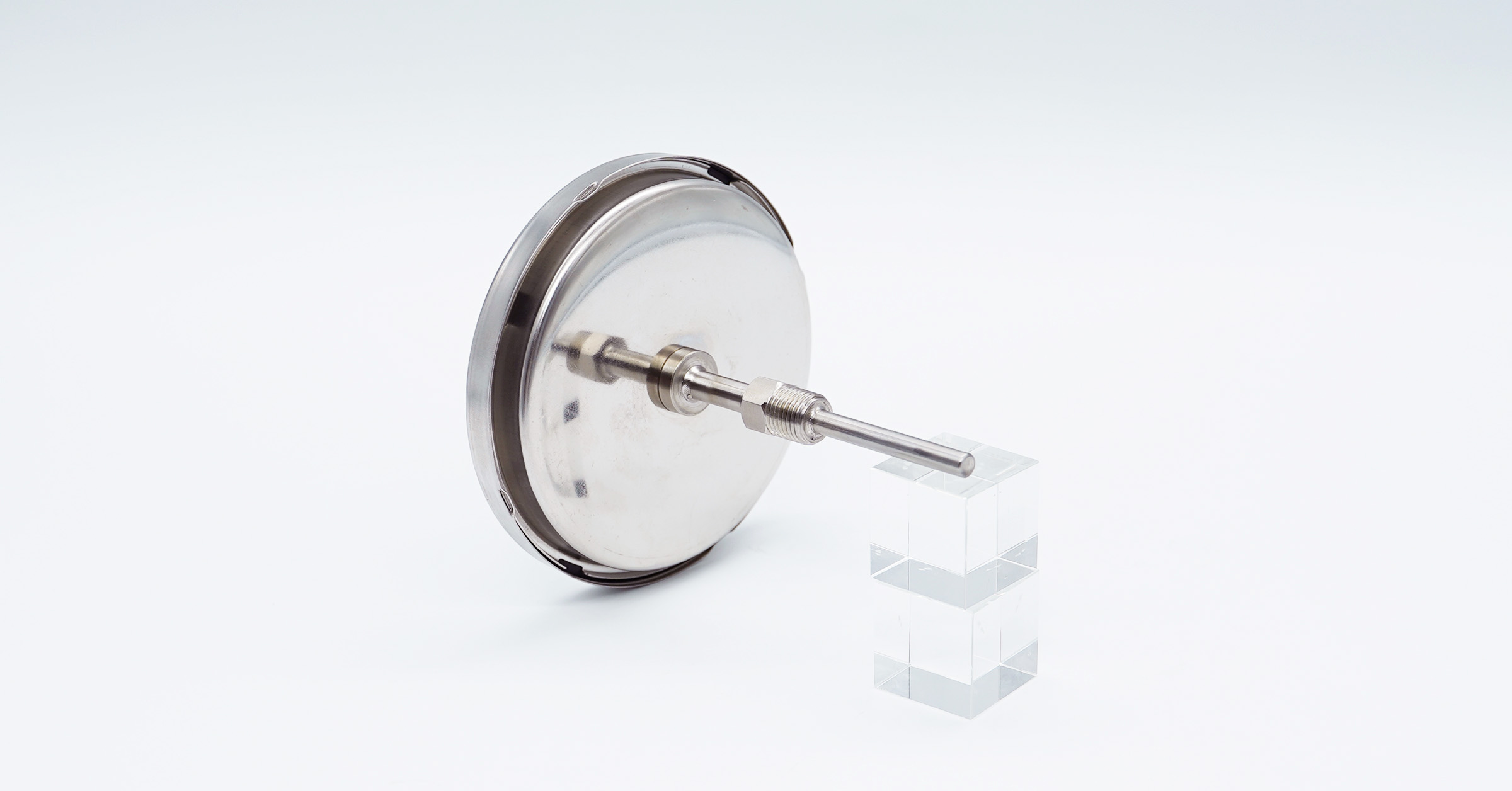

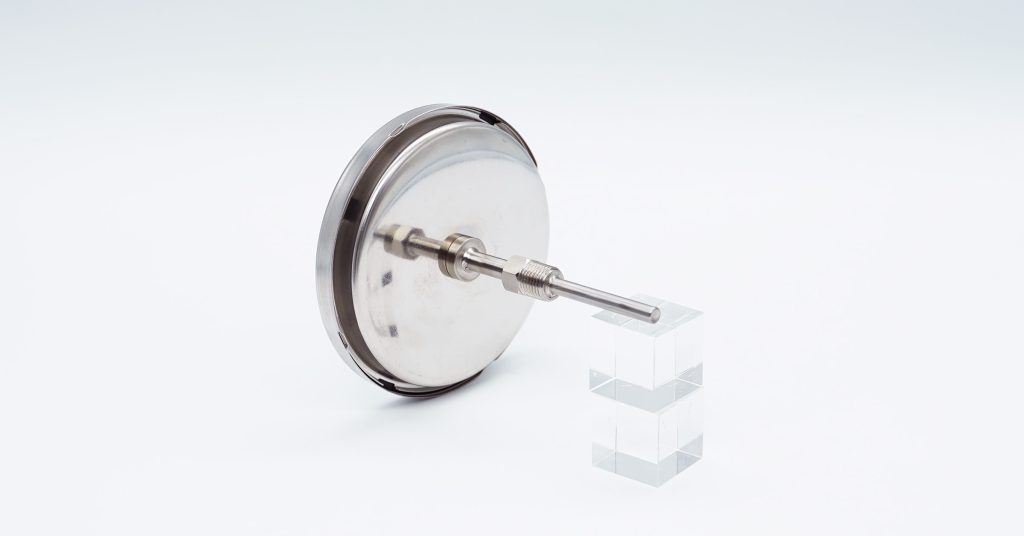

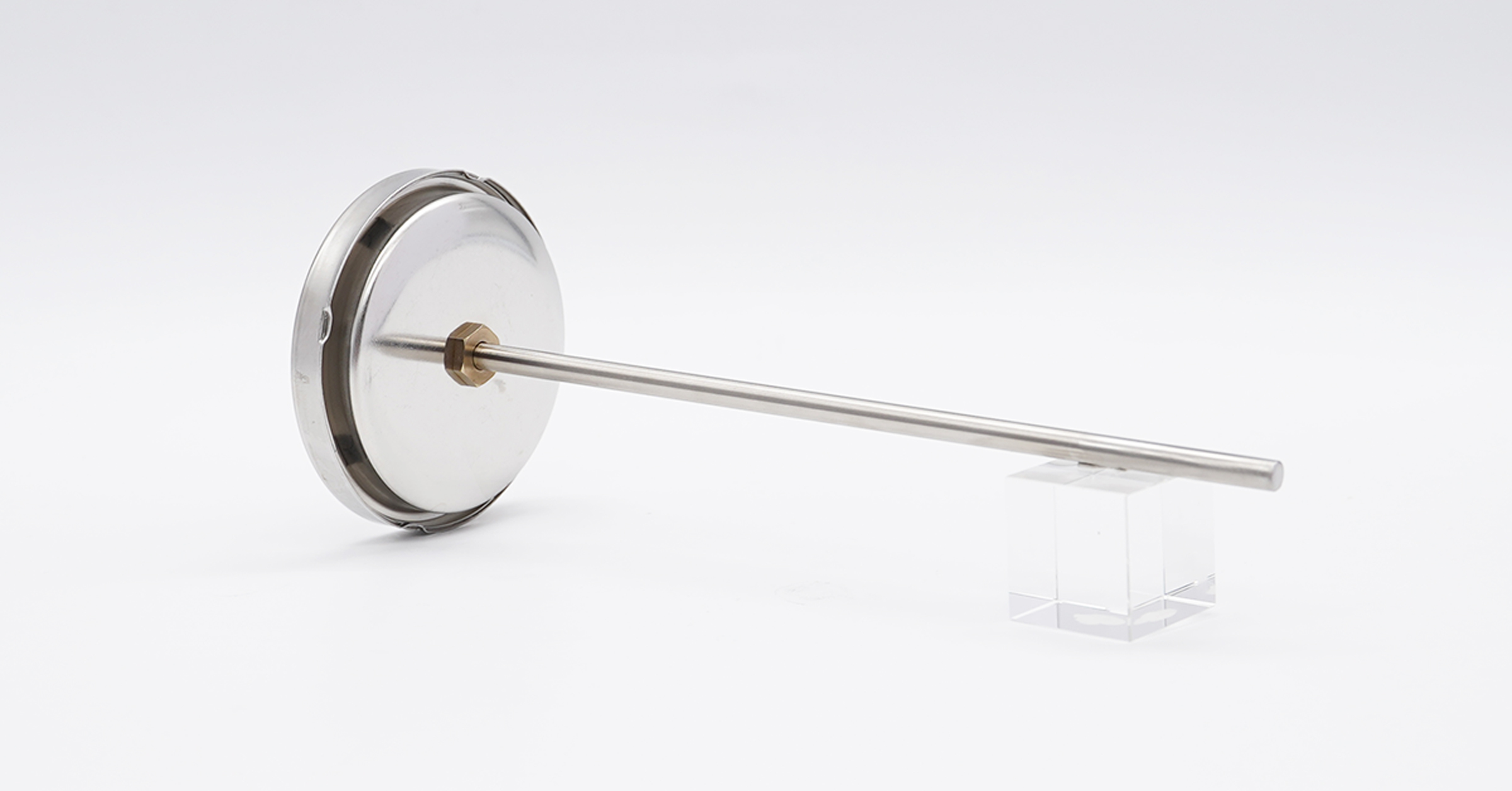

| Connection designs | Male thread, plain stem, compression fitting (sliding on stem), union nut and loose threaded connection, male nut, union nut, sanitary end cap, flange on stem |
| Stem | 304 SS, 316 SS Length: Above 40 mm (without thread) can be customized Diameter: 6, 6.35, 8, 9.5, 10 mm |
| Case/Ring | 304 SS |
| Window | Glass, safety glass |
| Dial | Aluminum alloy Black scale on white |
| Pointer | Black aluminum alloy |
| Filling liquid | Without, glycerine |

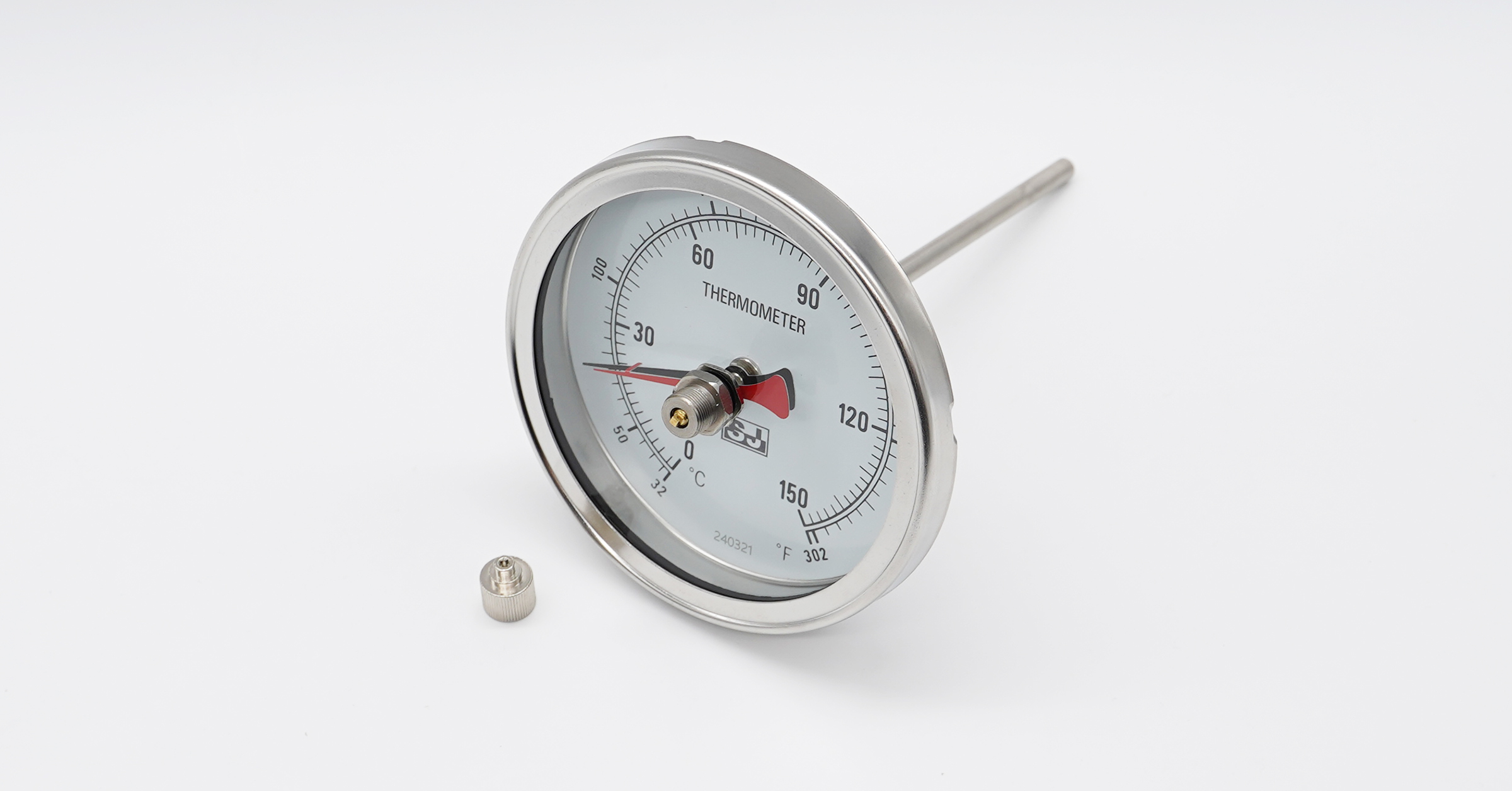

| Accessories (option) | Zero point setting with adjustment screw, thermowell, adjustable set pointer, drag pointer, spacer |
| Protection | IP67 |
