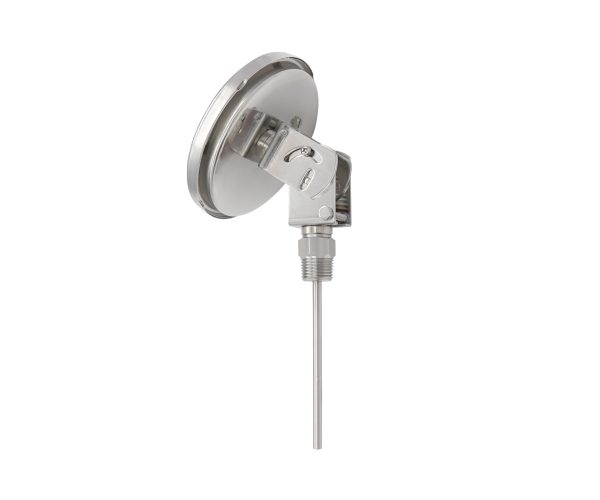

Bimetallic Thermometer, Adjustable Angle
Model: MTB.S_BA
- Adjust vertical angle 90°, suitable for observing from multiple angles
- Used in chemical and petrochemical industries, etc.
- Responsive after-sales service / Customizable /
- High quality / One-year warranty
- The image is for reference; the actual product willbe based on your custom specifications.
Description
The MTB.S_BA adjustable angle bimetallic thermometer features a stainless steel construction and a vertical angle adjustment of up to 90°, allowing flexible viewing from different installation positions and improving readability on site. With a measuring range from -50°C to 600°C and accuracy class CL 1.0, it is well suited for temperature monitoring in chemical, petrochemical, and general industrial processes. The thermometer is available in various dial sizes, process connections, and stem dimensions, including metric, imperial, and sanitary connections, offering a durable, reliable, and highly adaptable solution for diverse applications.
Specifications
| Connection location | Adjustable angle |
|---|---|
| Nominal size | 2.5", 3", 4", 5", 6" |
| Scale ranges | -50°C … 600°C |
| Accuracy | CL 1.0 |
| Process connection | 304 SS, 316 SS 1/8, 1/4, 3/8, 1/2, 3/4 PT, G, NPT, M |
| Sanitary end cap | 1", 1 1/2", 2", 2 1/2", 3", 4" |
| Connection designs | Male thread, plain stem, compression fitting (sliding on stem), union nut and loose threaded connection, male nut, union nut, sanitary end cap, flange on stem |
| Stem | 304 SS, 316 SS Length: Above 40 mm (without thread) can be customized Diameter: 6, 6.35, 8, 9.5, 10 mm |
| Case/Ring | 304 SS |
| Window | Glass, safety glass |
| Dial | Aluminum alloy Black scale on white |
| Pointer | Black aluminum alloy |
| Filling liquid | Without, glycerine |
| Accessories (option) | Zero point setting with adjustment screw, thermowell, adjustable set pointer, drag pointer, spacer |
| Protection | IP67 |
