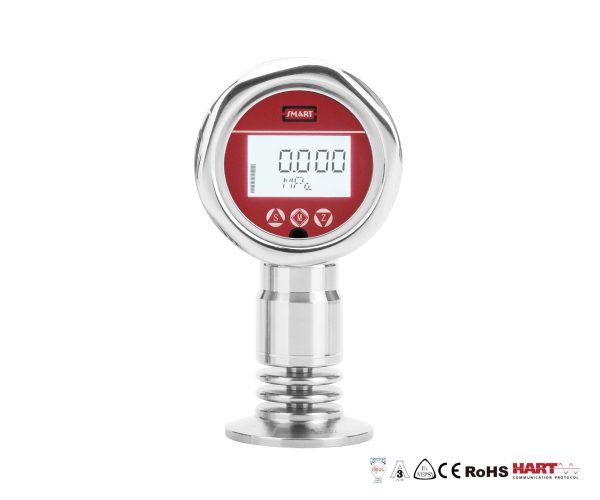

Smart Diaphragm Pressure Transmitter, Hygienic, Stainless Steel Case
Model: MSSMP858-TSF-S
- Isolated air cavity design to prevent condensation and avoid pollution to the media
- Designed for food and pharmaceutical industry, suitable for CIP/SIP cleaning and sterilization
- Double diaphragm overload protection structure can easily cope with high overload tests
- Responsive after-sales service / Customizable /
- High quality / One-year warranty
- The image is for reference; the actual product willbe based on your custom specifications.
Description
This hygienic pressure transmitter features an isolated air cavity design to prevent condensation and avoid media contamination, ideal for food, beverage, and pharmaceutical applications. It is designed for CIP/SIP cleaning and sterilization, ensuring hygiene compliance in clean-process environments. The dual-diaphragm overload protection provides excellent durability under high-pressure conditions. Its stainless steel housing offers corrosion resistance and easy cleaning, while the hygienic connection and digital display ensure safe, precise, and sanitary pressure monitoring. Certified by Ex, IEC, CE, RoHS, and HART
Specifications
| Scale ranges | 10 kPa ... 3 MPa |
|---|---|
| Output signal | 4-20mA, 4-20mA + HART |
| Accuracy | ±0.2% URL (standard), ±0.5% URL |
| Process connection | Tri-Clamp; DIN32676; ISO2852 DIN 11851; SMS; IDF; DRD |
| Approvals | 3A, EHEDG, CE, RoHS, Ex-proof |

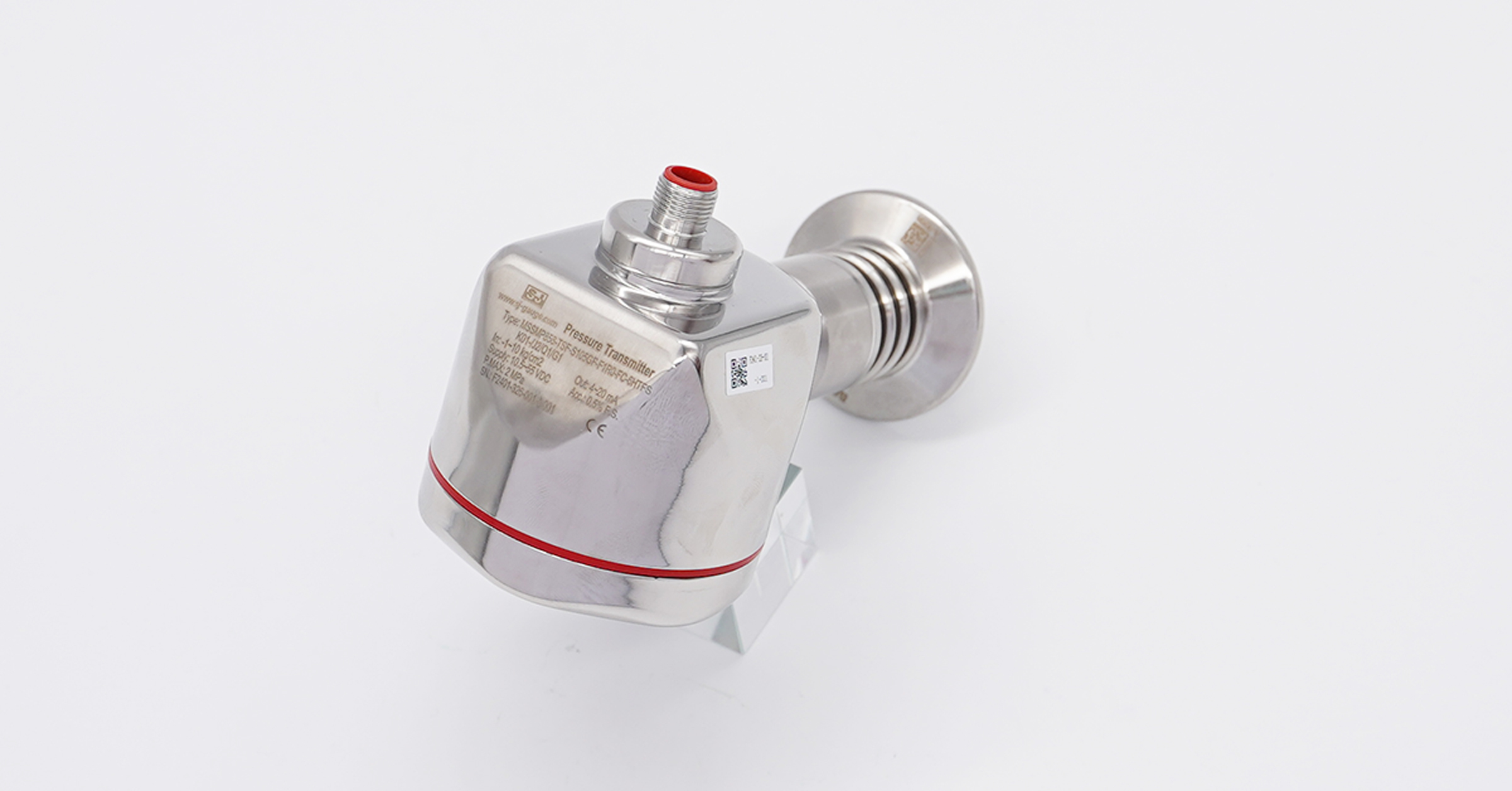

Product Images
