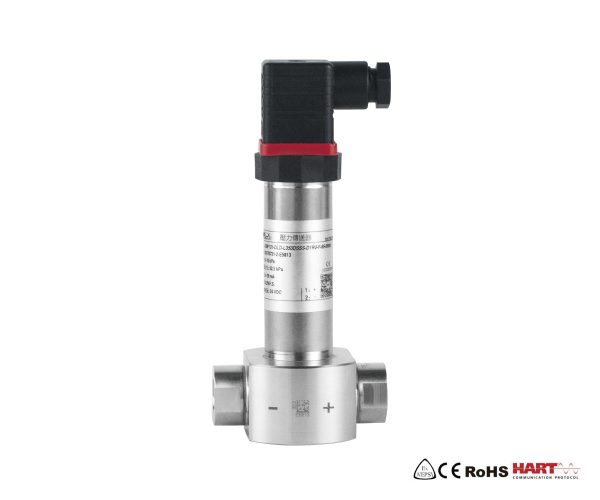

Smart Pressure Transmitter, Compact, Differential Pressure
Model: MSSMP131-DLD
- Pressure impact tests and time drift tests to ensure constant quality
- Original calibration technology, realize parameters setting easily without any tools
- Adopts patent pressure sensor technology, flexibly faces all kinds of challenges of working conditions
- Responsive after-sales service / Customizable /
- High quality / One-year warranty
- The image is for reference; the actual product willbe based on your custom specifications.
Description
This hygienic pressure transmitter features an isolated air cavity design to prevent condensation and avoid media contamination, ideal for food, beverage, and pharmaceutical applications. It is designed for CIP/SIP cleaning and sterilization, ensuring hygiene compliance in clean-process environments. The dual-diaphragm overload protection provides excellent durability under high-pressure conditions. Its stainless steel housing offers corrosion resistance and easy cleaning, while the hygienic connection and digital display ensure safe, precise, and sanitary pressure monitoring. Certified by Ex, IEC, CE, RoHS, and HART
Specifications
| Scale ranges | 10 kPa ... 3.5 MPa |
|---|---|
| Output signal | 4-20mA, 4-20mA+HART 0.5-4.5 VDC, Modbus-RTU/RS485 |
| Accuracy | ±0.2% URL (standard), ±0.5% URL, ±0.1% URL |
| Process connection | M 20 x 1.5(M), G 1/2(M), G 1/4(M), G 1/4(F), 1/4 NPT(M), 1/4 NPT(F) |
| Measuring medium | The fluids which compatible with wetted parts |
| Medium temperature | -40℃ ... 85℃ |
| Electrical connections | DIN43650 connector, IP65 |
