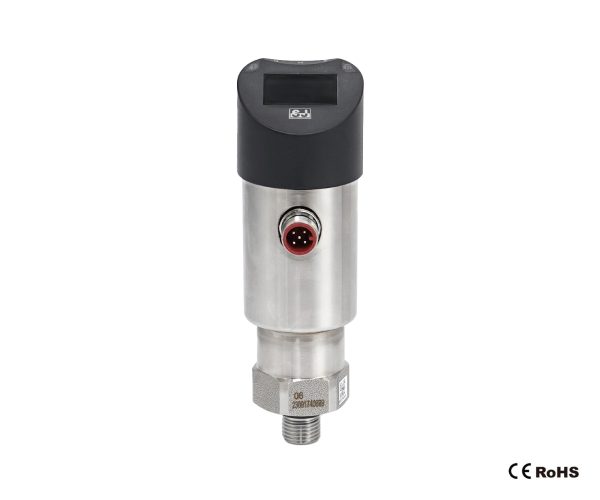

Pressure Switch, Electronic
Model: MSPS131-TSR
- Simple structure, easy to operate, high overload, high accuracy
- OLED display function can achieve horizontal 180° rotation for easy observing
- As an alternative, it has specifications corresponding to WIKA PSD30
- Responsive after-sales service / Customizable /
- High quality / One-year warranty
- The image is for reference; the actual product willbe based on your custom specifications.
Description
This electronic pressure switch features a simple and robust design, offering easy operation, high overload capability, and high measurement accuracy. It is equipped with an OLED display that supports 180° horizontal rotation for flexible viewing in various installation orientations. The model provides specifications equivalent to WIKA PSD-30, making it suitable for industrial automation, hydraulic systems, and machinery pressure monitoring. Certified with CE and RoHS and backed by a one-year warranty with customization options, it is an excellent solution for reliable and user-friendly pressure switching applications.
Specifications
| Scale ranges | 1 kPa ... 40 MPa |
|---|---|
| Output signal | 4-20mA, 0.5-4.5 VDC Modbus-RTU/RS485 PNP or NPN output |
| Accuracy | ±0.1% URL |
| Stability | ±0.2% URL/ 5 years |
| Medium temperature | -40℃ ... 85℃ |
| Process connection | M20 x 1.5 (M), G 1/2 (M), G 1/4 (M) 1/2 NPT (M/F), 1/4 NPT (M/F) |
| Electrical connections | M 12 x 1, 5 pins, circular connector, IP67 |
