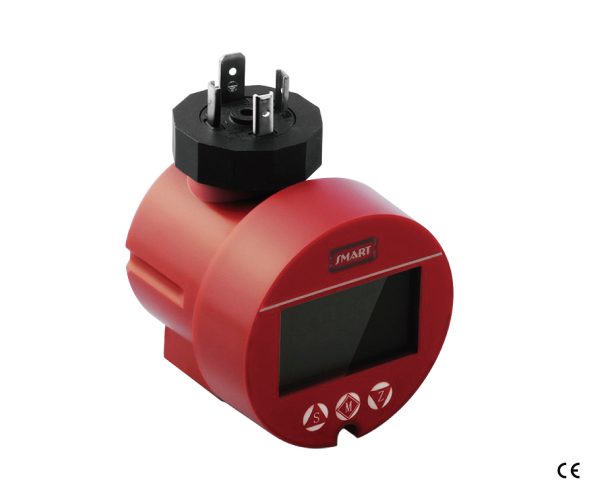

Attachable Digital Indicator for Transmitter
Model: MSLCD11
- Big screen, highlight backlight display
- Multiple display units, flexible 3 buttons setting
- Suitable for 4-20mA transmitters site display and on-off alarm output
- Responsive after-sales service / Customizable /
- High quality / One-year warranty
- The image is for reference; the actual product willbe based on your custom specifications.
Description
The MSLCD11 is an intelligent on-site display unit designed for 4–20 mA two-wire systems, allowing direct installation on pressure, temperature, or flow transmitters for real-time value indication. Featuring a large LCD with high-brightness backlight, it provides a clear and easy-to-read 5-digit high-accuracy display, along with flexible unit selection and parameter setting via a three-button interface. Optional one or two on/off alarm outputs are available. With lightning surge protection, reverse polarity protection, and an IP65 protection rating, the MSLCD11 is ideal for industrial field display, alarm indication, and basic control integration.
Specifications
| Power supply | Two-loop power supply, 4-20mA Max pressure drop: Without backlight 6 VDC With backlight 8 VDC |
|---|---|
| Output signal | 4-20mA |
| Site operation | 3 buttons, all parameters can be modified at the site |
| Accuracy | ±0.1%F.S., ±1 bit |
| ADC sampling | 24 bit |
| Case/ring | ABS + PC |
| Rotation angle | 350° |
| Ambient temperature | -20℃ ... 70℃ |
| Humidity limit | 5% ... 85% RH |
