Valve Manifold for Pressure Instrument
Model: MSFZ20~50
- Divided into 2-valve manifolds, 3-valve manifolds, and 5-valve manifolds based on the applications
- Shut-off, pressure compensating, purge and vent valves for differential pressure measuring instruments
- Widely used in industries of petroleum, chemical, metallurgical, power, liquid, natural gas, and various conveying pipelines

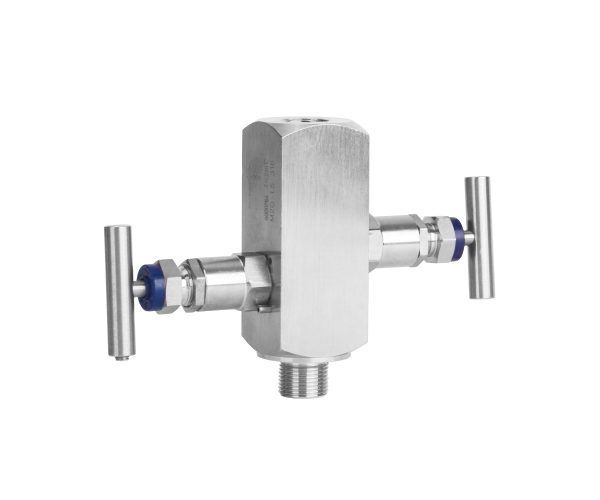

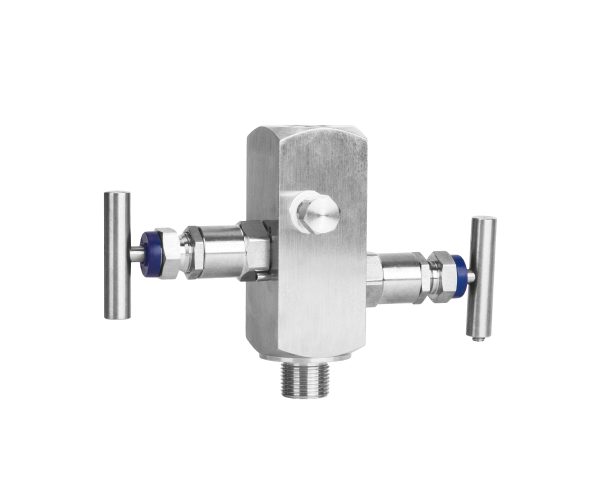

- Figure 1, 2: MSFZ20, 2-valve manifold

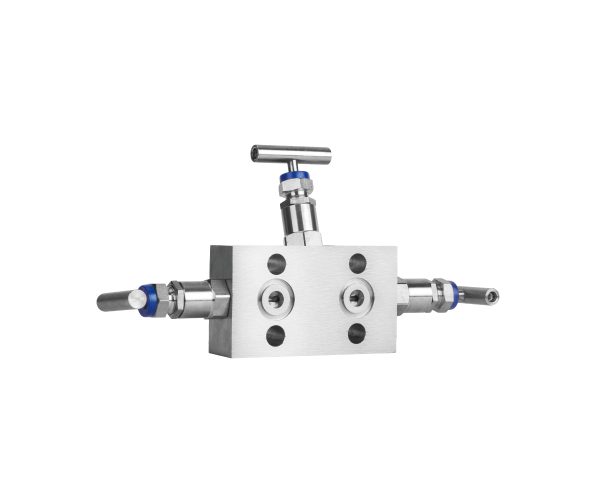

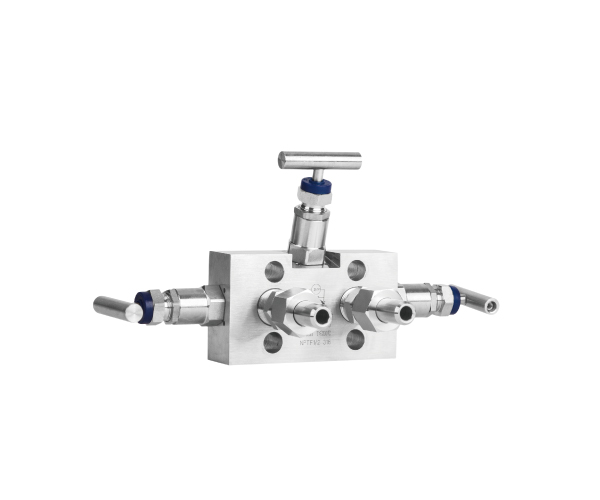

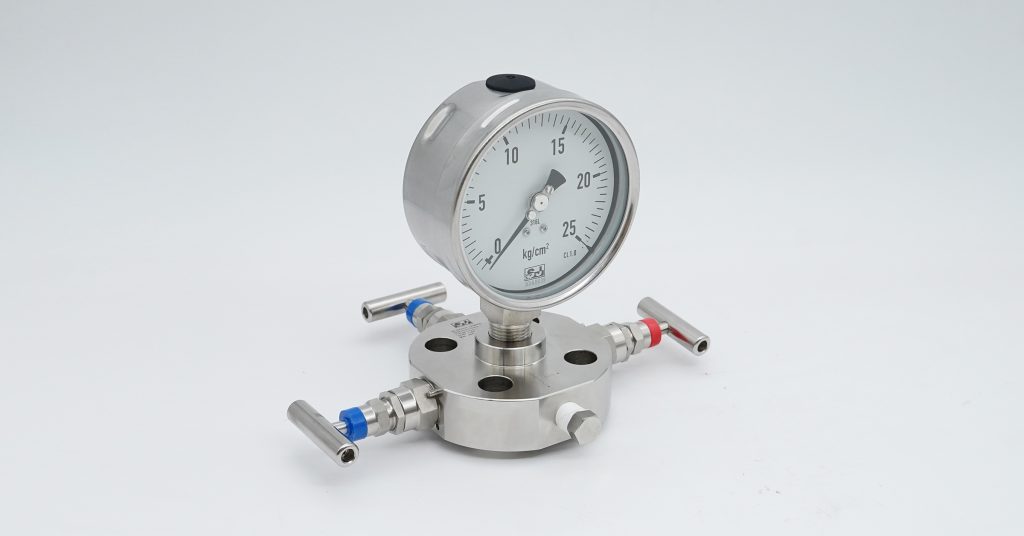

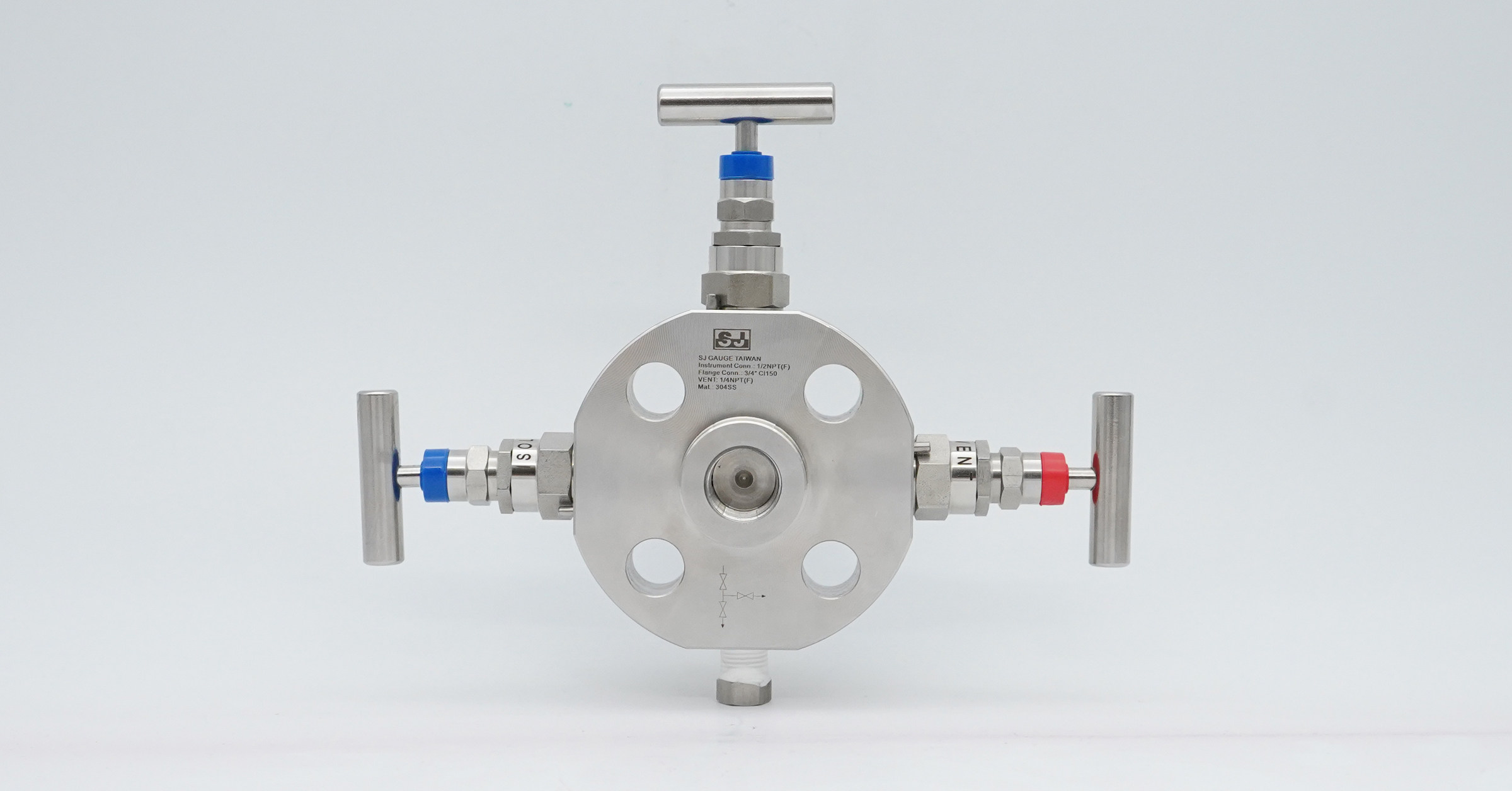

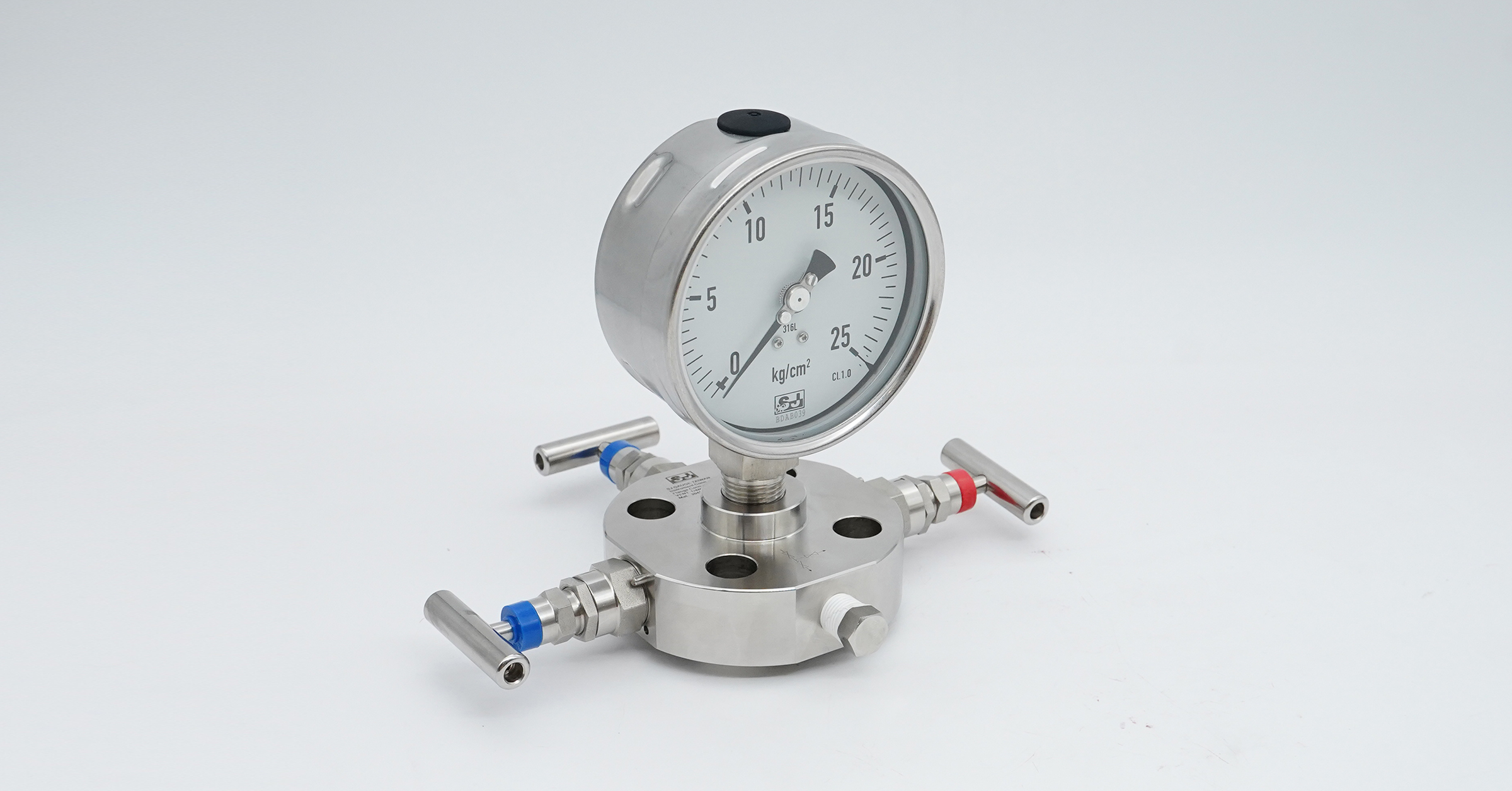

- Figure 3, 4: MSFZ30, 3-valve manifold

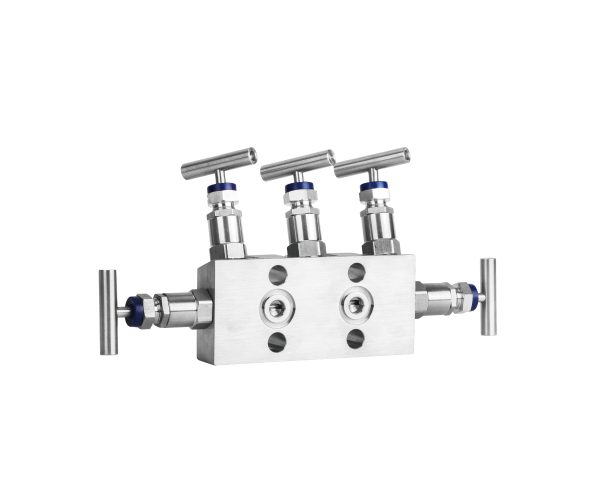

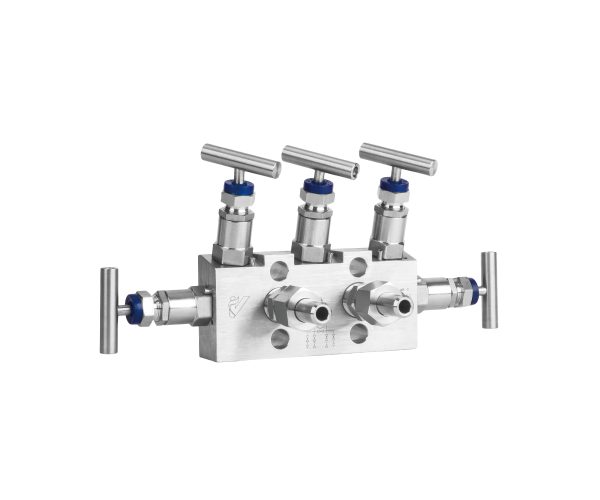

- Figure 5, 6: MSFZ50, 5-valve manifold
- Responsive after-sales service / Customizable /
- High quality / One-year warranty
- The image is for reference; the actual product willbe based on your custom specifications.
Specifications
| Safety shotpin | Adopting stainless steel pin to prevent the valve seat out off the valve body due to vibration |
|---|---|
| Valve body design | Integral structure, firm and reliable |
| Valve seat seal | Stainless steel seal, safe and reliable |
| Valve spool | High-performance duplex stainless steel and spherical positioning function to improve sealing performance and service life of the valve |
| Lubricating grease | Imported grease used between the sealing gasket and adjusting screw to reduce friction and improve sealing performance |
| Material | 304 SS, 316 SS, Monel, Hastelloy C |
| Marked cover | Green, red, and blue marks for the pressure-leading valve, balance valve, and draining valve respectively |
| Stuffing box filler | PTFE |
| Working pressure | 32MPa, 42MPa |
| Working temperature | ≦150℃ |
| Ambient temperature | -30℃ ... +93℃ |
| Communication | RS485 Modbus RTU mode |
| Baud rate | 19200/9600/4800/2400 bps |
| Tempering temperature | 100 ppm/℃ (0℃ ... 60℃) |
| Ambient temperature& humidity | 0℃ ... 60℃/20% ... 90% RH (non-condensing) |
