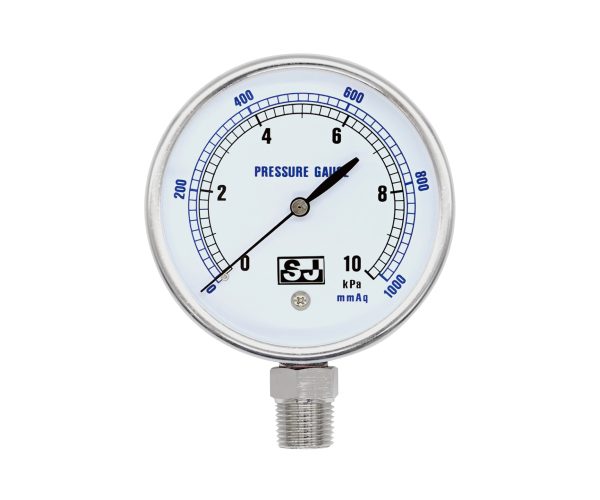

Low Pressure Gauge with Stainless Steel Case
Model: PRSM
- For gaseous or liquid pressure media that are compatible with copper alloy parts, except liquid
- Zero-point correction available for troubleshooting
- Stainless steel case — other different materials available: PRM, PRSSM.TU
- Responsive after-sales service / Customizable /
- High quality / One-year warranty
- The image is for reference; the actual product willbe based on your custom specifications.
Description
The PRSM is a low-pressure capsule gauge featuring a stainless-steel case and designed for gaseous media compatible with copper alloy components (excluding liquids). It offers measuring ranges from 0–300 mmAq to 0–5000 mmAq, including vacuum and compound options. With chromium-plated copper wetted parts and zero-point adjustment capability, the gauge is available in 2.5″, 3″, and 4″ dial sizes, using acrylic windows for 2.5″ and glass windows for 3″ and 4″. The PRSM is ideal for HVAC systems, cleanrooms, laboratories, medical gas supply, and general low-pressure monitoring applications, combining the durability of a stainless-steel case with the sensitivity of a capsule gauge.
Specifications
| Connection location | Bottom mount, back mount |
|---|---|
| Nominal size | 2.5", 3", 4" |
| Scale ranges | 0 … 300 mmAq to 0 … 5000 mmAq, or other equivalent units of pressure, vacuum or compound |
| Accuracy | ASME B40.1 grade B ±3/2/3% |
| Process connection | Chromium-plated copper 1/4, 3/8, 1/2 PT, G, NPT |
| Case/Ring | 304 SS |
| Window | 2.5": acrylic; 3", 4": glass |
| Dial | Aluminum alloy, black scale on white |
| Pointer | Black aluminum alloy |
| Movement | Copper alloy |
| Capsule element | Copper alloy |
| Medium temperature | -20°C ... 60°C |
| Pressure limitation | Steady: 0.75 x full scale value Fluctuating: 0.6 x full scale value |

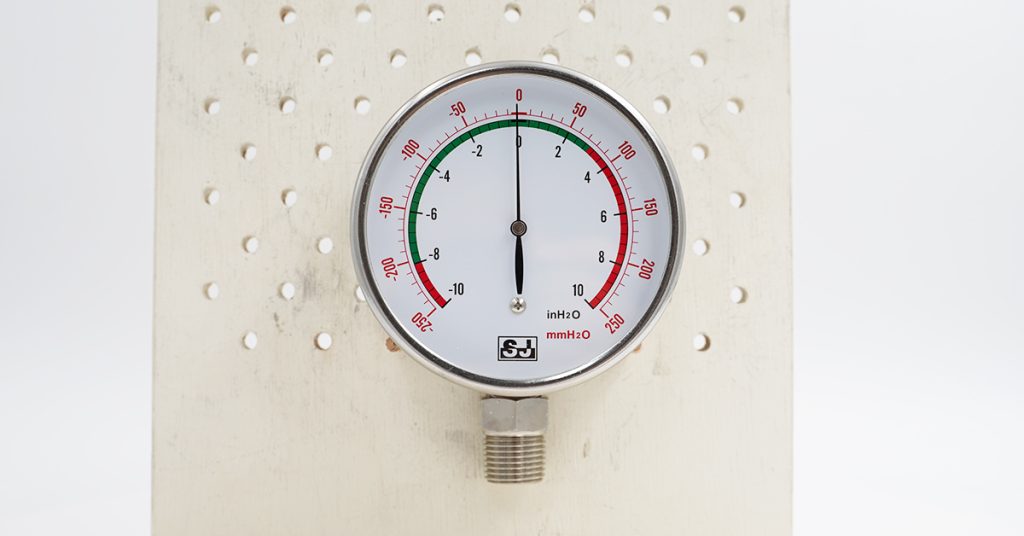

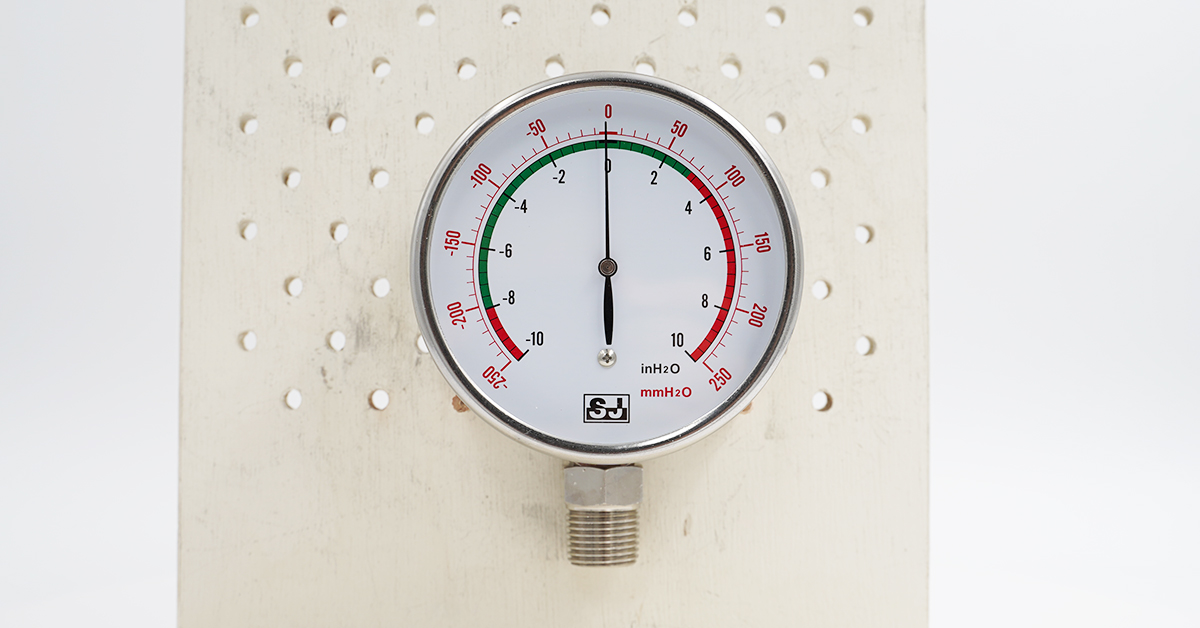

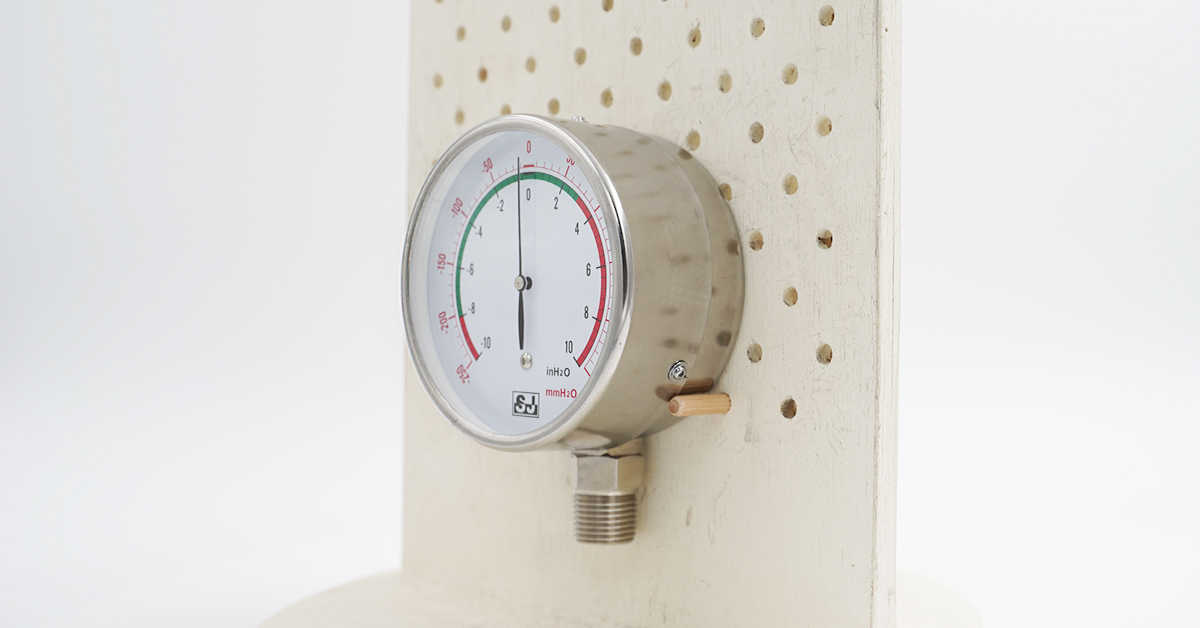

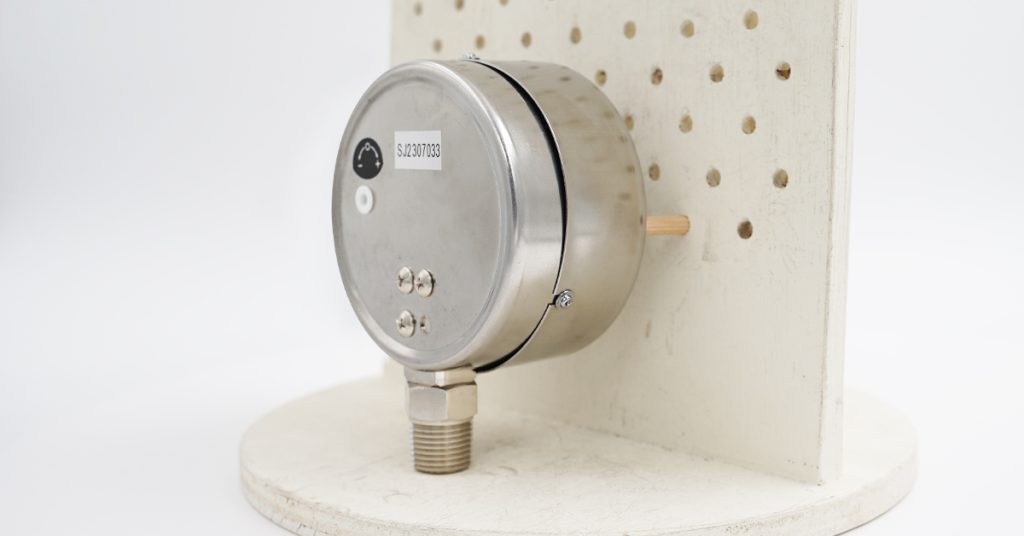

Product Images
