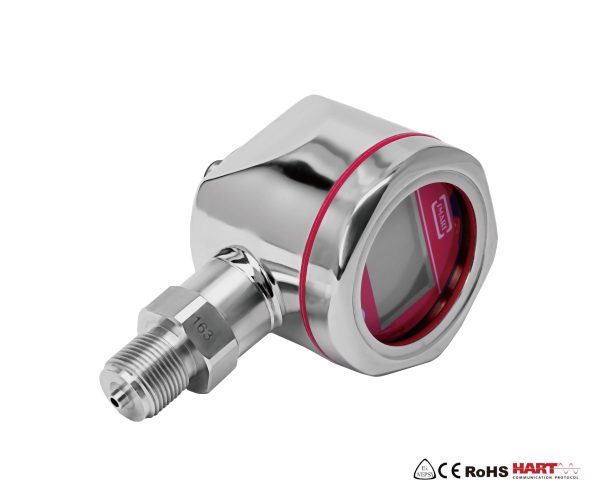

Industrial Smart Pressure Transmitter, Stainless Steel Case
Model: MSDMP305X-TLF
- Superb stainless steel welding technology and surface treatment process
- Strong safeguard with high static pressure and high overload
- The HART manual controller or the HART software can realize measurement information configuration remotely
- Responsive after-sales service / Customizable /
- High quality / One-year warranty
- The image is for reference; the actual product willbe based on your custom specifications.
Description
This transmitter features a fully-sealed mono silicon sensor and dual-diaphragm overload protection, ensuring high accuracy and durability under high pressure. Equipped with ASIC and SMT modules for stable, anti-interference signal transmission, its lightweight aluminum-alloy terminal provides excellent corrosion resistance. Ideal for differential pressure and level measurement of liquids, gases, and steam. Certified by Ex, IEC, CE, RoHS, and HART
Specifications
| Scale ranges | 5 kPa ... 100 MPa |
|---|---|
| Output signal | 4-20mA, 4-20mA+HART |
| Accuracy | ±0.2% URL (standard), ±0.5% URL |
| Stability | ±0.1% URL/ year |
| Diaphragm | SUS 316L, Hastelloy C |
| Medium temperature | -40℃ ... 120℃ |
| IP rating | IP 67 |
| Measuring medium | liquid, gas, or steam |
| Approvals | CE, Ex-proof, ROHS |
| Process connection | M 20 x 1.5(M), G 1/2(M), G 1/4(M), 1/2 NPT, 1/4 NPT |

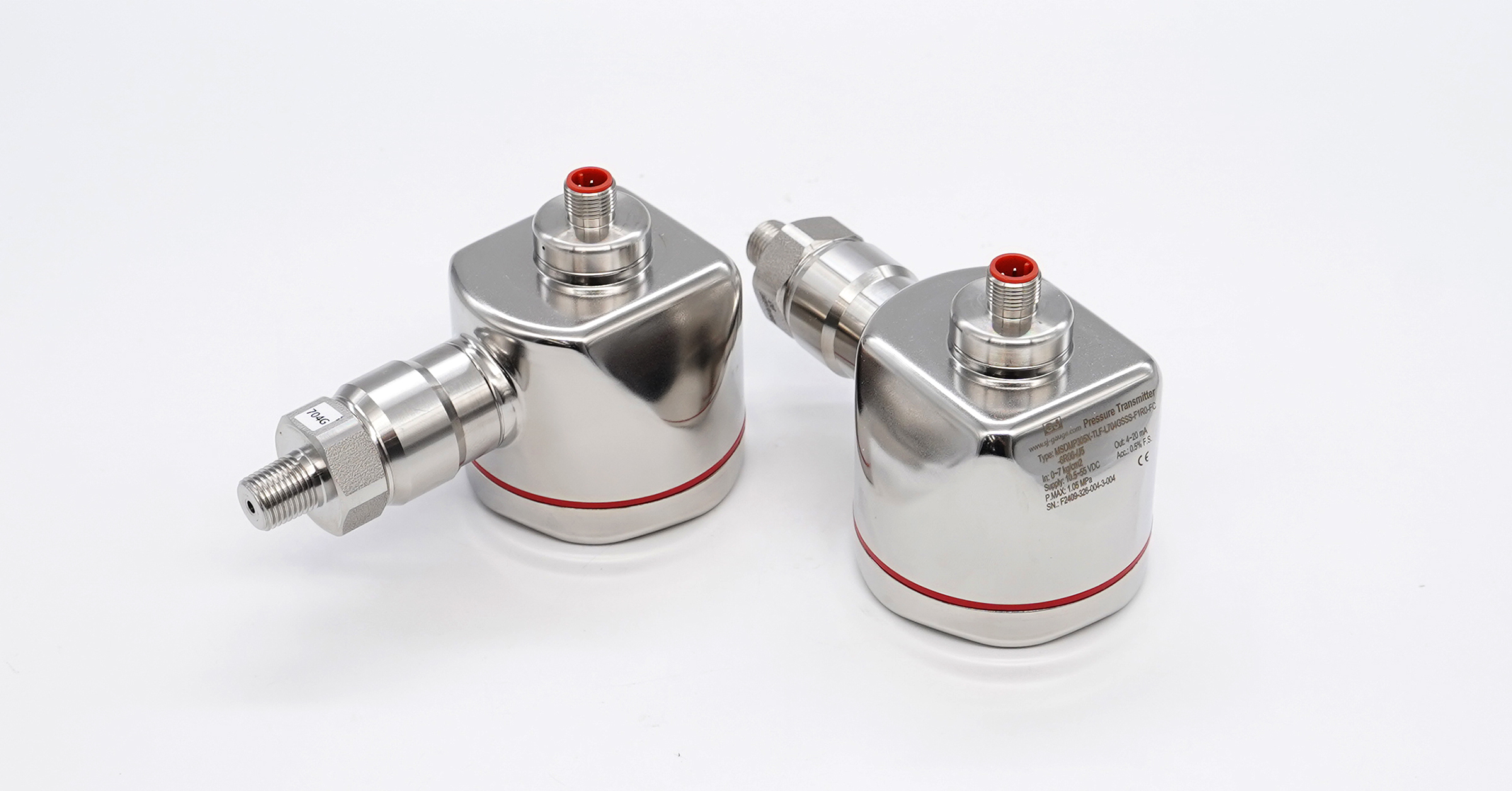

Product Images
