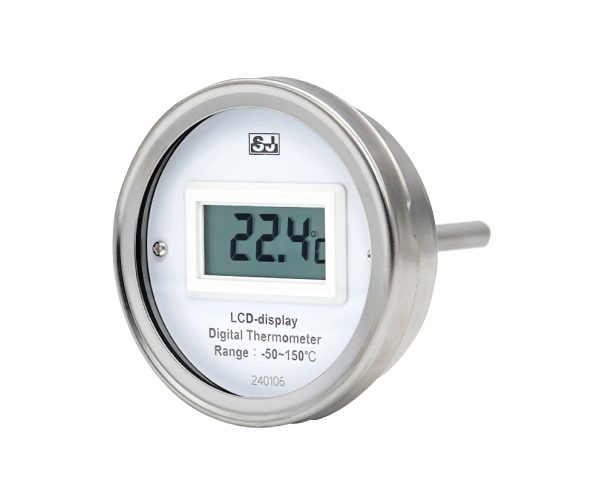

Digital Thermometer, LCD Display
Model: DTHD
- Digital LCD thermometer allows displaying on-site temperature instantly
- Digital thermometer with clear and easy-to-read, 4-digit LCD display screen
- Responsive after-sales service / Customizable /
- High quality / One-year warranty
- The image is for reference; the actual product willbe based on your custom specifications.
Description
The MTR.S-E is an expansion thermometer featuring a capillary system with integrated warning and alarm contacts, designed for applications requiring both local temperature indication and control or alarm signaling. The capillary length can be customized for remote temperature monitoring in high-temperature or hard-to-access locations. Constructed with stainless steel and capable of measuring temperatures up to 700°C, the MTR.S-E offers flexible mounting options and various contact configurations, making it ideal for use in industrial furnaces, chemical processing equipment, energy systems, and general process temperature monitoring.
Specifications
| Connection location | location Bottom mount, back mount, adjustable angle |
|---|---|
| Nominal size | 3", 4" |
| Scale ranges | -50℃ … 150℃ |
| Accuracy | ±1°C |
| Process connection | 304 SS, 316 SS 1/4, 3/8, 1/2, 3/4 PT, G, NPT, M |
| Sanitary End Cap | 1", 1 1/2", 2", 2 1/2", 3", 4" |
| Connection designs | Male thread, plain stem, compression fitting (sliding on stem), union nut and loose threaded connection, male nut, union nut, sanitary end cap, flange on stem |
| Stem | 304 SS, 316 SS Length: 30 ... 950 mm (without thread) can be customized Diameter: 7.4, 8, 9.5, 10, 12 mm |
| Case/Ring | 304 SS |
| Window | Glass, safety glass |
| Dial | 4-digit LCD display screen |
| Battery specification | LR44 x1, can be replaced |
| Accessories (options) | Thermowell |
| Thermowell Ambient temperature | 0℃ … 60°C |
