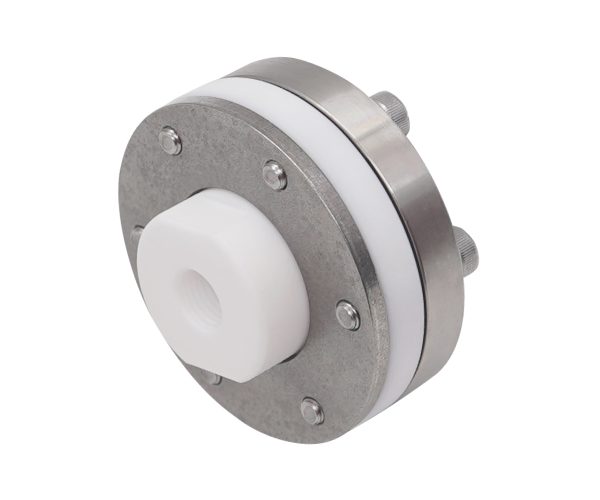

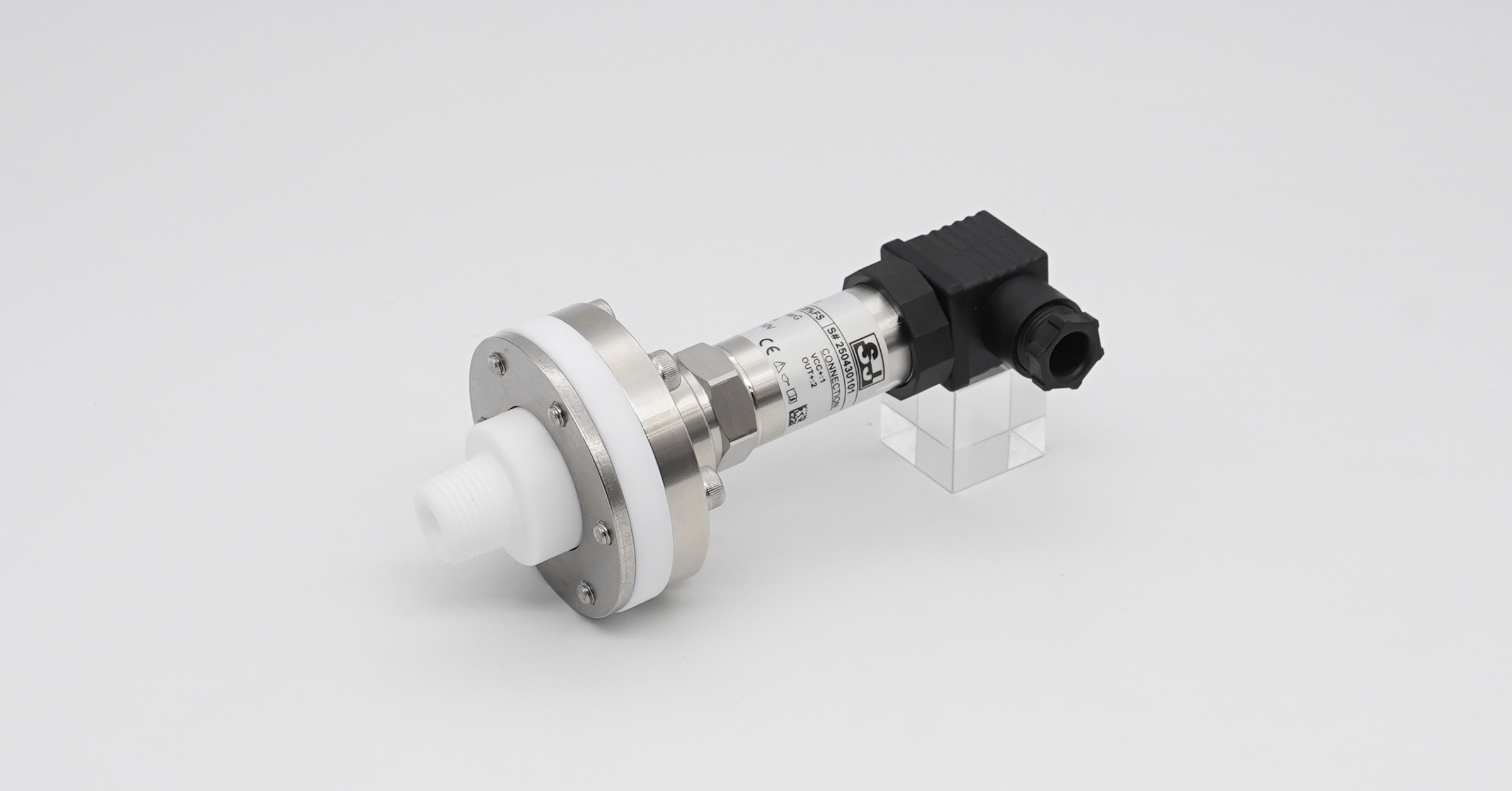

Threaded Connection, Upper Metal, Lower Plastic
Model: DIT-USLP
- A metal upper body that connects to the instrument is tight and durable
- Large selection of top housings and process connections
- Ideal for processing corrosive fluids or other environmentally harmful medium
- Responsive after-sales service / Customizable /
- High quality / One-year warranty
- The image is for reference; the actual product willbe based on your custom specifications.
Description

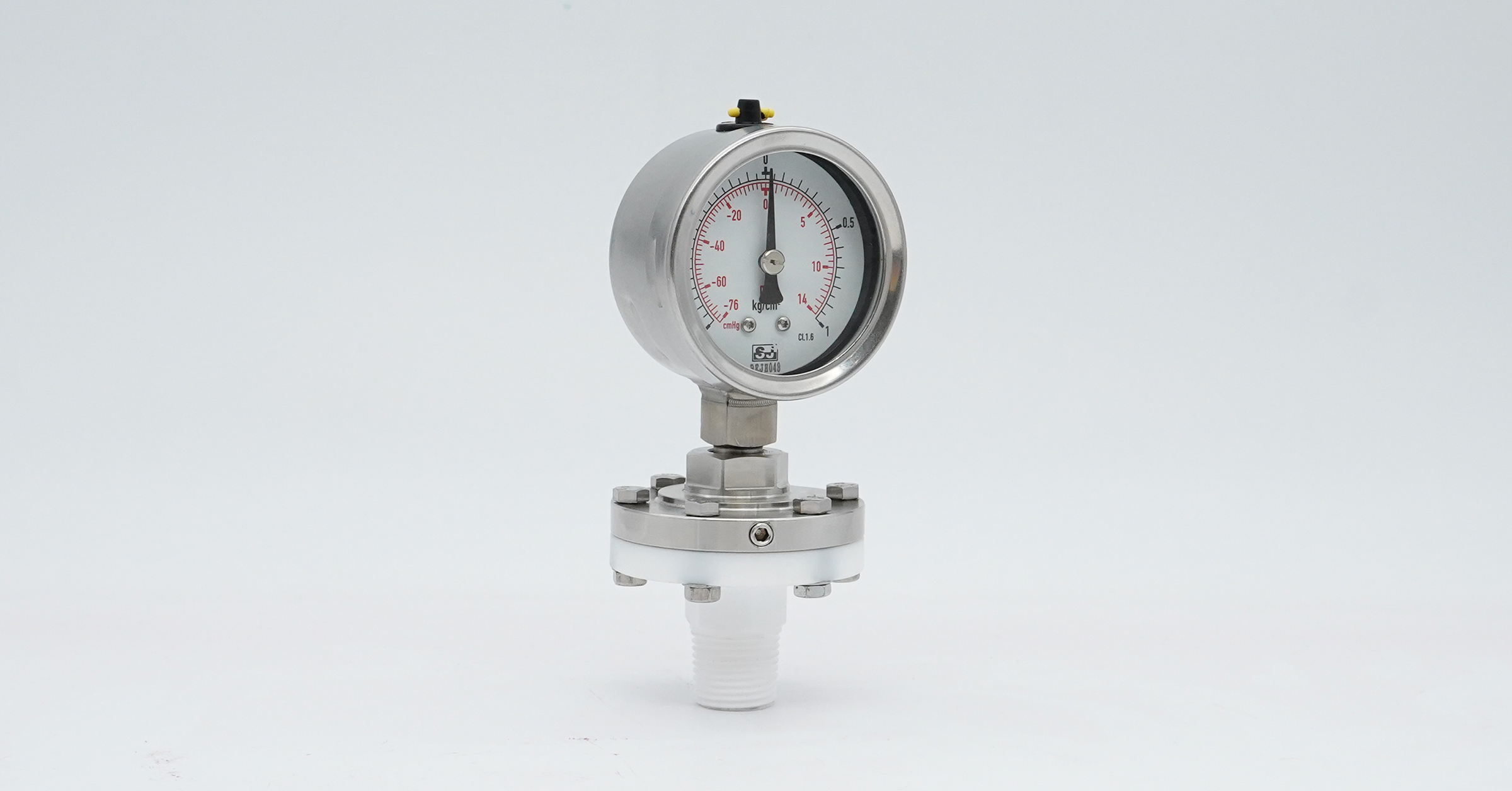

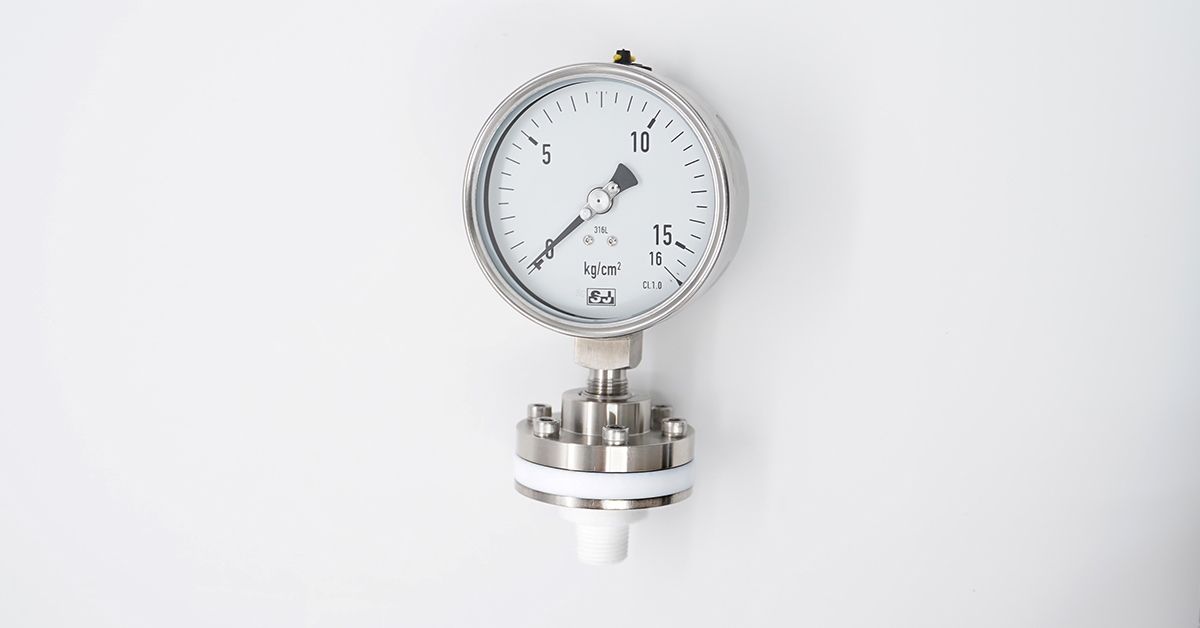

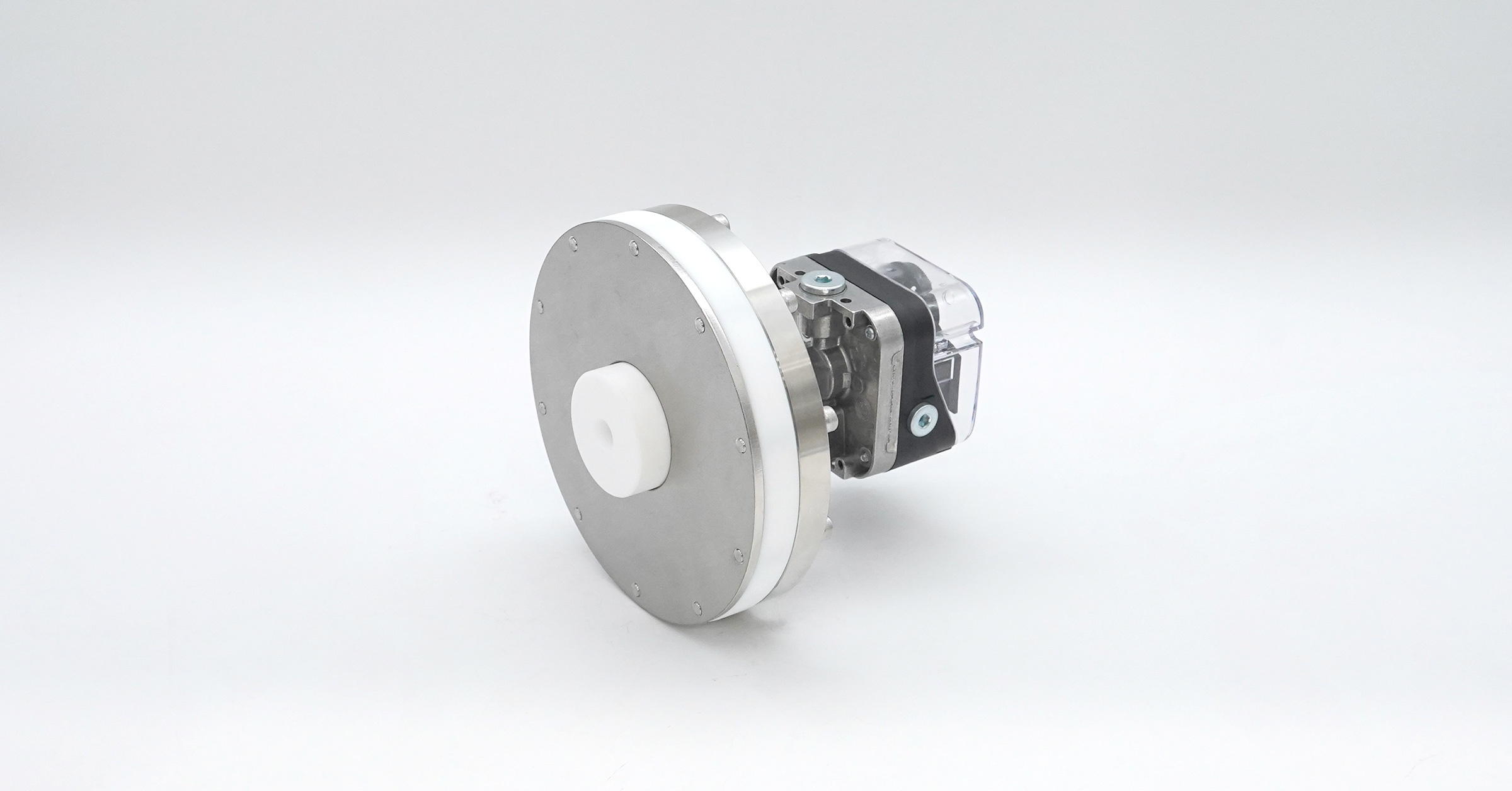

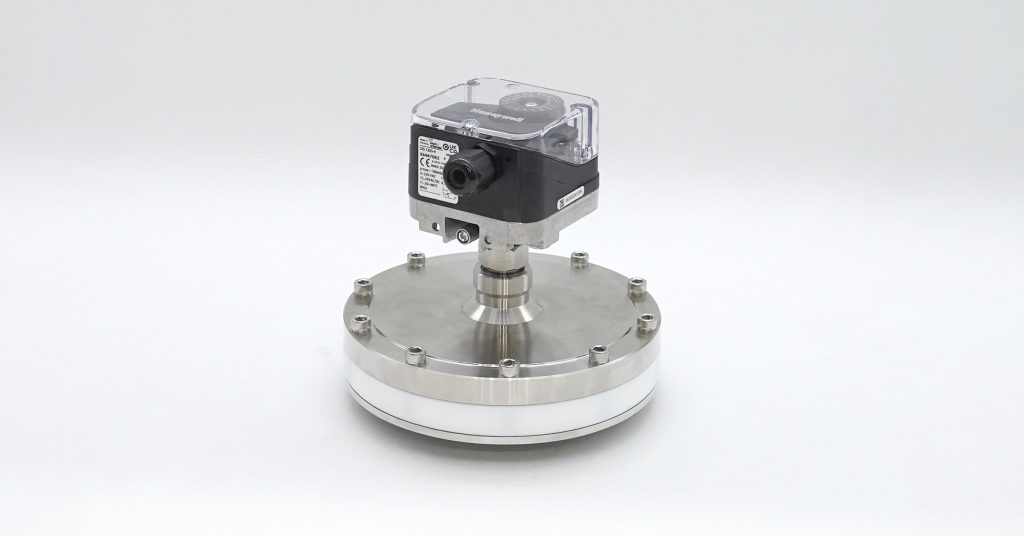

The DIT-USLP diaphragm seal features a metal upper body for strong and reliable instrument connection, paired with a corrosion-resistant plastic lower body to handle aggressive chemical media. This hybrid construction enhances durability, chemical resistance, and environmental safety, making it ideal for corrosive fluids or sensitive process media. With multiple material and size options, it is compatible with pressure gauges and transmitters and is widely used in chemical processing, wastewater treatment, electroplating systems, chemical tanks, and semiconductor chemical supply lines, providing a dependable and long-lasting pressure measurement solution.
Specifications
| Diameter | 70 mm, 90 mm, 130 mm, 160 mm |
|---|---|
| Process connection | Male, female, socket welding 1/4, 3/8, 1/2, 3/4, 1 PT, G, NPT, M |
| Instrument connection | 1/4, 3/8, 1/2 PT, G, NPT, M |
| Scale ranges | 70 mm Pressure gauge: -1 ... 3 bar, 0 ... 2.5 bar to 0 ... 10 bar Transmitter: -1 … 0.6, 0 ... 0.3 bar to 0 ... 10 bar 90 mm Pressure gauge: -1 ... 1.5 bar, 0 ... 0.6 bar to 0 ... 10 bar Transmitter: -1 … 0.6, 0 ... 0.1 bar to 0 ... 10 bar 130 mm Pressure gauge: -1 ... 0.6 bar, 0 ... 0.25 bar to 0 ... 10 bar Transmitter: -1 … 0.6 bar, 0 ... 0.1 bar to 0 ... 10 bar 160 mm Pressure gauge: -0.1 ... 0.1 bar, 0 ... 0.1 bar to 0 ... 10 bar Transmitter: -0.05 … 0.05 bar to 0 ... 10 bar or all other equivalent vacuum or combined pressure and vacuum ranges |
| Material | Upper body: 304 SS, 316 SS, 316L SS, Dual phase steel, Hastelloy C276, Tantalum, Monel 400, Titanium, Nickel 200 Lower body: PP, PVC, PVDF, PTFE Diaphragm: PTFE, Hastelloy C276, Tantalum, Monel 400, Titanium, Nickel 200, Silicone, Viton, 316L+PTFE, 316L+PTFE coating |
| Medium temperature | 0℃ ... 60℃ (PVC), 0℃ ... 80℃ (PP), -40℃ ... 120℃ (PVDF), -200℃ ... 240℃ (PTFE) |
| Others | Welded with instrument |
