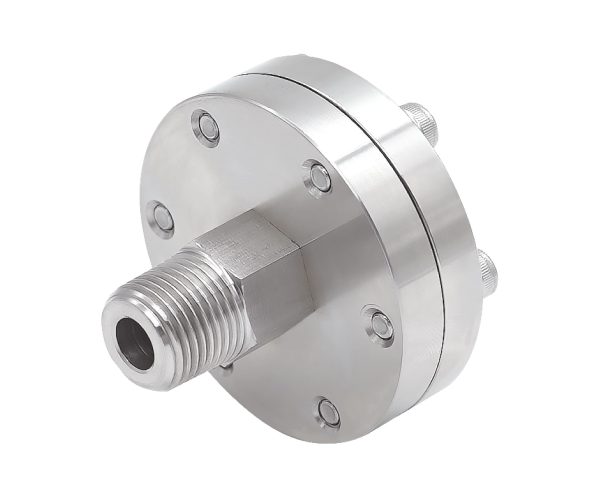

Threaded Connection, Screwed
Model: DIT-S
- Suitable for measuring corrosive or crystalline media
- The diaphragm can be removed for cleaning when blocked with fluid
- Mostly used in chemical processing and pharmaceutical industries
- Responsive after-sales service / Customizable /
- High quality / One-year warranty
- The image is for reference; the actual product willbe based on your custom specifications.
Description
The DIT-S threaded diaphragm seal is designed for measuring corrosive, crystallizing, or particle-laden media. Its removable diaphragm allows quick cleaning when clogged, making it ideal for chemical processing, pharmaceutical equipment, and pipelines carrying viscous or solid-containing fluids. Available in sizes from 70 to 160 mm with male, female, and union-nut threaded connections, it can be built from 304/316L stainless steel, Hastelloy, titanium, tantalum, Monel, and other corrosion-resistant materials. Compatible with both pressure gauges and transmitters, the DIT-S is a durable and easy-maintenance solution for demanding industrial applications.
Specifications
| Diameter | 70 mm, 90 mm, 97 mm, 130 mm, 160 mm |
|---|---|
| Process connection | Male, female, union nut and loose threaded 1/4, 3/8, 1/2, 3/4, 1 PT, G, NPT, M |
| Instrument connection | 1/4、3/8、1/2 PT, G, NPT, M |
| Scale ranges | 70 mm Pressure Gauge: -1...5 bar, 0 ... 4 bar to 0 ... 60 bar Transmitter: -1...0.6 bar, 0 … 0.25 bar to 0 ... 60 bar 90 mm Pressure Gauge: -1 ... 3 bar, 0...2.5 bar to 0 ... 60 bar Transmitter: 0 … 0.01 bar to -1 ... 60 bar 97 mm Pressure Gauge: -1 ... 60 bar 130 mm Pressure Gauge: -1...1.5 bar, 0 ... 0.6 bar to 0 ... 40 bar Transmitter: -1...0.6 bar, 0 … 0.1 bar to 0 ... 40 bar 160 mm Pressure Gauge: -1...0.6 bar, 0 ... 0.6 bar to 0...25 bar Transmitter: -0.05 … 0.05 bar, 0 ... 25 bar or all other equivalent vacuum or combined pressure and vacuum ranges |
| Material | Upper body: 304 SS, 316 SS, 316L SS, Dual phase steel, Hastelloy C276, Titanium, Tantalum, Monel 400, Nickel 200 Lower body: 304 SS, 316 SS, 316L SS, Dual phase steel, Hastelloy C276, Titanium, Tantalum, Monel 400, Nickel 200 Diaphragm: 316L SS, PTFE, Hastelloy C276, Tantalum, Titanium, Monel 400, Nickel 200, Silicone, Viton, 316L+PTFE, 316L+PTFE Coating |
| Medium temperature | 0°C ... 80°C, 81°C ... 200°C, 201°C ... 400°C |
| Others | Welded with instrument, flush port, coating, lining |

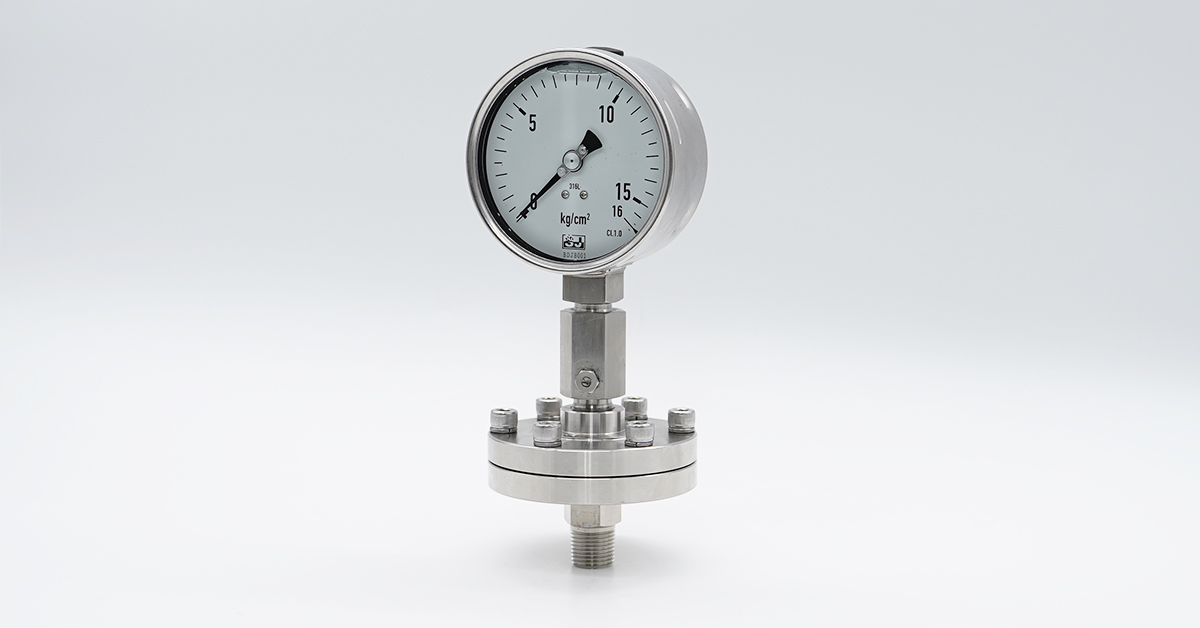

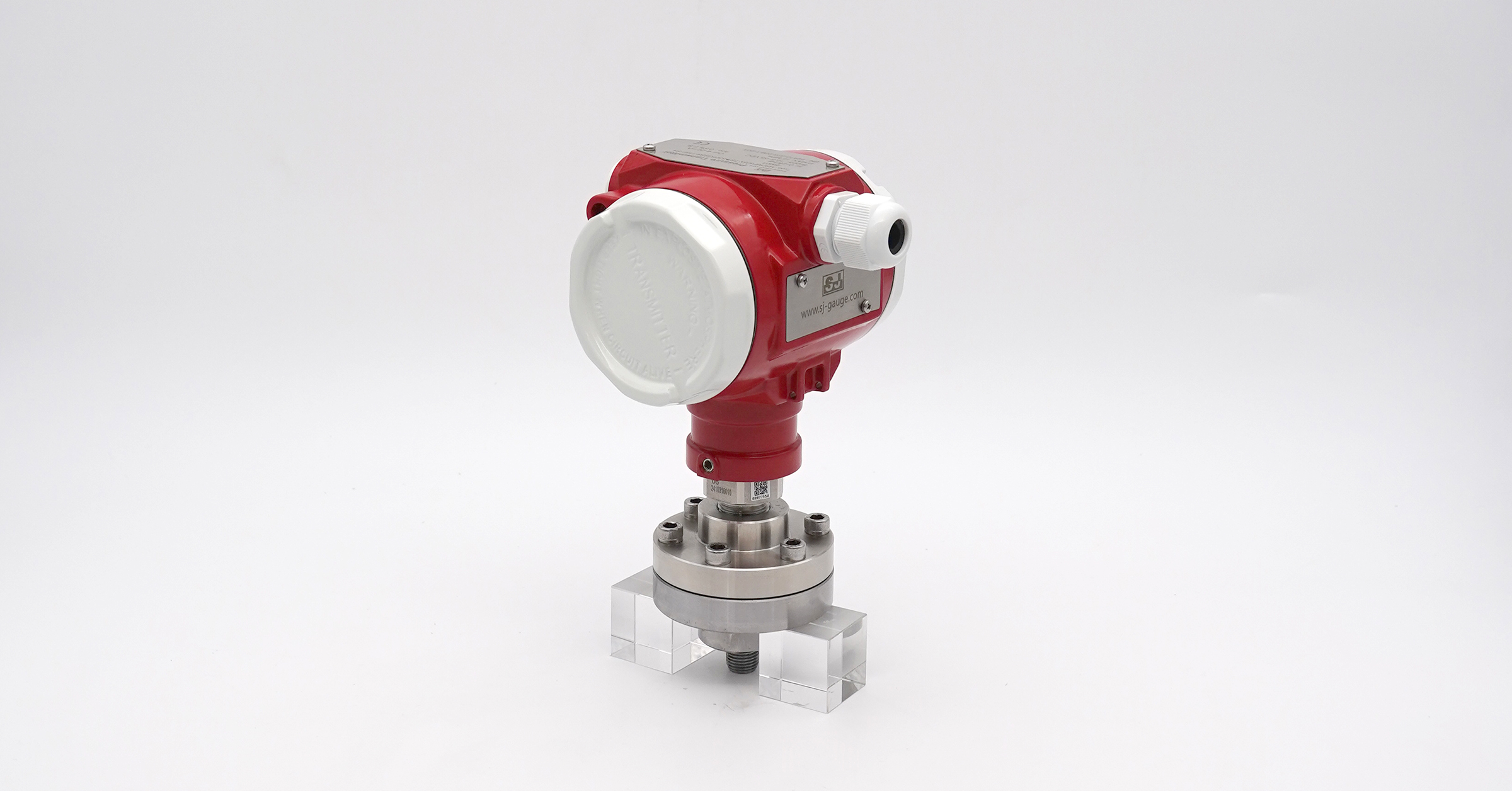

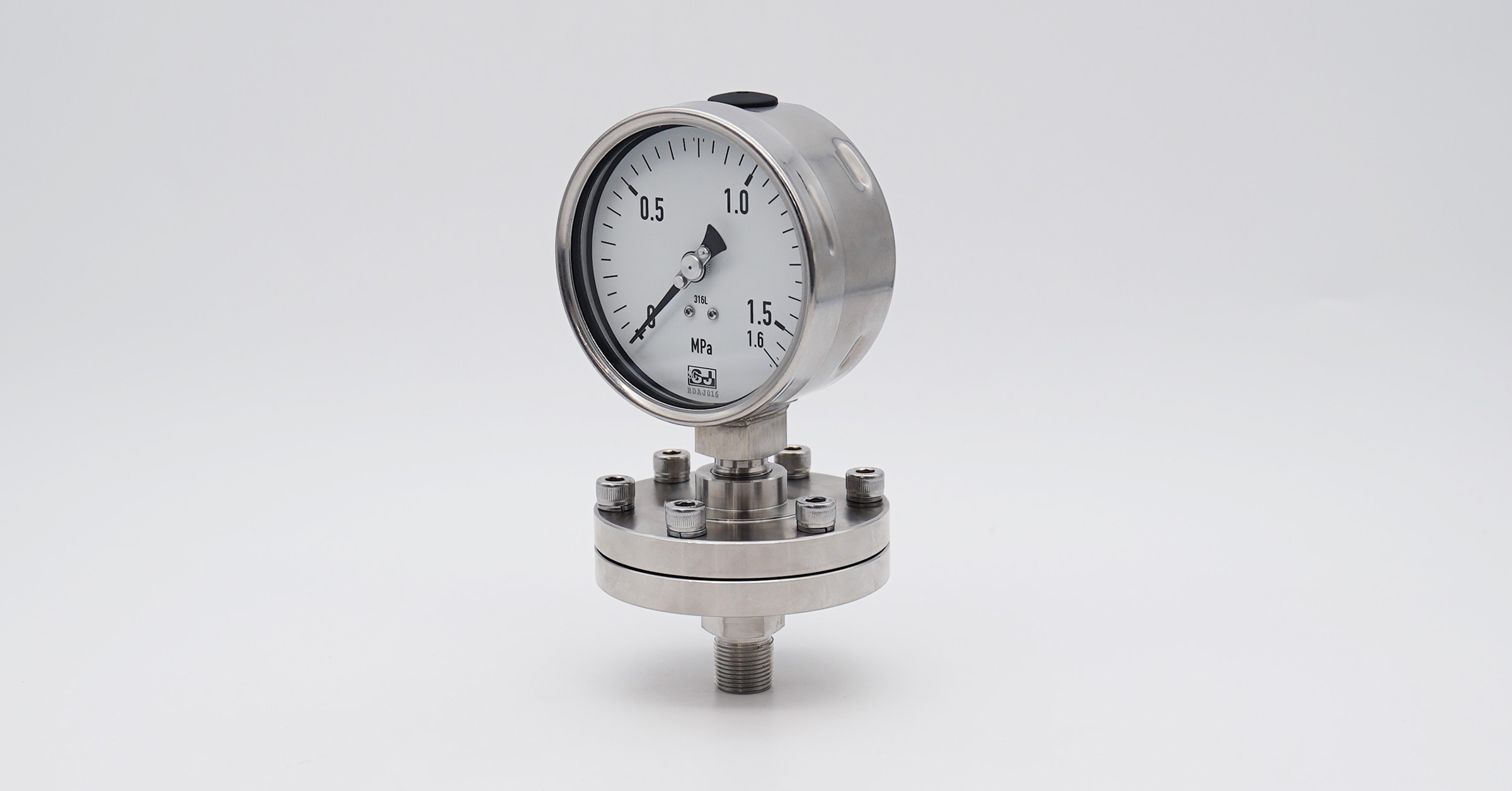

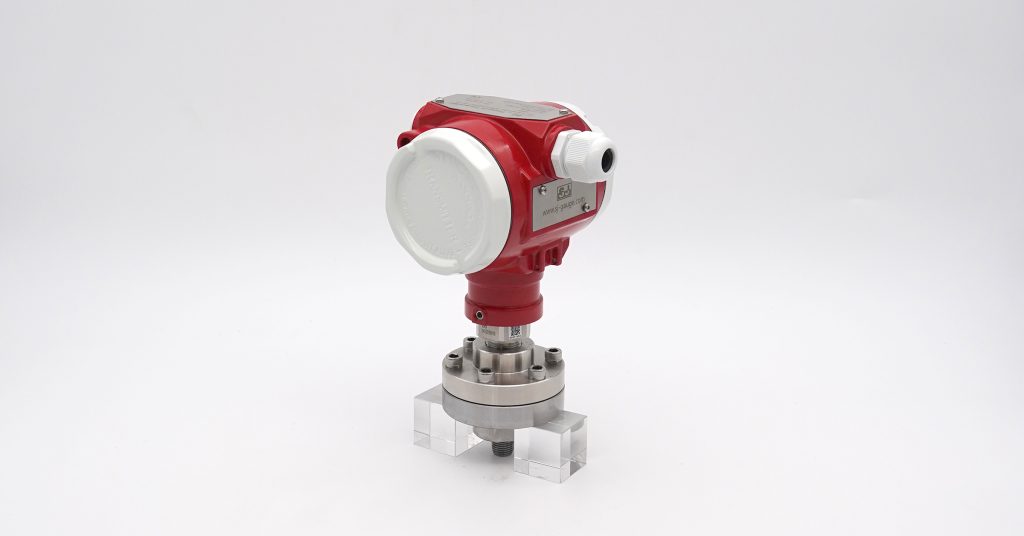

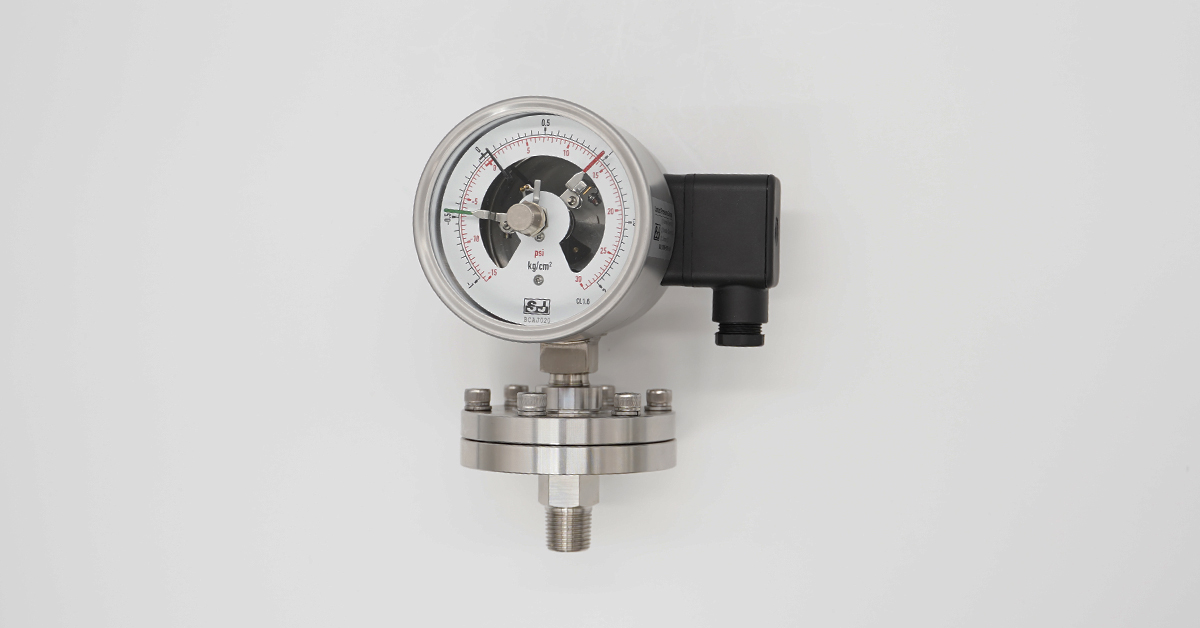

Product Images
