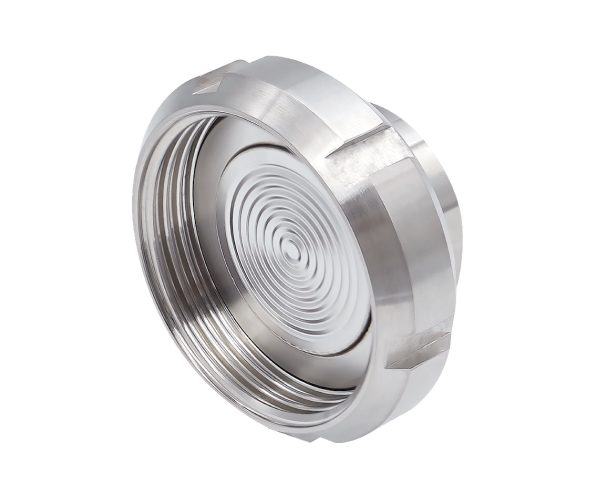

Sanitary Diaphragm Seals, DIN Standard
Model: DIS-DIN
- Flush welded diaphragm seal to assure the best hygiene and quick cleaning
- Especially designed for sanitary application such as dairy and breweries
- Responsive after-sales service / Customizable /
- High quality / One-year warranty
- The image is for reference; the actual product willbe based on your custom specifications.
Description

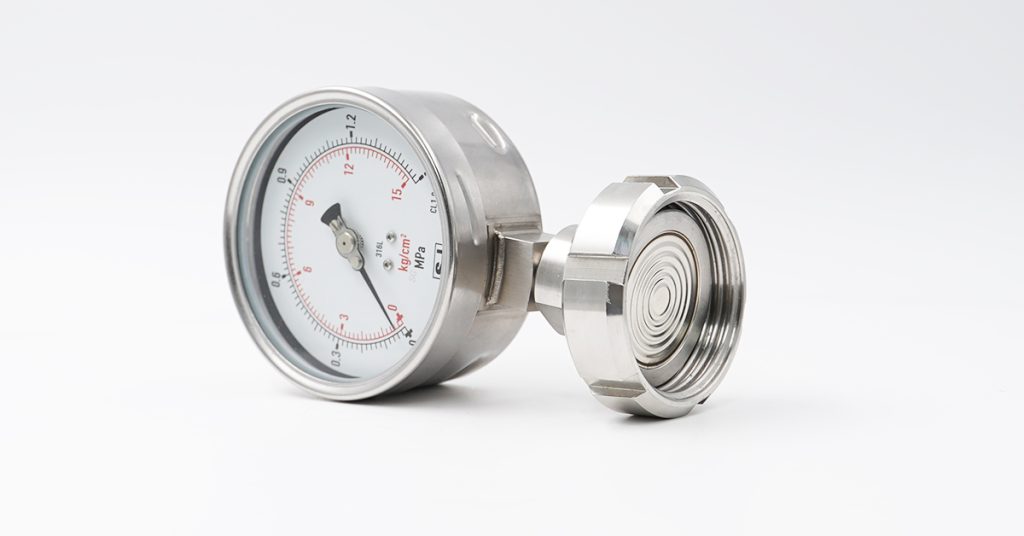

The DIS-DIN is a DIN-standard sanitary diaphragm seal featuring a flush welded diaphragm that ensures maximum hygiene, easy cleaning, and zero residue, making it ideal for dairy, brewery, food, and other sanitary-critical processes. Available in 1.5″ to 4″ sizes, it can be paired with pressure gauges or transmitters and supports a wide range of vacuum to 40 bar pressure ratings. Wetted parts can be selected from 304 SS, 316L SS, or corrosion-resistant alloys such as Hastelloy C276, Tantalum, Titanium, Monel 400, and Nickel 200, with optional PTFE or PFA coating. Suitable for medium temperatures from 0 to 400°C, the DIS-DIN offers both male and female DIN connections and integrates seamlessly with CIP/SIP sanitary piping systems.
Specifications
| Scale ranges | Pressure gauge: 1.5": -1 ... 5 bar, 0 ... 6 bar to 0 ... 40 bar 2", 2.5": -1 ... 3 bar, 0 ... 4 bar to 0 ...25 bar 3", 4": -1 ... 1.5 bar, 0 ... 1.6 bar to 0 ... 16 bar Transmitter: 1.5": -1 ... 0 bar, 0 ... 0.3 bar to 0 ... 40 bar 2"、2.5": -1 ... 0.6 bar, 0 ... 0.1 bar to 0 ... 25 bar 3"、4": -1 ... 0.6 bar, 0 ... 0.1 bar to 0 ... 16 bar or all other equivalent vacuum or combined pressure and vacuum ranges |
|---|---|
| Process connection | Female, male 1.5", 2", 2.5", 3", 4" |
| Instrument connection | 1/4, 3/8, 1/2 PT, G, NPT, M |
| Material | Body: 304 SS, 316L SS, Hastelloy C276, Monel 400, Tantalum, Titanium, Monel 400, Nickel 200 Diaphragm: 316L SS, Hastelloy C276, Tantalum, Titanium, Monel 400, Nickel 200 |
| Medium temperature | 0°C ... 80°C, 81°C ... 200°C, 201°C ... 400°C |
| Others | Welded with instrument, coating (PTFE or PFA) |
