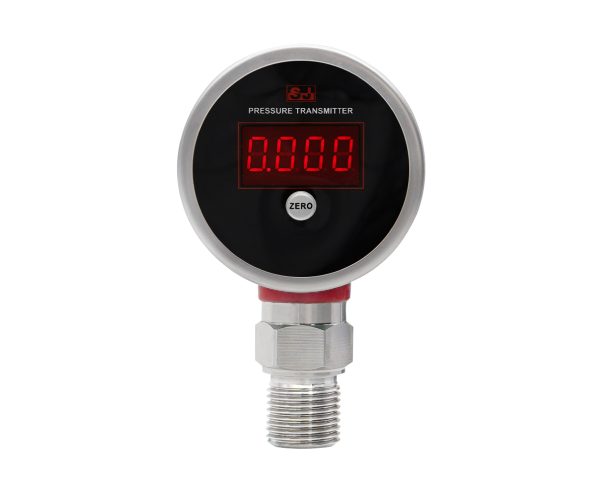

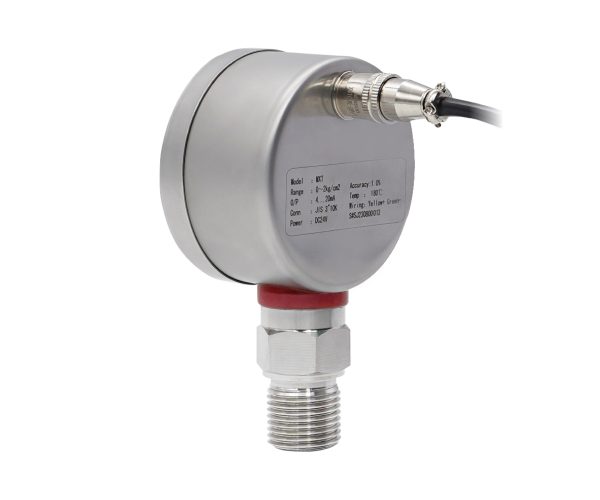

Digital Pressure Gauge, Display and Output Signal
Model: MXT
- 4-20mA signal output for remote monitoring
- Digital display which allows local observation at the same time
- LED digital panel with high brightness and a wide viewing angle
- Responsive after-sales service / Customizable /
- High quality / One-year warranty
- The image is for reference; the actual product willbe based on your custom specifications.
Description
The MXT is a digital pressure gauge featuring a high-brightness LED display and a 4–20mA output, providing both local pressure indication and remote monitoring capability. Covering pressure ranges from 5 kPa to 100 MPa with accuracy up to ±0.25% F.S., it is built with 304/316 stainless-steel wetted parts and a compact 2.5″ housing suitable for installations with limited space. Powered by DC16–32V, the device offers a fast 30 Hz data acquisition rate and a display update rate of ≥5 Hz for stable performance. A front ZERO key allows easy calibration, while the 2-pin aviation connector and IP40 protection make it ideal for industrial control systems, pressure monitoring applications, and automation environments requiring analog signal output.
Specifications
| Connection location | Bottom mount |
|---|---|
| Electrical connection | 2P aviation plug |
| Nominal size | 2.5" |
| Scale ranges | 0 ... 5 kPa to 0 ... 100 MPa, or other equivalent units of pressure, vacuum or compound |
| Pressure units | The unit can be specified before shipment. If unit conversion is required, it must be reset at the factory. |
| Accuracy | ±1.0% F.S., ±0.5% F.S., ±0.25% F.S |
| Process connection | 304 SS, 316 SS 1/4, 3/8, 1/2 PT, G, NPT |
| Case/Ring | 304 SS |
| Panel | PVC |
| Medium temperature | -20℃ ... 60℃ |
| Display | 4 digits |
| Response time | ≥ 5 Hz |
| Data acquisition rate | 30 Hz |
| Voltage supply | DC16-32V |
| Output signal | 4-20mA |
| Protection level | IP 40 |
Product Images
