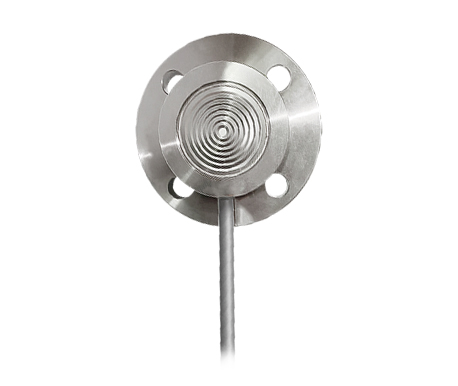

Flanged Connection, Cell (Pancake) Diaphragm
Model: DIF-C
- Instruments are connected via a side capillary connection and it is an ideal seal for transmitters or DP transmitters
- Be mounted between an open process flange and an optional cover flange
- Used for contaminated, solidifying, hot, or highly viscous media
- An alternative with high compatibility and corresponding specifications to the WIKA 990.28
- Responsive after-sales service / Customizable /
- High quality / One-year warranty
- The image is for reference; the actual product willbe based on your custom specifications.
Description
The DIF-C Cell (Pancake) Diaphragm Seal is designed for pressure transmitters and DP transmitters, using a side capillary connection for reliable signal transmission. It is installed between an open process flange and an optional cover flange, making it ideal for contaminated, solidifying, hot, or highly viscous media. With a wide range of materials available for both the body and diaphragm, the DIF-C provides excellent corrosion resistance and process durability.
It also serves as a highly compatible alternative to the WIKA 990.28, offering equivalent specifications for demanding industrial applications such as chemical processing, petrochemical systems, sludge tanks, and heavy-duty pipelines.
Specifications
| Type of process connection | ANSI/ASME B16.5, JIS, DIN 2527 |
|---|---|
| Nominal diameter | 1 1/2", 2", 3", 4" |
| Instrument connection | 1/4, 3/8, 1/2 PT, G, NPT, M |
| Scale ranges | Pressure gauge: 1 1/2": 0 ... 6 bar to 0 ... 40 bar 2": -1 ... 3 bar, 0 ... 4 bar to 0 ... 40 bar 3", 4": -1 ... 1.5 bar, 0 ... 0.6 bar to 0 ... 40 bar Transmitter: 1 1/2": 0 ... 2.5 bar to 0 ... 40 bar 2": -1 ... 0.6 bar, 0 ... 0.25 bar to 0 ... 40 bar 3", 4": -1 ... 0.6 bar, 0 ... 0.1 bar to 0 ... 40 bar Cell-type with an extended diaphragm Pressure gauge: 1 1/2": 0 ... 4 bar to 0 ... 40 bar 2": -1 ... 3 bar, 0 ... 4 bar to 0 ... 40 bar 3", 4": -1 ... 1.5 bar, 0 ... 0.6 bar to 0 ... 40 bar Transmitter: 1 1/2": 0 … 2.5 bar to 0 ... 40 bar 2": -1 ... 0.6 bar, 0...0.25 bar to 0 ... 40 bar 3", 4": -1 ... 0.6 bar, 0 ... 0.1 bar to 0 ... 40 bar or all other equivalent vacuum or combined pressure and vacuum ranges |
| Material | Body: 304 SS, 316 SS, 316L SS, dual phase steel, Hastelloy C276, Tantalum, Titanium, Monel 400, Nickel 200 Diaphragm: 316L SS, Hastelloy C276, Tantalum, Titanium, Monel 400, Nickel 200 |
| Medium temperature | 0℃ ... 80℃, 81℃ ... 200℃, 201℃ ... 400℃ |
| Others | Welded with instrument, coating (PTFE or PFA), capillary, cooling element, spacer |
