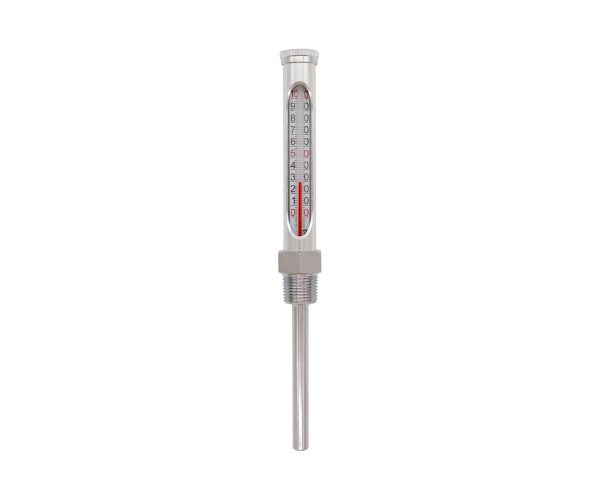

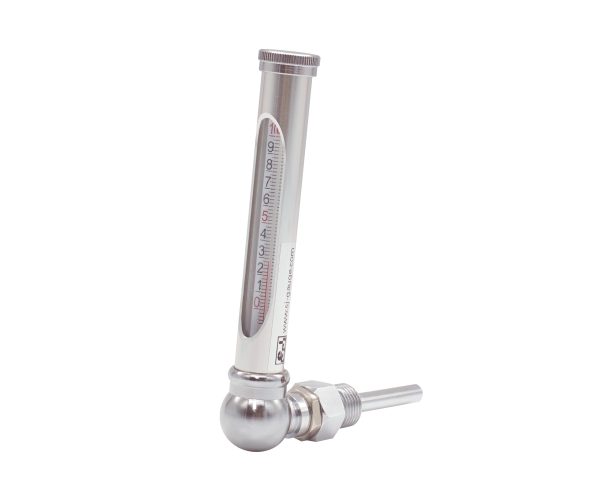

Glass Tube Thermometer with Metal Housing
Model: DET
- Industrial metal sleeve, sturdy and durable
- Suitable in boilers, air conditioners, diesel engines and other equipment
- Responsive after-sales service / Customizable /
- High quality / One-year warranty
- The image is for reference; the actual product willbe based on your custom specifications.
Description
The DET glass tube thermometer features a robust metal housing that protects the internal glass tube, ensuring durability in industrial environments. It offers multiple temperature ranges including 0–50°C, 0–100°C, and 0–200°C, with process connections available in copper alloy or stainless steel. Designed with bottom or back mount options, the DET is widely used in boilers, air conditioning systems, diesel engines, and general machinery, providing a simple, reliable solution for on-site temperature measurement.
Specifications
| Connection location | Bottom mount, back mount |
|---|---|
| Standard | 6" |
| Scale ranges | 0 ... 50°C, 0 ... 100°C, 0 ... 200°C |
| Process connection | Copper alloy, 304 SS 1/4, 3/8, 1/2 PT, G, NPT |
| Stem | Copper alloy, 304 SS Length: 100 mm (including thread) Diameter: 9.5 mm |
| Case/Ring | Chrome plated aluminum, 304 SS |
| Accessories (options) | Thermowell (chrome plated aluminum / 304 SS) |
Product Images
