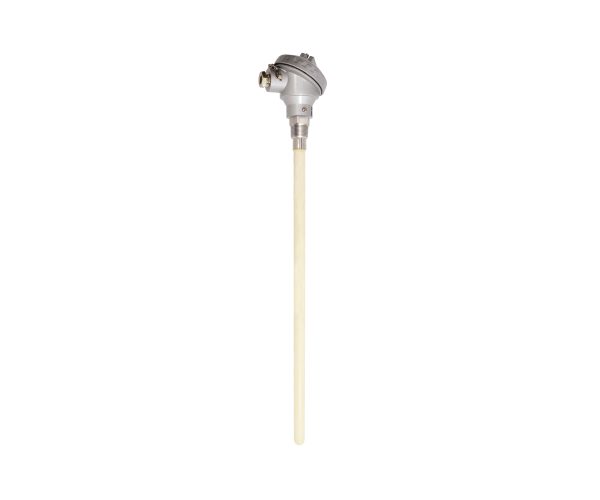

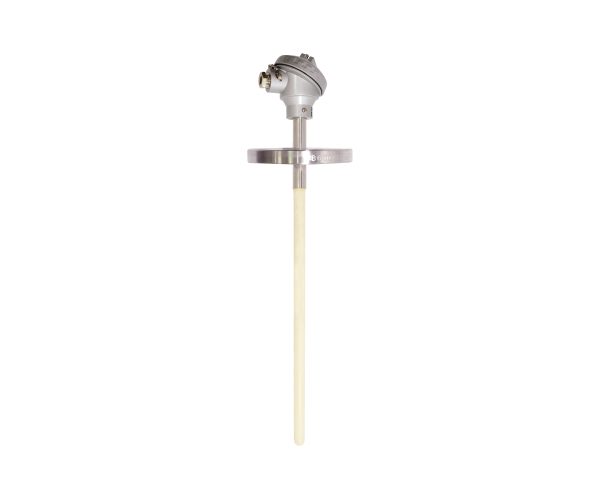

Thermocouple, High-Temperature Type
Model: 401-402-403-404
- Terminal head types are also used in everyday appliances like stoves, furnaces, and toasters
- Thermocouples are typically selected because of their low cost, high-temperature limits, wide temperature ranges, and durable nature
- Responsive after-sales service / Customizable /
- High quality / One-year warranty
- The image is for reference; the actual product willbe based on your custom specifications.
Description
The 40X series terminal head type thermocouple is designed with a spring-loaded structure to absorb thermal expansion stress and ensure stable, long-term temperature measurement. It is available in general, threaded, and flanged mounting types, and supports single or dual sensing elements. Tube diameters range from 6.0D to 17D, with customizable tube lengths and material options including Ceramic 610, Ceramic 710, and Inconel. The 40X series is widely used in boilers, furnaces, petrochemical processes, kilns, and other high-temperature industrial applications.
Specifications
| Type | 401_General type(without fitting), 402_Fitting type, 403_Flange type |
|---|---|
| Output signal | B type, R type, S type |
| Element/Quantity | Single-element, Dual-element |
| Junction box | KNC, KSC, KT, TN, TS |
| Thread | Nope, 1/4"PT, 1/2"PT, 3/4"PT, 1" PT or flange |
| Tube diameter | 6.0, 8.0, 10, 13, 15, 17D |
| Tube Length | 200mm~500mm can be customized |
| Tube diameter | 1M, 2M, 3M, 4M, 5M or customized |
| Wire material | PVC, cable, Teflon, fiberglass or customized |
| Material | Ceramic 610, ceramic 710, Inconel |
