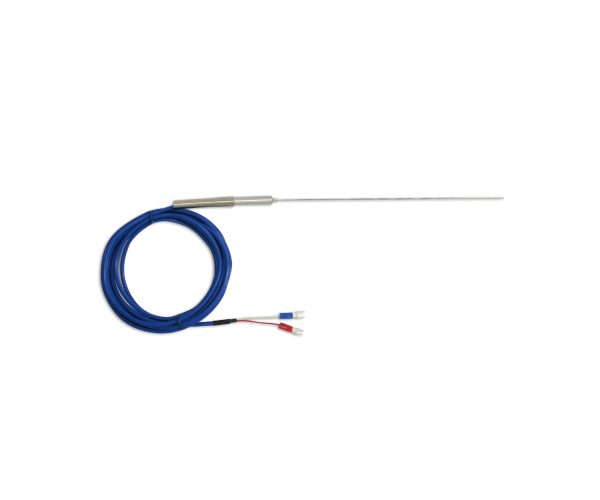

Thermocouple, Sheath Type
Model: 301-302-303
- Sheath thermocouple is used in cement, paper & pulp, oil/gas
- Thermocouples are typically selected because of their low cost, high-temperature limits, wide temperature ranges, and durable nature
- Responsive after-sales service / Customizable /
- High quality / One-year warranty
- The image is for reference; the actual product willbe based on your custom specifications.
Description
Type (301) and Socket Type (302).
Featuring a durable stainless-steel sheath, spring strain relief, and heat-resistant wires, the 30X series ensures stable temperature measurement in demanding high-temperature applications.
It is widely used in plastic injection molding, die heating, metal processing, packaging machinery, and other industrial temperature-control systems.
The series supports multiple thermocouple types (K, J, E, T), various sheath diameters, insertion lengths, wire materials (PVC, Teflon, glass fiber, Inconel), and customizable threads or connector options, providing excellent flexibility for different installation requirements.
Specifications
| Type | 301_Lead wire type, 302_Socket type |
|---|---|
| Output signal | K type, T type, J type, E type |
| Element/Quantity | Single-element, Dual-element |
| Tube diameter | 1.0, 1.6, 2.3, 3.2, 4.8, 6.4, 8.0D |
| Insertion length | 50~150mm or customize |
| Thread | 1/4"FPT, 3/8" PT, 1/2" PT, 1/8"FPT, 1/4" PT, connection tube or customize |
| Wire length | 1m~4m |
| Wire material | PVC, cable, Teflon, glass fiber |
| Material | SUS316, Inconel |
