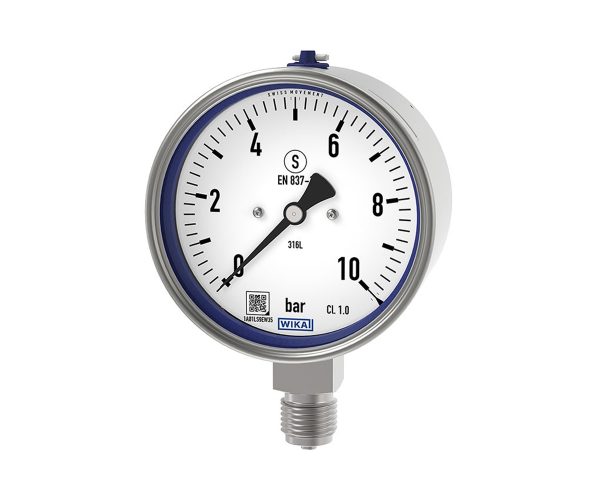

Bourdon tube pressure gauge, stainless steel
- Safety version with solid baffle wall (Solidfront) designed in compliance with the requirements of EN 837-1 and ASME B40.100
- Excellent load-cycle stability and shock resistance
- With case filling (model 233.30) for applications with high dynamic pressure loads and vibrations
- EMICOgauge version, to avoid fugitive emissions
- QR code on dial links to instrument-specific information
- Responsive after-sales service / Customizable /
- High quality / One-year warranty
- The image is for reference; the actual product willbe based on your custom specifications.
Description
This high-quality Bourdon tube pressure gauge has been designed especially for increased safety requirements within the process industry. The use of high-quality stainless steel materials and the robust design are geared to applications in the chemical and process engineering industries. Thus the instrument is suitable for liquid and gaseous media, also in aggressive environments. Scale ranges of 0 … 0.6 to 0 … 1,600 bar [0 … 10 to 0 … 20,000 psi] ensure the measuring ranges required for a wide variety of applications.

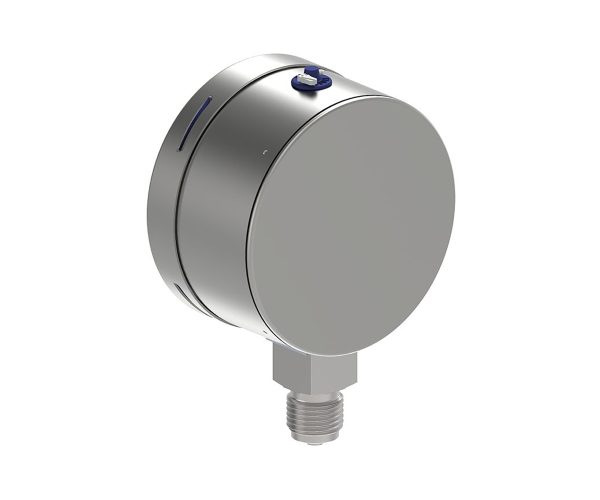

WIKA manufactures and qualifies the pressure gauge in accordance with the standards EN 837-1 and ASME B40.100. This safety version is made up of a non-splintering window, a solid baffle wall between measuring system and dial and a blow-out back. In the event of a failure, the operator is protected at the front side, as media or components can only be ejected via the back of the case. The QR code on the dial allows instrument-specific information such as the serial number, the order number, certificates and other product data to be retrieved from the internet easily and in the long term.
Specifications
| Connection location | ■Lower mount (radial) ■Lower back mount 3) |
|---|---|
| Nominal size | ■Ø 63 mm [2 ½"] ■Ø 100 mm [4"] ■Ø 160 mm [6"] |
| Scale ranges | 0 … 0.6 to 0 … 1,600 bar [0 ... 10 to 0 ... 20,000 psi] ensure the measuring ranges required for a wide variety of applications. |
| Accuracy | NS 63 [2 ½"] |
| Process connection | Standard: ■EN 837-1 ■ISO 7 ■ANSI/B1.20.1 Size: EN 837-1: ■G ⅛ B, male thread ■G ¼ B, male thread ■G ½ B, male thread ■M12 x 1.5, male thread ■M20 x 1.5, male thread ISO 7: ■R ¼, male thread ■R ½, male thread ANSI/B1.20.1: ■¼ NPT, male thread ■½ NPT, male thread Restrictor: ■Without ■∅ 0.6 mm [0.024"], stainless steel ■∅ 0.3 mm [0.012"], stainless steel Material (wetted): ■Process connection: Stainless steel 1.4404 (316L) ■Bourdon tube: Stainless steel 1.4404 (316L) |
| Case | ■Stainless steel 1.4301 (304) ■Stainless steel 1.4571 (316 Ti) |
| Window | Laminated safety glass (NS 63 [2 ½"]: Polycarbonate) |
| Dial | Scale colour: Black Material: Aluminium Customer-specific version: ■Without ■With temperature scale for refrigerant, e.g. for NH3: R 717 Other scales or customer-specific dials, e.g. with red mark, circular arcs or circular sectors, on request |
| Pointer | Instrument pointer: Aluminium, black Mark pointer/drag pointer: ■Without ■Red mark pointer on dial, fixed ■Red mark pointer on window, adjustable ■Mark pointer on bayonet ring, adjustable ■Red drag pointer on window, adjustable |
| Movement | ■Without ■Panel mounting flange, stainless steel ■Panel mounting flange, polished stainless steel ■Surface mounting lugs on the back, stainless steel |
| Filling liquid | ■Without ■Glycerine ■Glycerine-water mixture for NS 100 [4"] and 160 [6"] with scale range ≤ 0 ... 2.5 bar [≤ 0 ... 40 psi] or for NS 63 [2 ½"] with scale range ≤ 0 ... 4 bar [≤ 0 ... 60 psi] ■Silicone oil |
| Ambient temperature | ■Unfilled instruments or with silicone oil filling: -40 ... +60 °C [-40 ... +140 °F] ■Instruments with glycerine filling: -20 ... +60 °C [-4 ... +140 °F] |
| Medium temperature | ■Unfilled instruments: -40 ... +200 °C [-40 ... +392 °F] ■Instruments with glycerine filling: -20 ... +100 °C [-4 ... +212 °F] ■Instruments with silicone oil filling: -40 ... +100 °C [-40 ... +212 °F] |
| IP rating | ■IP65 ■IP66 ■IP54 (for lower back mount) |
