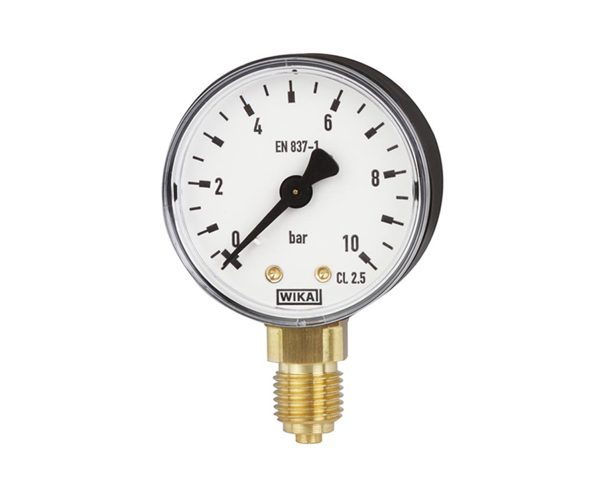

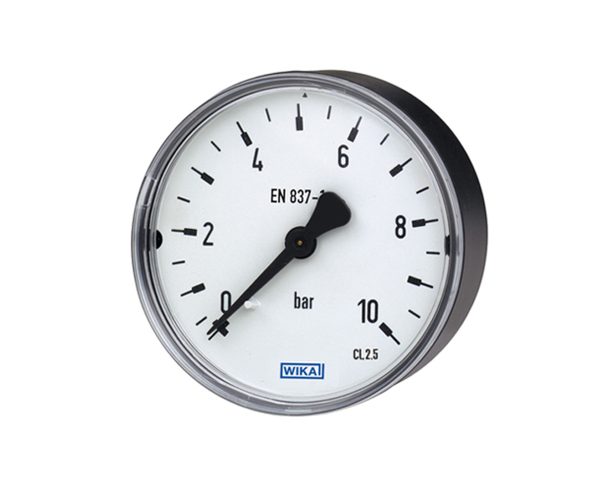

Bourdon tube pressure gauge
Model: 111.10, 111.12
- Copper alloy wetted parts
- ABS plastic or painted steel case
- Lower mount (LM) process connection
- Responsive after-sales service / Customizable /
- High quality / One-year warranty
- The image is for reference; the actual product willbe based on your custom specifications.
Description
The Model 111.10 pressure gauge is a standard mechanical gauge based on a proven copper-alloy Bourdon tube measuring system, offering reliable performance and cost-effective operation. It is designed for gaseous and liquid media that are not highly viscous, crystallizing, or aggressive to copper alloy materials. Typical applications include pneumatics, HVAC systems, and medical engineering. Compliant with EN 837-1 and ASME B40.100 standards, the 111.10 is available in a wide range of nominal sizes and pressure ranges up to 400 bar. With options for bottom or back connection mounting, it provides excellent versatility and is a widely used general-purpose pressure gauge in industrial applications.
Specifications
| Connection location | Bottom mount, back mount |
|---|---|
| Nominal size | 1.5", 2", 2.5", 3", 4", 6" |
| Scale ranges | 0 ... 0.6 kg/cm² to 1600kg/cm², or other equivalent units of pressure, vacuum or compound |
| Accuracy | + 3/2/3% of span (ASME B40.100 Grade B) |
| Process connection | Copper alloy 1/8, 1/4, 1/2 PT, G, NPT |
| Case | Black plastic |
| Window | Crystal-clear plastic snap-fit |
| Dial | White plastic with stop pin (1½”, 2”, 2½”) White aluminum with stop pin (4”) Black or black and red lettering |
| Pointer | Black ABS plastic (1½”, 2”, 2½” LM) Black aluminum (4” LM) |
| Movement | Copper alloy |
| Ambient temperature | -20°C ... 60°C |
| Medium temperature | -20°C … 60°C |
| IP rating | IP33 IP44 |
