Thermocouple, Lead wire type
Model: 101, 102, 103
- Lead-wire thermocouples are used in many industrial, scientific, and OEM applications
- Thermocouples are typically selected because of their low cost, high-temperature limits, wide temperature ranges, and durable nature
- Responsive after-sales service / Customizable /
- High quality / One-year warranty
- The image is for reference; the actual product willbe based on your custom specifications.
Description

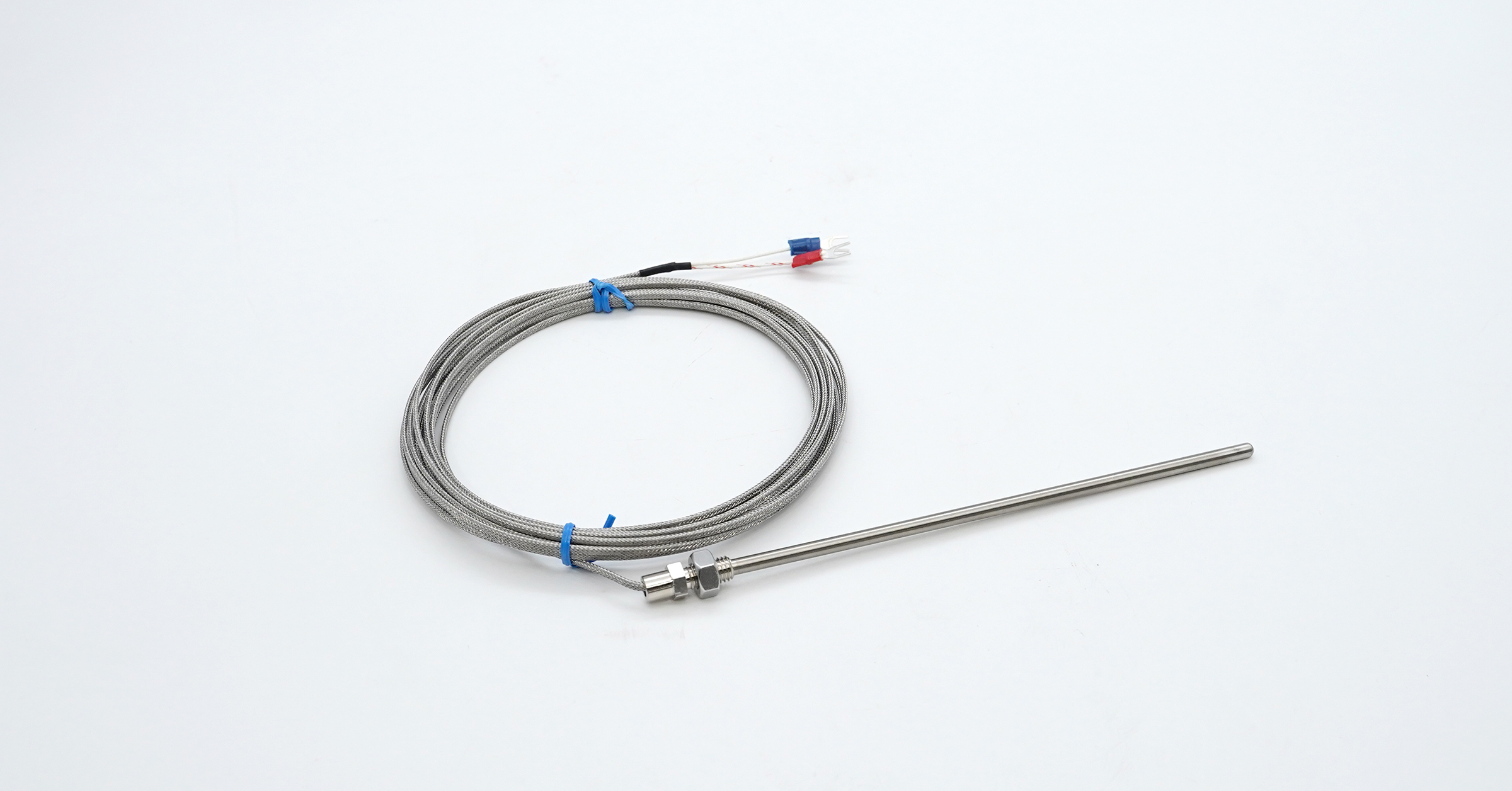

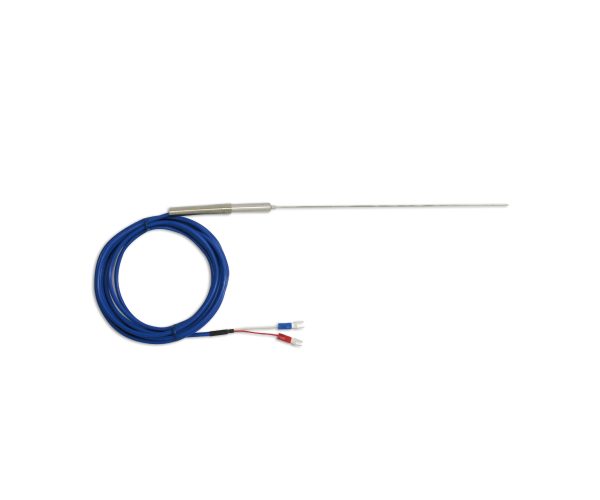

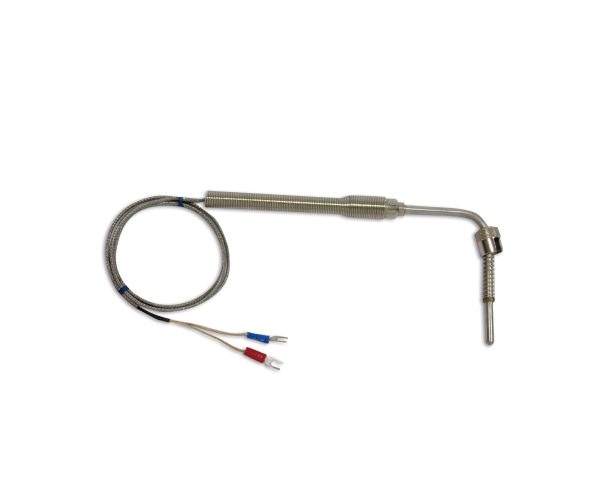

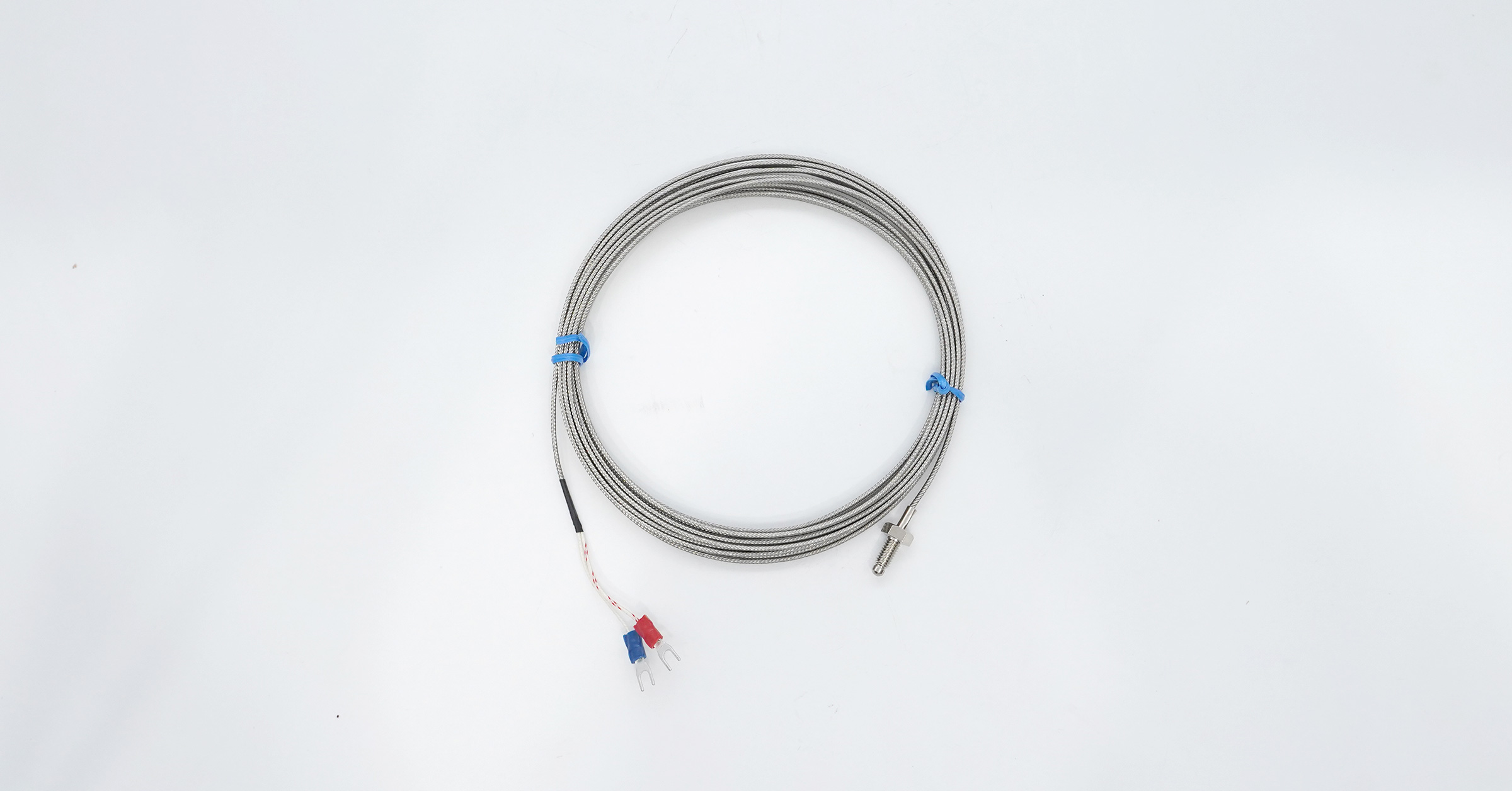

The 10X Series lead wire type thermocouple probes include 101 (screw-in type), 102 (insertion type), and 103 (bayonet type) to suit different installation requirements. Each probe features a stainless-steel sheath, protective spring sleeve, and high-temperature lead wires, ensuring excellent durability, flexibility, and mechanical protection. They are widely used in plastic molding machines, heating molds, ovens, packaging equipment, and various industrial heating processes. All specifications—such as tube diameter, length, thread size, and wire material—can be customized. Supporting multiple thermocouple types (K, J, E, T), the 10X series provides a versatile and reliable temperature-sensing solution for industrial applications.
Specifications
| Type | 101_Screw-in type, 102_Inseration type, 103_Bayonet type |
|---|---|
| Output signal | K type, T type, J type, E type |
| Element/Quantity | Single-element, Dual-element |
| Tube diameter | 3.2D, 4.0D, 4.8D, 5.0D, 6.0D, 6.4D, 8.0D, 9.6D |
| Insertion length | 50~200mm or customize |
| Thread | 1/4" 20UNC, M6x1, M8x1.25, M10x1.5, M12x1.5, 5/16" 18UNC, 5/16" 24UNF, 1/4"PT, 3/8" PT, 1/2" PT, 3/4" PT |
| Connection | None, heat shrink tubing, spring, 8 ∅ connecting tubes + spring, 12 ∅ connecting tubes + spring, 12.5 ∅ (single) buckle, 12.5 ∅ (double) buckle, 15 ∅ (double) buckle |
| Wire length | 1M, 2M, 3M, 4M, 5M or custom |
| Wire material | PVC, cable, Teflon, fiberglass or custom |
| Material | SUS304, SUS316, titanium tube, Teflon |
Product Images
